METERS/IGNITION SWITCH
KZ900A5 1977 USA CANADA

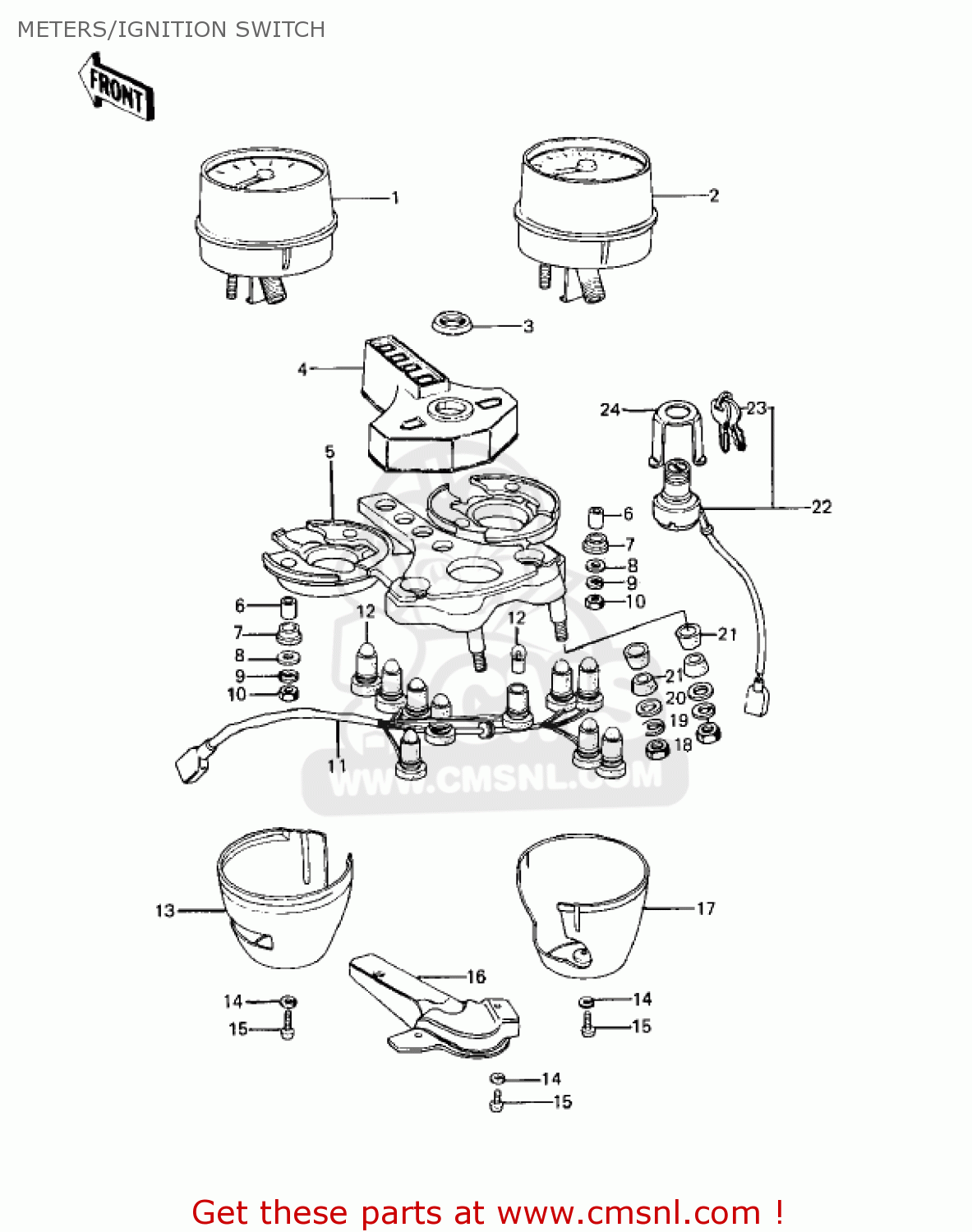

Meters/ignition switch diagram KZ900A5 1977 USA CANADA
METERS/IGNITION SWITCH KZ900A5 1977 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
250051031
ref: 1
SPEEDOMETER ASSY,MPH
€ 502.00
1
25006056
ref: 1
CANADA
SPEEDOMETER ASSY,KPH
€ 760.00
2
250151010
ref: 2
TACHOMETER
€ 465.50
3
27007004
ref: 3
NUT,IGNITION SWITCH
€ 8.00
4
25023015
ref: 4
COVER-METER CASE
€ 98.00
5
25008045
ref: 5
BRACKET,SPEEDOMETER
€ 156.00
6
92027211
ref: 6
COLLAR,5.6X8X13.8
€ 8.50
7
92075172
ref: 7
DAMPER
€ 12.50
8
92022241
ref: 8
WASHER,5.2X15X1.6
€ 2.50
9
461F0500
ref: 9
WASHER-SPRING,5MM
€ 0.50
10
312B0500
ref: 10
NUT-HEX,5MM
€ 0.50
11
25011049
ref: 11
SOCKET,SPEEDOMETER
€ 155.00
12
92069018
ref: 12
BULB 12V 3W
€ 4.00
13
25012010
ref: 13
COVER,SPEEDOMETER
€ 89.50
14
461F0300
ref: 14
WASHER-SPRING,3MM
€ 0.50
15
220B0308
ref: 15
SCREW-PAN-CROS
€ 0.50
16
25024006
ref: 16
COVER,METER BRACKET
€ 14.50
17
25012011
ref: 17
COVER,TACHOMETER
€ 70.50
18
311B0800
ref: 18
NUT,8MM
€ 0.50
19
461F0800
ref: 19
WASHER-SPRING,8MM
€ 0.50
20
411B0800
ref: 20
WASHER-PLAIN,8MM
€ 0.50
21
92075080
ref: 21
DAMPER
€ 5.50
22
27005086
ref: 22
SWITCH ASSY,IGNITION
€ 176.00
23
2700806951
ref: 23
KEY SET,#751
€ 34.50
23
2700806952
ref: 23
KEY SET,#752
€ 31.00
23
2700806953
ref: 23
KEY SET,#753
€ 34.50
23
2700806954
ref: 23
KEY SET,#754
€ 40.50
23
2700806955
ref: 23
KEY SET,#755
€ 18.00
23
2700806956
ref: 23
KEY SET,#756
€ 31.00
23
2700806957
ref: 23
KEY SET,#757
€ 31.00
23
2700806958
ref: 23
KEY SET,#758
€ 15.50
23
2700806959
ref: 23
KEY SET,#759
€ 34.50
23
2700806960
ref: 23
KEY SET,#760
€ 18.00
23
2700806986
ref: 23
KEY SET,#786
€ 31.00
23
2700806987
ref: 23
KEY SET,#787
€ 31.00
23
2700806988
ref: 23
KEY SET,#788
€ 18.00
23
2700806989
ref: 23
KEY SET,789
€ 31.00
23
2700806990
ref: 23
KEY SET,#790
€ 31.00
23
2700806991
ref: 23
KEY SET,#791
€ 31.00
23
2700806992
ref: 23
KEY SET,#792
€ 18.00
23
2700806993
ref: 23
KEY SET,#793
€ 31.00
23
2700806994
ref: 23
KEY SET,#794
€ 34.50
23
2700806995
ref: 23
KEY SET,#795
€ 34.50
23
270081013
ref: 23
KEY-LOCK,BLANK
€ 12.00
24
27019003
ref: 24
HOLDER,IGNITION SWITC
€ 10.50
