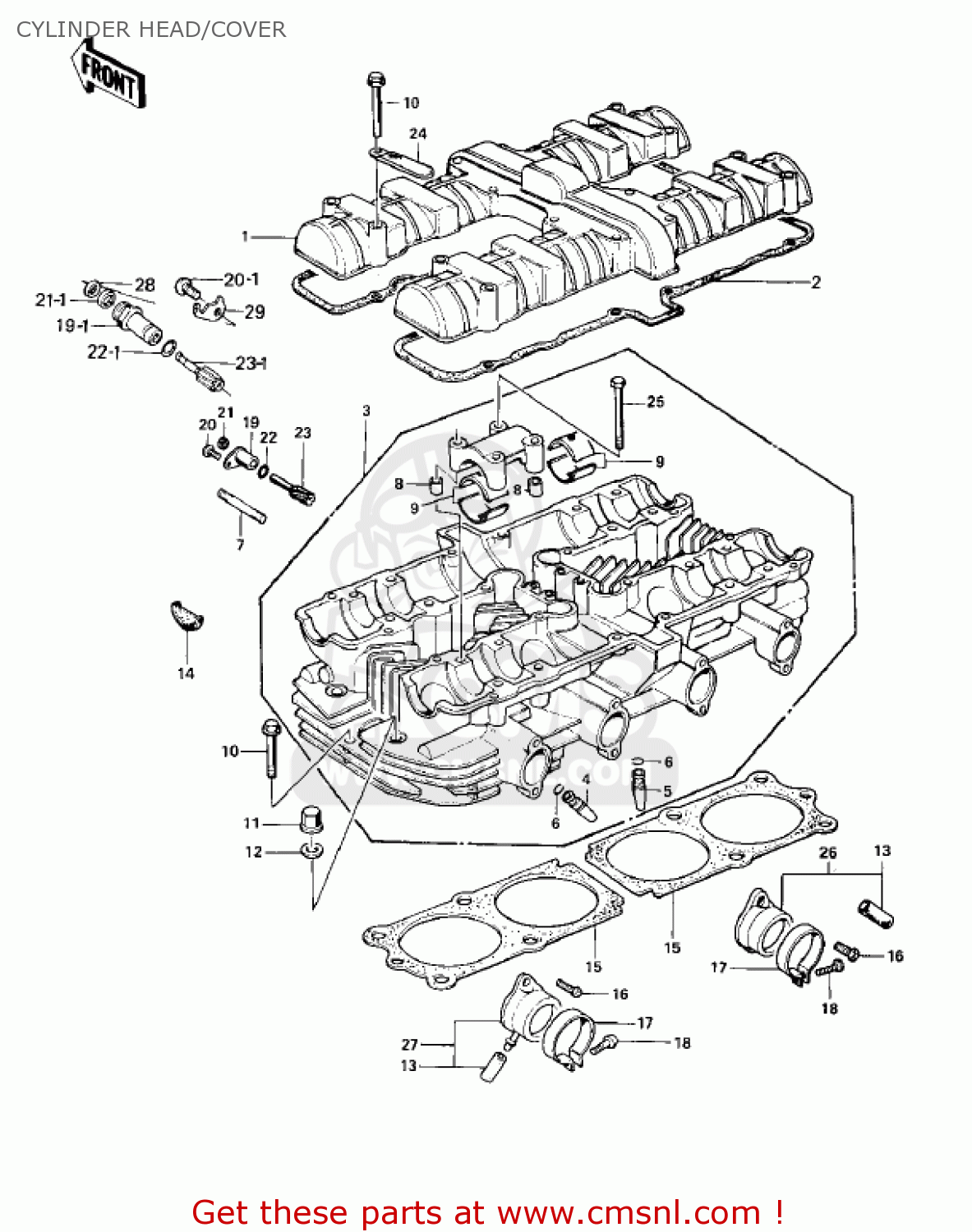

CYLINDER HEAD/COVER

ref

part #

description

quantity

1

110220122H
ref: 1

COVER, CYLINDER HEAD

€ 234.00

2

11023006
ref: 2

GASKET-CYL HEAD COVER (MCA)

€ 99.50

3

110020162H
ref: 3

CYLINDER HEAD,BARREL

€ 1,059.00

4

12013001
ref: 4

GUIDE-VALVE,INTAKE

€ 54.00

5

12013002
ref: 5

GUIDE-VALVE,EXHAUST

€ 54.00

6

92036023
ref: 6

CIRCLIP,VALVE GUIDE

€ 0.50

7

92004049
ref: 7

STUD,6X46

€ 5.50

8

92042007
ref: 8

PIN-DOWEL

€ 4.00

9

13034030
ref: 9

BUSHING,CAMSHAFT

€ 15.00

10

92003092
ref: 10

BOLT-HEX HEAD,6X45

€ 4.50

11

92015076
ref: 11

NUT,FLANGED CAP,10MM

€ 9.00

12

92022215
ref: 12

WASHER,10.5X22X1.6

€ 6.00

13

92068006
ref: 13

RUBBER PLUG

€ 2.50

14

92066017
ref: 14

PLUG,CAMSHAFT,14X7

€ 15.00

15

11004066
ref: 15

GASKET,CYLINDER HEAD (MCA)

€ 111.00

16

220B0618
ref: 16

SCREW-PAN HEAD,6X18

€ 2.50

17

92037077
ref: 17

CLAMP,HOLDER

€ 7.00

18

220B0520
ref: 18

SCREW-PAN-CROS

€ 0.50

19

920875001
ref: 19
-E/NO. 135980

GUIDE,TACHOMETER GEAR

€ 12.00

19-1

92087010
ref: 19-1
E/NO. 135981-

GUIDE,TACHOMETER GEAR

€ 16.50

20

220B0612
ref: 20
-E/NO. 135980

SCREW-PAN HEAD,6X12

€ 1.00

20-1

220B0610
ref: 20-1
E/NO. 135981-

SCREW-PAN HEAD,6X10

€ 2.00

21

92050075
ref: 21

OIL SEAL,TACHOMETER

€ 7.50

21-1

92050075
ref: 21-1

OIL SEAL,TACHOMETER

€ 7.50

22

670B1510
ref: 22

O RING,9.8X1.9

€ 2.50

22-1

920551149
ref: 22-1

RING-O,10MM

€ 4.00

23

13223011
ref: 23

GEAR,TACHOMETER, 10T

€ 63.00

23-1

13223011
ref: 23-1
E/NO. 125817-

GEAR,TACHOMETER, 10T

€ 63.00

24

21126008
ref: 24

CLAMP,WIRING HARNESS

€ 3.00

25

92003092
ref: 25

BOLT-HEX HEAD,6X45

€ 4.50

26

16065028
ref: 26

HOLDER,CARBURETOR,RH

€ 67.00

27

16065029
ref: 27

HOLDER,CARBURETOR,LH

€ 67.00

28

92065103
ref: 28
E/NO. 135981-

GASKET,TACHOMETER GER (NAS)

€ 2.50

29

13169015
ref: 29
USE FOR 92087-010

PLATE

€ 2.50
