TRANSMISSION
KZ750R1 GPZ 1982 USA CANADA

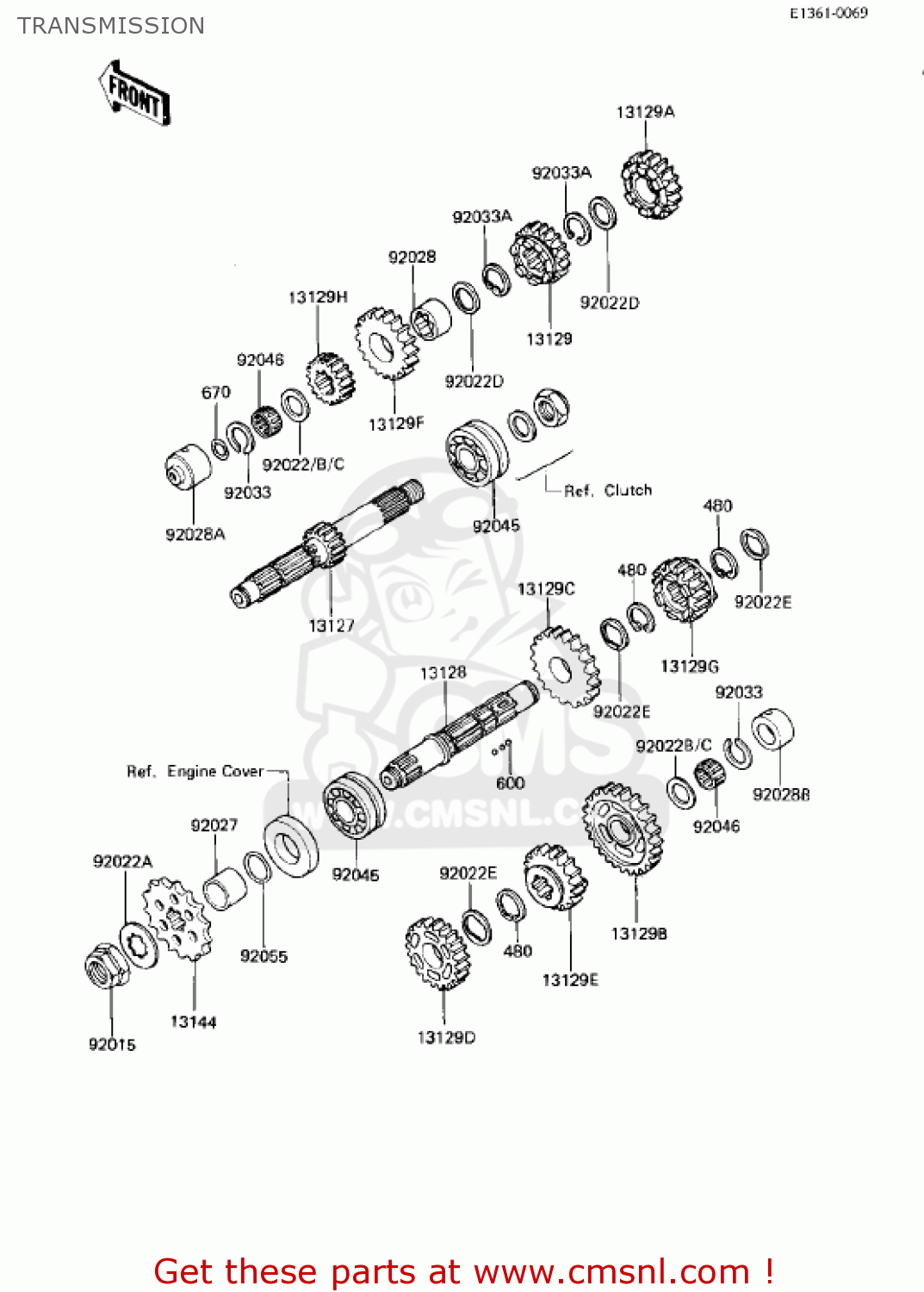

Transmission diagram KZ750R1 GPZ 1982 USA CANADA
TRANSMISSION KZ750R1 GPZ 1982 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
13127
131271018
ref: 13127
SHAFT-TRANSMISSION IN
€ 232.50
13128
131281012
ref: 13128
SHAFT,OUTPUT
€ 136.00
13129
131291032
ref: 13129
3RD GEAR,DRIVE SHAFT
€ 90.00
13129A
131291044
ref: 13129A
GEAR,INPUT 4TH,25T
€ 87.50
13129B
131291046
ref: 13129B
GEAR,OUTPUT LOW,35T
€ 105.00
13129C
131291047
ref: 13129C
2ND GEAR,OUTPUT SHAFT
€ 107.00
13129D
131291048
ref: 13129D
3RD GEAR,OUTPUT SHAFT
€ 100.00
13129E
131291049
ref: 13129E
4TH GEAR,OUTPUT SHAFT
€ 107.00
13129F
131291200
ref: 13129F
TOP GEAR,DRIVE 24T
€ 69.00
13129G
131291201
ref: 13129G
GEAR,OUTPUT TOP,21T
€ 142.50
13129H
13130041
ref: 13129H
2ND GEAR,DRIVE
€ 69.50
13144
131441033
ref: 13144
SPROCKET-OUTPUT,13T
€ 27.00
92015
920151254
ref: 92015
NUT,20MM
€ 10.50
92022
920221026
ref: 92022
WASHER,20.3X30X0.7,ST
€ 4.00
92022A
922001065
ref: 92022A
WASHER
€ 4.50
92022B
92022112
ref: 92022B
WASHER,20.5X30X1,STEE
€ 6.00
92022C
92022144
ref: 92022C
SHIM-KICK SHAFT
€ 4.50
92022D
92022161
ref: 92022D
WASHER-THRUST,25MM
€ 7.00
92022E
92024069
ref: 92022E
WASHER,TOOTHED,30.5X3
€ 3.50
92027
92027288
ref: 92027
COLLAR,25X32X23.5
€ 22.50
92028
920281007
ref: 92028
BUSHING,INPUT TOP GEA
€ 26.50
92028A
920281150
ref: 92028A
BUSHING,INPUT SHAFT
€ 43.50
92028B
920281151
ref: 92028B
BUSHING,27X34X18.6
€ 19.00
92033
92033015
ref: 92033
CIRCLIP
€ 2.50
92033A
92033026
ref: 92033A
CIRCLIP
€ 6.00
92045
92045035
ref: 92045
BEARING-BALL,83993SH2
€ 66.50
92046
920461045
ref: 92046
BEARING-NEEDLE,20V271
€ 25.00
92055
92055035
ref: 92055
O RING
€ 3.00
480
480J3000
ref: 480
CIRCLIP-TYPE-C,30MM
€ 3.50
600
600A0500
ref: 600
BALL-STEEL,5/32
€ 0.50
670
67CB1508
ref: 670
UNAVAILABLE IN PRICE BOOK
€ 0.00
