CARBURETOR PARTS
KZ750R1 GPZ 1982 USA CANADA

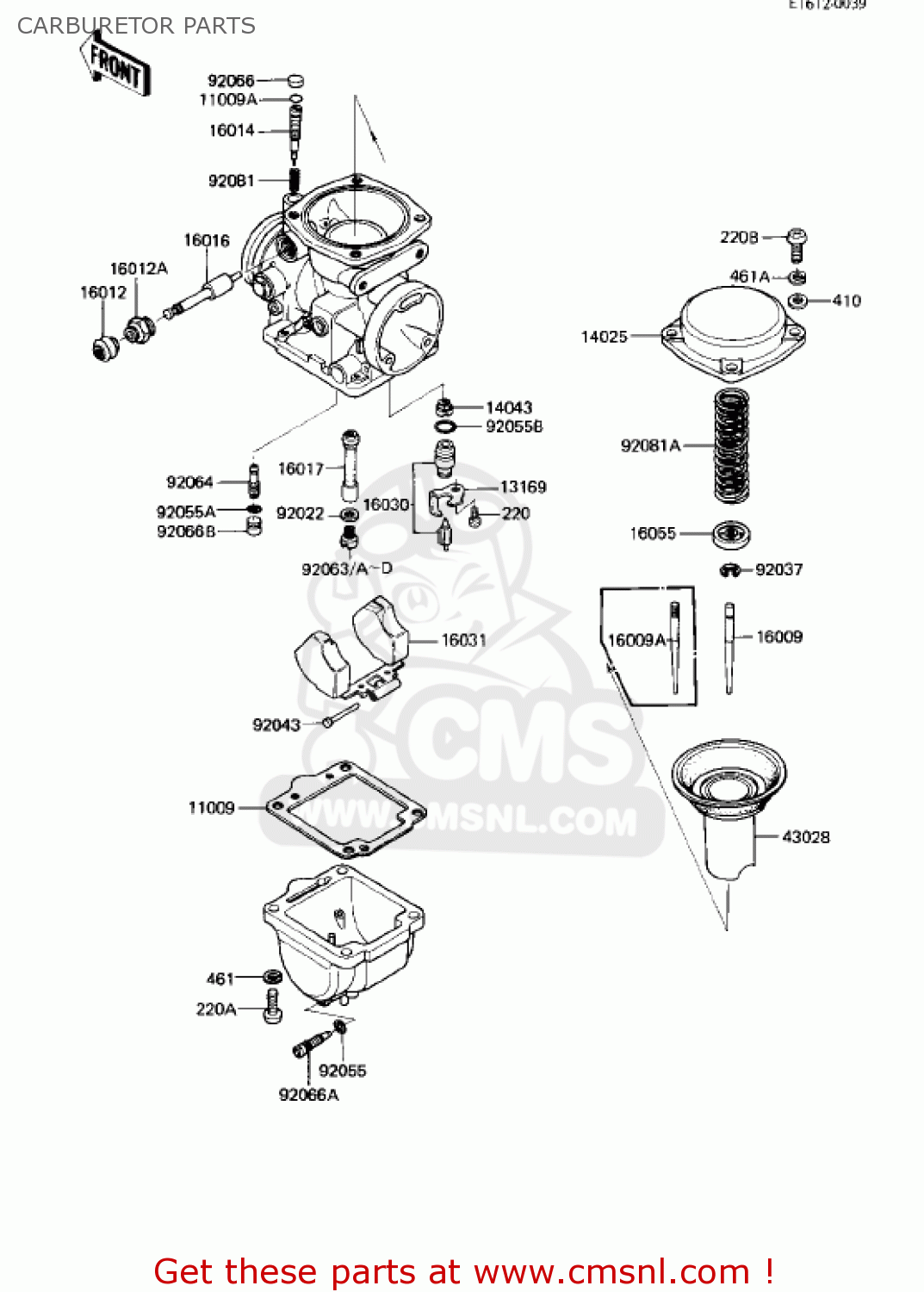

Carburetor parts diagram KZ750R1 GPZ 1982 USA CANADA
CARBURETOR PARTS KZ750R1 GPZ 1982 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
110091241
ref: 11009
110091241
11009A
16038022
ref: 11009A
GASKET,O-RING
€ 4.50
13169
131691482
ref: 13169
PLATE,FLOAT VALVE
€ 4.00
14025
140251603
ref: 14025
COVER,MIXING CHAMBER
€ 55.00
14043
140431010
ref: 14043
FILTER,FLOAT VALVE
€ 11.00
16009
160091114
ref: 16009
US
NEEDLE-JET,4BE4
€ 22.00
16009A
160091115
ref: 16009A
CN
NEEDLE-JET,4BE3
€ 19.00
16012
160121010
ref: 16012
CAP-STARTER PLUNGER,R
€ 17.00
16012A
160121011
ref: 16012A
CAP-STARTER PLUNGER
€ 10.50
16014
160141014
ref: 16014
SCREW-PILOT AIR
€ 18.00
16016
160161019
ref: 16016
PLUNGER
€ 34.00
16017
160171109
ref: 16017
JET-NEEDLE,Y-9
€ 26.50
16030
160301016
ref: 16030
VALVE-FLOAT,2.5
€ 43.00
16031
160311013
ref: 16031
FLOAT
€ 46.00
16055
16055010
ref: 16055
PLATE,NEEDLE
€ 7.00
43028
430281034
ref: 43028
DIAPHRAGM,VALVE
€ 144.50
92022
16034001
ref: 92022
WASHER-MAIN JET
€ 2.50
92037
16008014
ref: 92037
CLAMP,E-TYPE
€ 5.50
92043
16032008
ref: 92043
PIN,FLOAT
€ 4.00
92055
92055044
ref: 92055
'O' RING
€ 7.00
92055A
920551059
ref: 92055A
RING-O,CHECK VALVE
€ 7.50
92055B
920551105
ref: 92055B
RING-0
€ 3.00
92063
920631038
ref: 92063
JET-MAIN,#A110
€ 10.50
92063A
920631041
ref: 92063A
(RACING USE ONLY)
JET-MAIN,#A107.5R
€ 8.00
92063B
920631042
ref: 92063B
(RACING USE ONLY)
JET-MAIN,#A105R
€ 10.50
92063C
920631109
ref: 92063C
(RACING USE ONLY)
JET-MAIN,#A115
€ 10.00
92063D
920631110
ref: 92063D
(RACING USE ONLY)
JET-MAIN,#A112.5
€ 10.00
92064
920641036
ref: 92064
JET-PILOT,#A37.5
€ 13.50
92066
920661051
ref: 92066
US
PLUG,PILOT AIR SCREW,
€ 3.00
92066A
920661064
ref: 92066A
SCREW,DRAIN
€ 8.50
92066B
920661087
ref: 92066B
PLUG,PILOT JET
€ 4.00
92081
16022016
ref: 92081
SPRING, PILOT SCREW
€ 6.00
92081A
920811363
ref: 92081A
SPRING,DPHRGM VALVE
€ 16.00
220
220B0406
ref: 220
SCREW-PAN-CROS,4X6
€ 2.50
220A
214B0516A
ref: 220A
UNAVAILABLE IN PRICE BOOK
€ 0.50
220B
220C0512
ref: 220B
SCREW-PAN-CROS,5X12,B
€ 2.50
410
410F0500
ref: 410
WASHER-PLAIN-SMALL,5M
€ 0.50
461
461F0500
ref: 461
WASHER-SPRING,5MM
€ 0.50
461A
461K0500
ref: 461A
WASHER-SPRING,5MM,BLA
€ 0.50
