IGNITION SWITCH/LOCKS/REFLECTORS

KZ750R1 GPZ 1982 USA CANADA

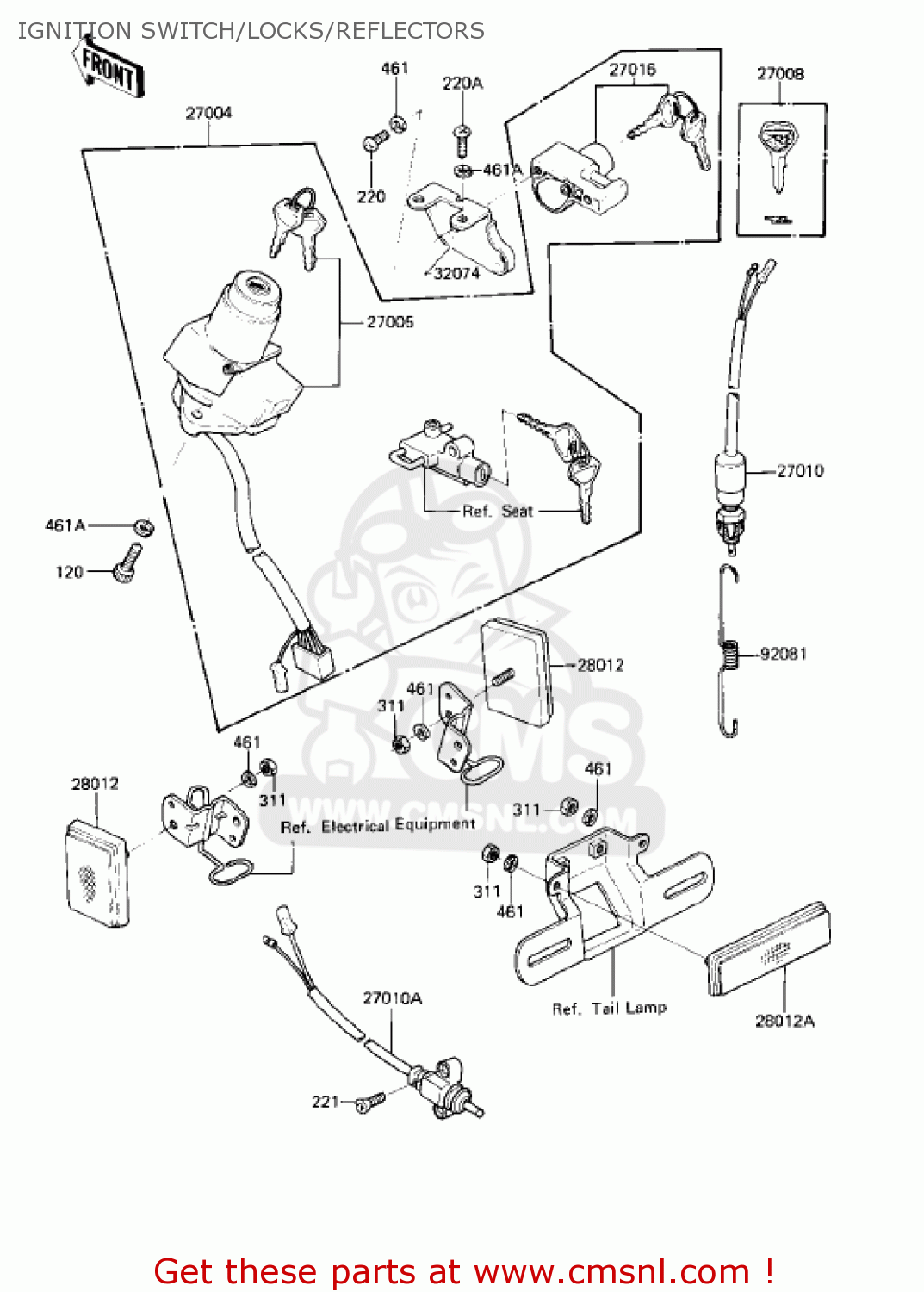

Ignition switch/locks/reflectors diagram KZ750R1 GPZ 1982 USA CANADA

prices are in EUR

ref

part #

description

quantity

27004

270045205
ref: 27004

SWITCH-ASSY,ALL

€ 293.50

27005

270055024
ref: 27005

SWITCH ASSY IGNITION

€ 249.00

27008

270081103
ref: 27008
(OPTION)

KEY-LOCK,BLANK

€ 13.50

27010

270101019
ref: 27010

SWITCH,REAR BRAKE

€ 23.00

27010A

270101065
ref: 27010A

SWITCH,SIDE STAND

€ 53.00

27016

270165038
ref: 27016

LOCK-ASSY,HELMET

€ 67.50

28012

280121003
ref: 28012

REFLECTOR,REFLEX

€ 15.00

28012A

280121005
ref: 28012A

REFLECTOR-REFLEX,RR

€ 16.50

32074

320741035
ref: 32074

BRACKET-LOCK,HELMET,B

€ 7.50

92081

27011011
ref: 92081

SPRING,BRAKE LAMP SW

€ 5.50

120

120S0616
ref: 120

BOLT-SOCKET,6X16

€ 1.00

220

220B0508
ref: 220

SCREW-PAN-CROS,5X8

€ 0.50

220A

220B0612
ref: 220A

SCREW-PAN HEAD,6X12

€ 1.00

221

221C0520
ref: 221

SCREW-CSK-CROS

€ 2.50

311

311B0500
ref: 311

NUT-HEX

€ 0.50

461

461F0500
ref: 461

WASHER-SPRING,5MM

€ 0.50

461A

461F0600
ref: 461A

WASHER-SPRING,6MM

€ 0.50

IGNITION SWITCH/LOCKS/REFLECTORS

all assemblies
