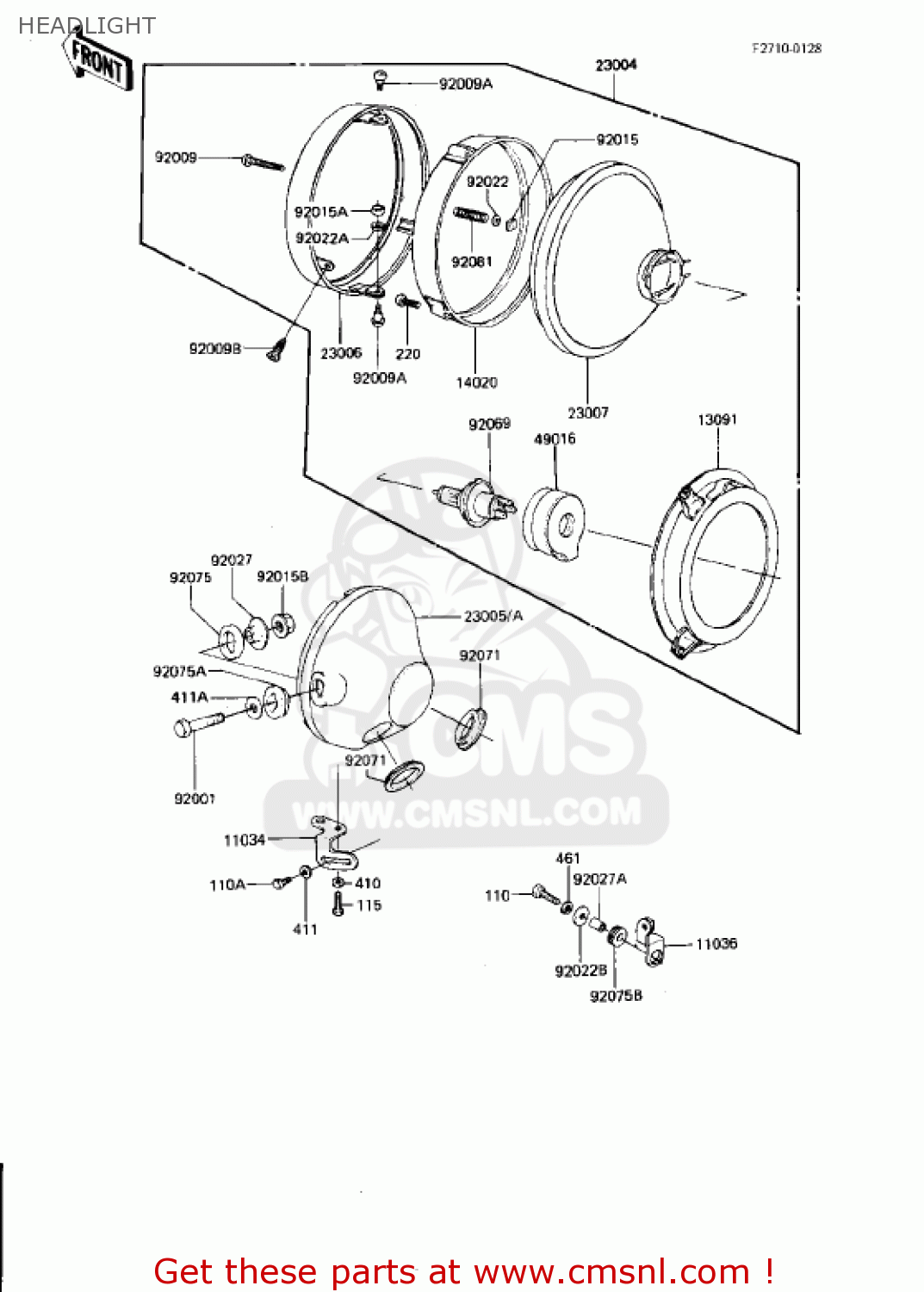

HEADLIGHT

ref

part #

description

quantity

11034

110341792
ref: 11034

BRACKET,HEAD LAMP

€ 7.00

11036

110361386
ref: 11036

HEADLAMP BRACKET,A

€ 6.00

13091

23074001
ref: 13091

HOLDER,HEAD LAMP

€ 28.00

14020

23072001
ref: 14020

RETAINER,HEAD LAMP

€ 26.00

23004

230041066
ref: 23004

HEADLAMP

€ 295.50

23005

230051015H8
ref: 23005

HEADLAMP BODY,COMPLETE,EBONY

€ 86.50

23005A

2300510158G
ref: 23005A

BODY-COMP-HD LAMP,EBY

€ 143.00

23006

230061015
ref: 23006

RIM-LAMP

€ 49.50

23007

230071009
ref: 23007

LENS UNIT, HEAD LAMP

€ 127.00

49016

490161016
ref: 49016

COVER-SEAL

€ 16.00

92001

92007024
ref: 92001

BOLT,10MM

€ 4.50

92009

23019021
ref: 92009

SCREW-FORCUS ADJUST

€ 3.00

92009A

23019023
ref: 92009A

SCREW-PAN HEAD,5X12

€ 3.50

92009B

920091149
ref: 92009B

SCREW,SPECIAL,5X14,BLACK

€ 2.50

92015

23020018
ref: 92015

NUT,4MM,FOCUS ADJUST

€ 3.00

92015A

23020023
ref: 92015A

NUT,5MM

€ 3.00

92015B

920151428
ref: 92015B

NUT,FLANGED,10MM

€ 3.00

92022

23021004
ref: 92022

WASHER,4.1X8X0.8

€ 2.00

92022A

23021012
ref: 92022A

WASHER

€ 3.00

92022B

92022125
ref: 92022B

WASHER,6.5X20X1.6

€ 1.00

92027

23052011
ref: 92027

COLLAR,HEAD LAMP

€ 8.50

92027A

92027162
ref: 92027A

COLLAR-REAR FENDER

€ 4.50

92069

920691002
ref: 92069

BULB,12V-60155W

€ 15.00

92071

920711008
ref: 92071

GROMMET

€ 4.00

92075

23066021
ref: 92075

DAMPER

€ 6.00

92075A

23066022
ref: 92075A

DAMPER

€ 6.00

92075B

92075209
ref: 92075B

DAMPER RUBBER

€ 3.00

92081

23014005
ref: 92081

SPRING-FOCUS ADJUST

€ 2.50

110

112G0625
ref: 110

BOLT-UPSET,6X25

€ 4.00

110A

112C0614
ref: 110A

BOLT,6X14,BLACK

€ 3.00

115

115C0816
ref: 115

BOLT-SMALL,8X16,BLACK

€ 2.00

220

220B0312
ref: 220

SCREW-PAN CROS,3X12

€ 2.00

410

920221554
ref: 410

WASHER,PLAIN,8MM

€ 3.00

411

411F0600
ref: 411

WASHER-PLAIN,6MM,BLAC

€ 0.50

411A

411D1000
ref: 411A

WASHER-PLAIN,10MM

€ 3.00

461

461F0600
ref: 461

WASHER-SPRING,6MM

€ 0.50
