FRONT FORK
KZ750N1 SPECTRE 1982 USA CANADA

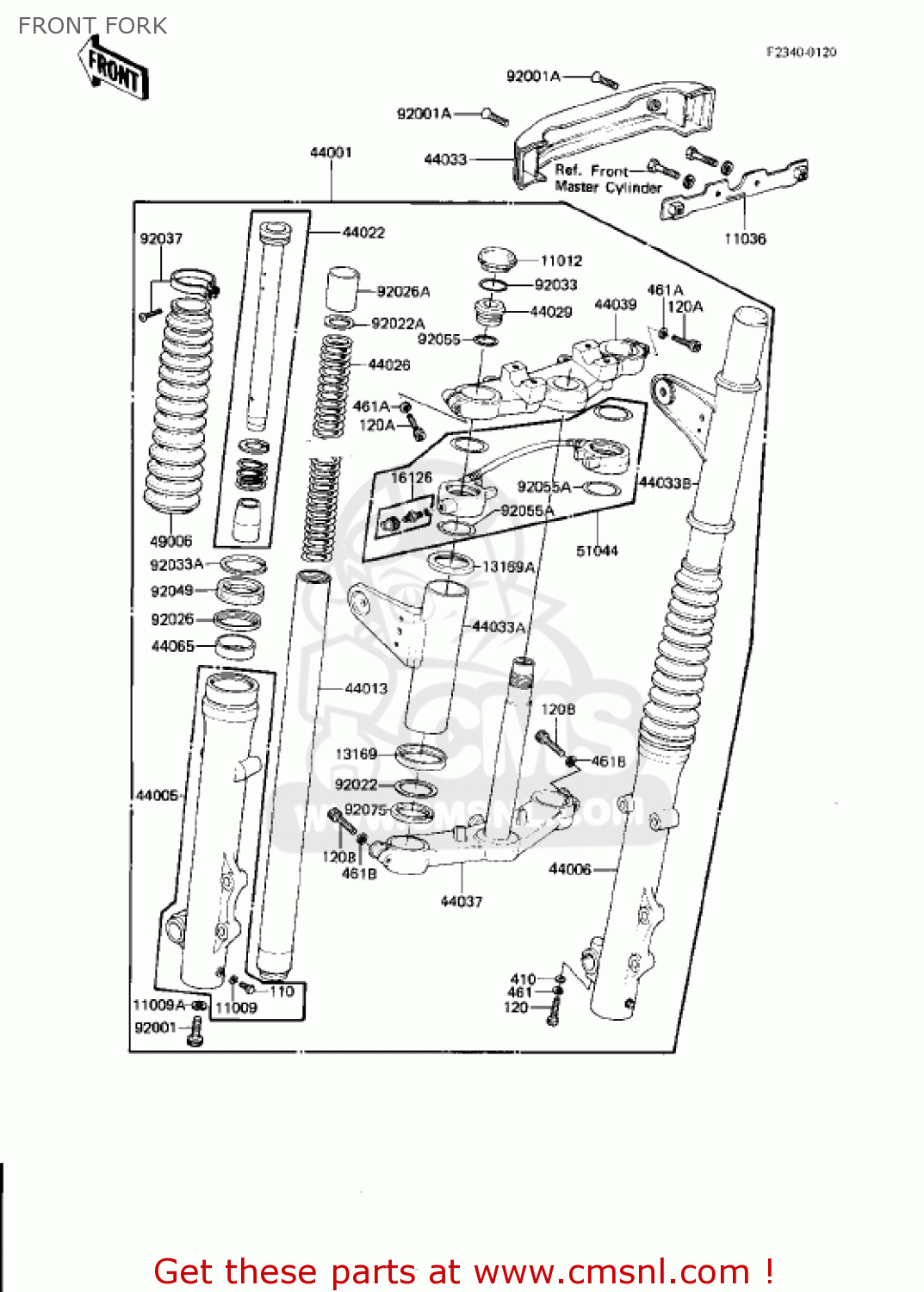

Front fork diagram KZ750N1 SPECTRE 1982 USA CANADA
FRONT FORK KZ750N1 SPECTRE 1982 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
44045047
ref: 11009
GASKET,DRAIN PLUG (NAS)
€ 6.00
11009A
44045051
ref: 11009A
GASKET,FORK CYLINDER (NAS)
€ 4.00
11012
110121061
ref: 11012
CAP,RUBBER,FORK TOP
€ 9.50
11036
110361320
ref: 11036
BRACKET-A,FORK COVER
€ 19.00
13169
131691134
ref: 13169
PLATE,FORK COVER,LOWE
€ 8.00
13169A
131691135
ref: 13169A
PLATE,FORK COVER,UPPE
€ 6.00
16126
161261043
ref: 16126
VALVE,AIR
€ 24.50
44001
440011337
ref: 44001
FRONT FORK
€ 944.00
44005
440051090
ref: 44005
FORK OUTER TUBE,LH
€ 215.50
44006
440061090
ref: 44006
FORK OUTER TUBE,RH
€ 145.00
44013
440131088
ref: 44013
PIPE-FORK INNER
€ 175.50
44022
440221078
ref: 44022
FORK CYLINDER
€ 66.00
44026
440261139
ref: 44026
FRONT FORK SPRING
€ 48.00
44029
440291006
ref: 44029
SEAT-FORK SPRING
€ 9.50
44033
440331084
ref: 44033
COVER-FORK
€ 28.00
44033A
440331087
ref: 44033A
FORK COVER,LH,FLAT BLACK
€ 89.00
44033B
440331088
ref: 44033B
FORK COVER,RH,FLAT BLACK
€ 76.50
44037
440371082
ref: 44037
HOLDER-FORK UNDER
€ 205.00
44039
440391051
ref: 44039
FORK HOLDER,UPPER
€ 135.00
44065
440651011
ref: 44065
BUSHING,FORK
€ 16.00
49006
490061070
ref: 49006
BOOT,FORK,BLACK
€ 44.00
51044
510441014
ref: 51044
TUBE-ASSY,FRONT FORK
€ 149.50
92001
44041078
ref: 92001
BOLT, FORK CYLINDER
€ 6.50
92001A
222C0518
ref: 92001A
SCREW-CSK-RD-CROS
€ 2.50
92022
920221111
ref: 92022
WASHER,FORK COVER
€ 7.50
92022A
920221310
ref: 92022A
WASHER,FORK SPRING
€ 3.00
92026
920261038
ref: 92026
SPACER,FORK
€ 6.50
92026A
920261112
ref: 92026A
SPACER,FORK SPRING
€ 11.50
92033
920331023
ref: 92033
CIRCLIP
€ 3.00
92033A
920331055
ref: 92033A
RING,SNAP
€ 4.00
92037
920371346
ref: 92037
CLAMP,FRONT FORK,BLAC
€ 12.00
92049
920491063
ref: 92049
SEAL-OIL,FORK
€ 14.50
92055
920551034
ref: 92055
RING-O
€ 5.00
92055A
920551131
ref: 92055A
RING-O,TUBE ASSY
€ 3.00
92075
920751137
ref: 92075
DAMPER,FORK COVER
€ 5.50
110
110B0608
ref: 110
BOLT-HEX HEAD,6X8
€ 0.50
120
120P0830
ref: 120
BOLT,SOCKET,8X30
€ 2.00
120A
120S0840
ref: 120A
BOLT-SOCKET,8X40,BLAC
€ 3.00
120B
120S1040
ref: 120B
BOLT-SOCKET,10X40
€ 3.50
140
410B0800
ref: 140
WASHER-PLAIN-SMALL,8M
€ 0.50
461
461F0800
ref: 461
WASHER-SPRING,8MM
€ 0.50
461A
461K0800
ref: 461A
WASHER-SPRING,8MM,BLA
€ 1.50
461B
461K1000
ref: 461B
461K1000
