CARBURETOR ASSY
KZ750N1 SPECTRE 1982 USA CANADA

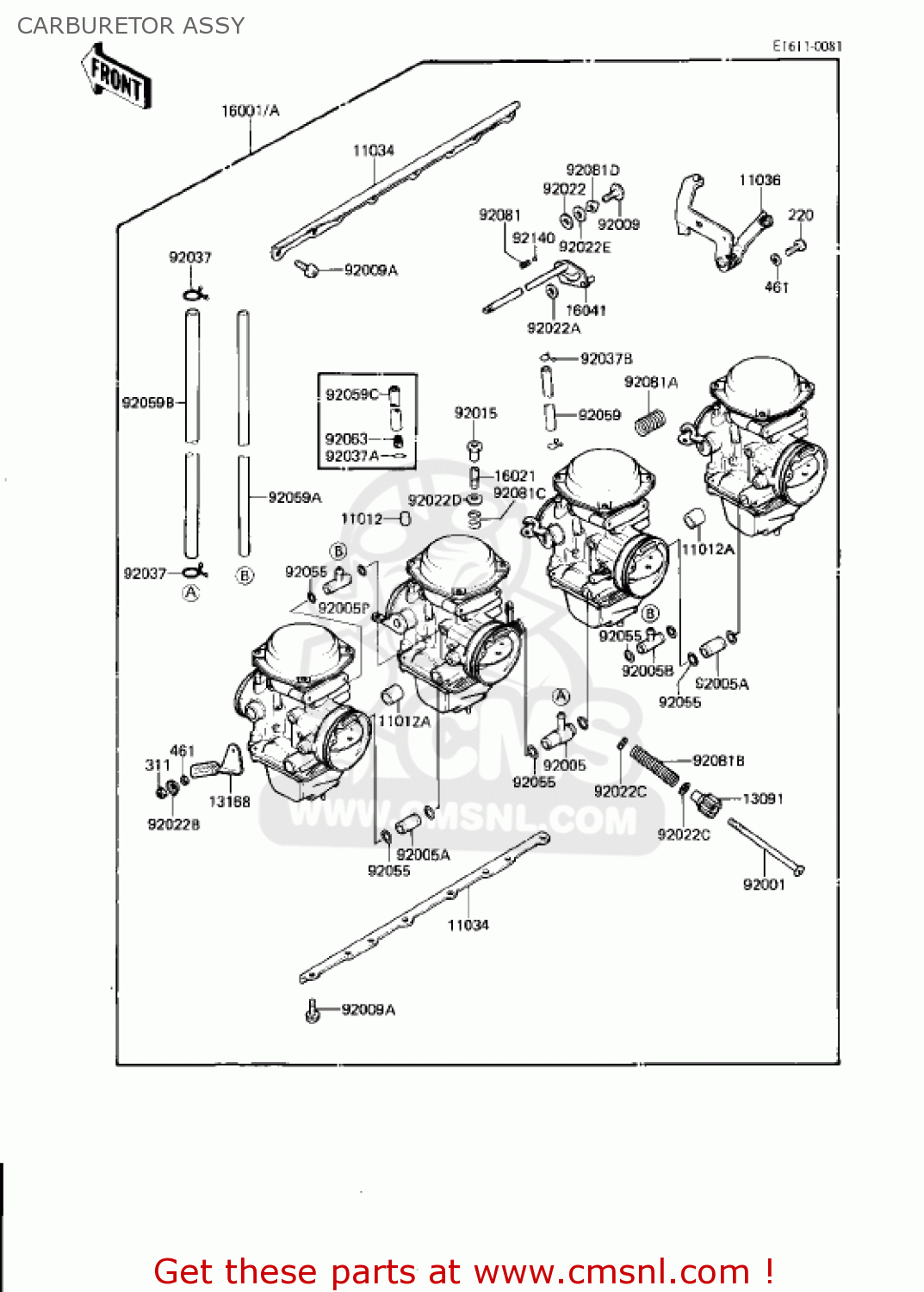

Carburetor assy diagram KZ750N1 SPECTRE 1982 USA CANADA
CARBURETOR ASSY KZ750N1 SPECTRE 1982 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11012
110121129
ref: 11012
US
CAP,RUBBER
€ 4.50
11012A
110121130
ref: 11012A
TUBE,DUST SEAL
€ 2.00
11034
110341800
ref: 11034
PLATE,CARBURETOR STAY
€ 39.50
11036
110361254
ref: 11036
BRACKET-A,THROTTLE CA
€ 12.00
13091
130911078
ref: 13091
HOLDER,ADJUST
€ 9.00
13168
131681123
ref: 13168
CHOKE LEVER
€ 18.00
16001
160011526
ref: 16001
US
CARBURETOR
€ 872.50
16001A
160011531
ref: 16001A
CN
CARBURETOR (Canada)
€ 0.00
16021
160211027
ref: 16021
SCREW,SLOTTED
€ 12.00
16041
160411028
ref: 16041
CHOKE LINK SHAFT
€ 26.50
92001
920011328
ref: 92001
BOLT,HEX HEAD,5X70
€ 6.50
92005
920051026
ref: 92005
FITTING,FUEL TUBE
€ 28.00
92005A
920051027
ref: 92005A
NIPPLE,FUEL
€ 10.50
92005B
920051054
ref: 92005B
AIR VENT FITTING
€ 9.50
92009
920091096
ref: 92009
SCREW,LINK SHAFT
€ 6.00
92009A
920091129
ref: 92009A
SCREW,6X16
€ 3.00
92015
920151118
ref: 92015
NUT,5MM
€ 4.50
92022
920221199
ref: 92022
WASHER,6.1X11X0.8,POL
€ 3.00
92022A
920221200
ref: 92022A
WASHER,6.4X9.4X0.8,PO
€ 2.00
92022B
920221201
ref: 92022B
WASHER,LOCK,5M/M
€ 2.00
92022C
920221203
ref: 92022C
WASHER
€ 2.50
92022E
920221207
ref: 92022E
WASHER,6.5X11X1.2,STE
€ 2.50
92037
920371075
ref: 92037
CLAMP,FUEL INLET TUBE
€ 2.50
92037A
920371201
ref: 92037A
CN
CLAMP
€ 3.00
92037B
920371241
ref: 92037B
CLAMP,TUBE
€ 2.00
92055
920551004
ref: 92055
O RING
€ 2.50
92059
920591173
ref: 92059
TUBE,5X9X200
€ 16.50
92059A
920591203
ref: 92059A
TUBE,6.5X9.5X350
€ 12.50
92059B
920591236
ref: 92059B
TUBE,FUEL
€ 25.00
92059C
920591242
ref: 92059C
CN
TUBE, 4.5X8X210 (Canada)
€ 0.00
92063
920631086
ref: 92063
CN
JET-MAIN,#75
€ 7.50
92081
920811249
ref: 92081
SPRING
€ 4.00
92081A
920811250
ref: 92081A
SPRING
€ 3.50
92081B
920811251
ref: 92081B
SPRING
€ 3.00
92081C
920811252
ref: 92081C
SPRING
€ 2.50
92081D
920811262
ref: 92081D
SPRING,WAVED WASHER
€ 3.00
92140
921401004
ref: 92140
BALL,STEEL,3/16"
€ 1.50
220
220B0520
ref: 220
SCREW-PAN-CROS
€ 0.50
311
311B0500
ref: 311
NUT-HEX
€ 0.50
461
461F0500
ref: 461
WASHER-SPRING,5MM
€ 0.50
