SEAT

KZ750K1 1983 USA CANADA / LTD BELT DRIVE

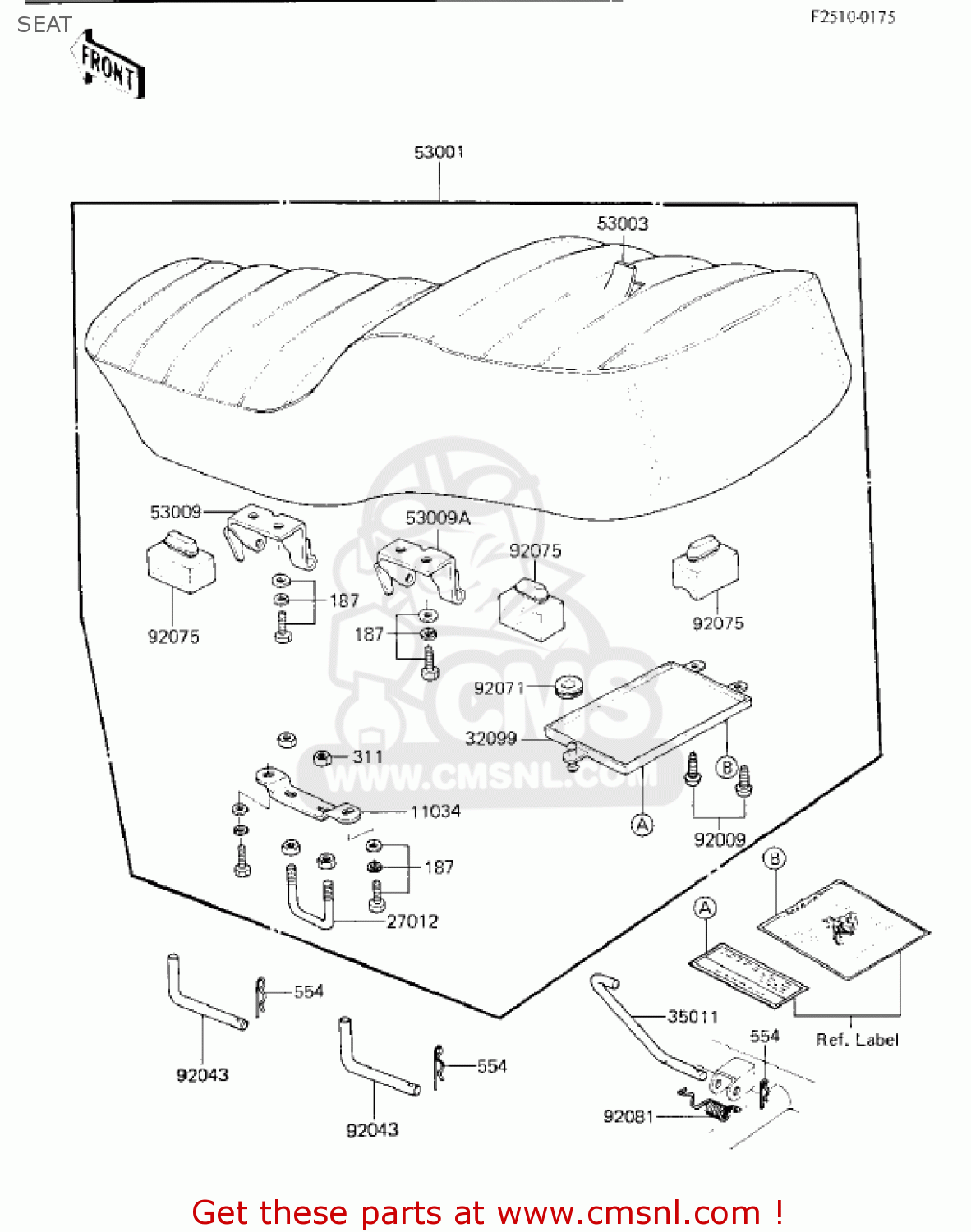

Seat diagram KZ750K1 1983 USA CANADA / LTD BELT DRIVE

prices are in EUR

ref

part #

description

quantity

11034

110341329
ref: 11034

BRACKET,SEAT CATCH

€ 9.00

27012

53056002
ref: 27012

HOOK,SEAT

€ 11.50

32099

32099011
ref: 32099

CASE,MANUAL

€ 11.50

35011

350111034
ref: 35011

STAY,SEAT STAND

€ 5.50

53001

530011163
ref: 53001

SEAT-ASSY

€ 377.50

53003

530031045
ref: 53003

LEATHER,SEAT

€ 147.00

53009

530091031
ref: 53009

HINGE

€ 7.00

53009A

530091033
ref: 53009A

HINGE,SEAT

€ 8.50

92009

920091043
ref: 92009

SCREW,TAPPING,5X8

€ 3.00

92043

920431021
ref: 92043

PIN,SEAT PIVOT

€ 3.00

92071

92071056
ref: 92071

GROMMET

€ 2.50

92075

92075099
ref: 92075

DAMPER RUBBER

€ 3.50

92081

920811053
ref: 92081

SPRING,SEAT HOOK

€ 8.50

187

187B0614
ref: 187

BOLT-UPSET-WSP

€ 0.50

311

311B0600
ref: 311

NUT,6MM

€ 0.50

554

554A0500
ref: 554

PIN-SNAP

€ 1.50
