BRAKE PEDAL/TORGQUE LINK

KZ750K1 1983 USA CANADA / LTD BELT DRIVE

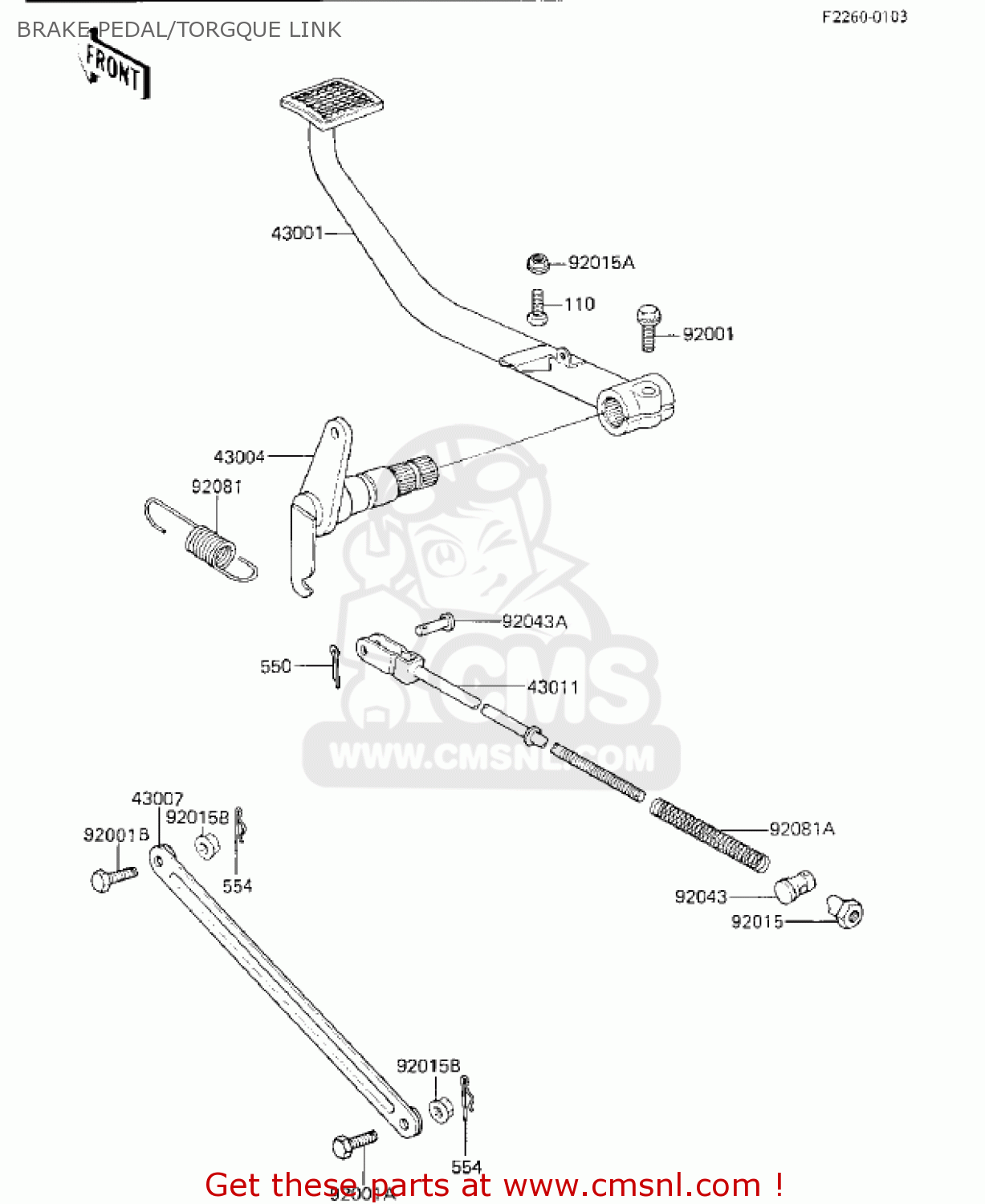

Brake pedal/torgque link diagram KZ750K1 1983 USA CANADA / LTD BELT DRIVE

prices are in EUR

ref

part #

description

quantity

43001

430011110
ref: 43001

LEVER-BRAKE

€ 47.50

43004

430041027
ref: 43004

SHAFT-BRAKE

€ 24.50

43007

430071016
ref: 43007

ROD-TORQUE

€ 14.50

43011

430111016
ref: 43011

ROD-BRAKE

€ 10.00

92001

130G0825
ref: 92001

BOLT,FLANGED,8X25

€ 0.50

92001A

920011519
ref: 92001A

BOLT,10X37

€ 4.50

92001B

92003103
ref: 92001B

BOLT,TORQUE LINK FITT

€ 6.00

92015

92015042
ref: 92015

NUT-BRAKE ROD ADJUST

€ 4.00

92015A

920151078
ref: 92015A

NUT,6M/M

€ 1.50

92015B

920151428
ref: 92015B

NUT,FLANGED,10MM

€ 3.00

92043

92043065
ref: 92043

PIN-BRAKE ROD

€ 3.50

92043A

92043090
ref: 92043A

PIN,6X13

€ 4.00

92081

43005029
ref: 92081

SPRING,BRAKE PEDAL

€ 6.00

92081A

43012001
ref: 92081A

SPRING,BRAKE ROD

€ 3.00

110

112G0620
ref: 110

BOLT 6X20

€ 1.00

550

550D2515
ref: 550

PIN COTTER,295X15

€ 0.50

554

554A0800
ref: 554

PIN-SNAP,8MM

€ 1.00
