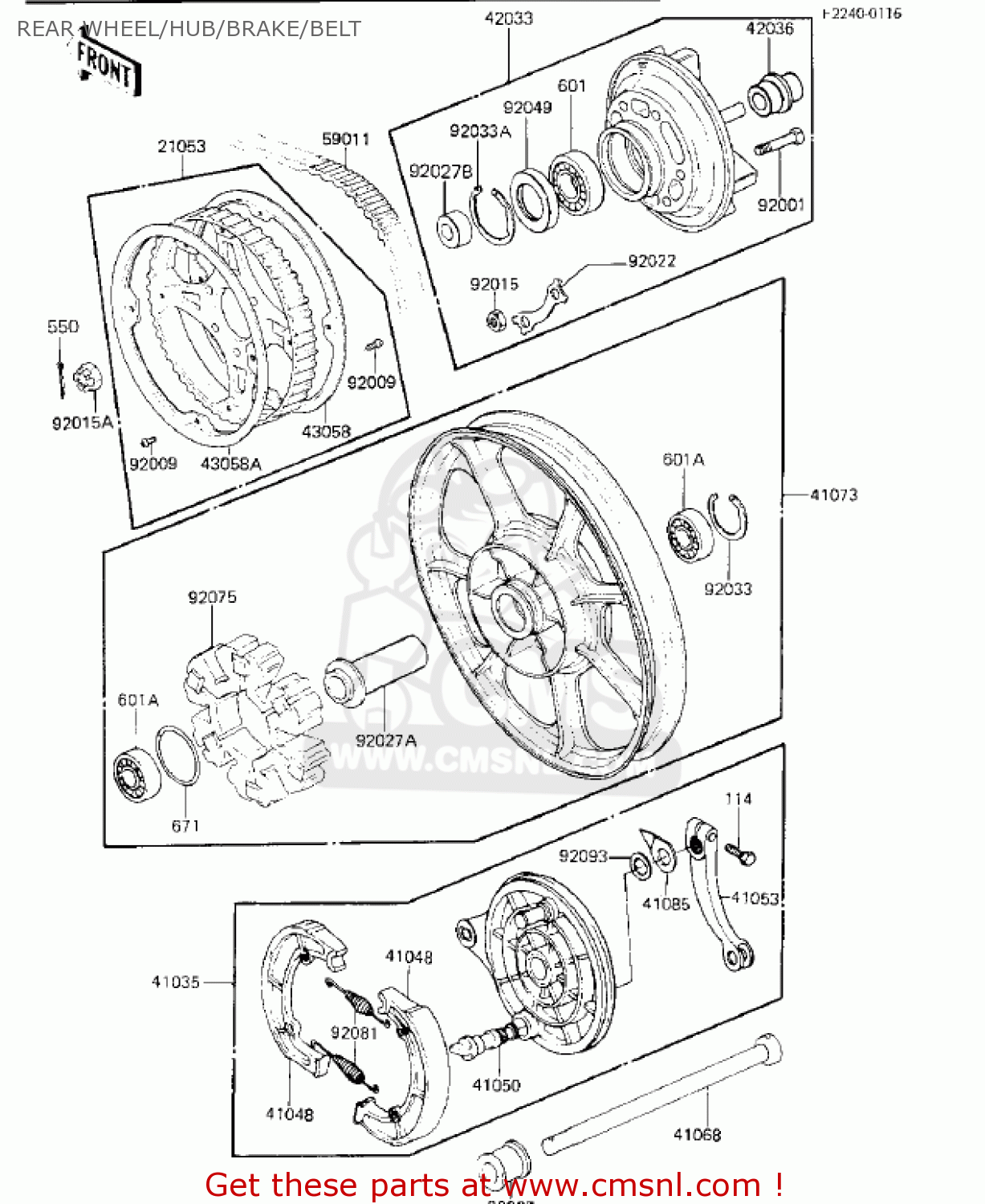

REAR WHEEL/HUB/BRAKE/BELT

ref

part #

description

quantity

21053

210531014
ref: 21053

SPROCKET-ASSY,65T

€ 310.50

41035

410351055
ref: 41035

PANEL ASY,RR BRK,BLCK

€ 335.50

41048

42019012
ref: 41048

SHOE, BRAKE (MCA)

€ 26.00

41050

41050017
ref: 41050

CAM-BRAKE

€ 25.50

41053

42029039
ref: 41053

LEVER REAR BRAKE CAM

€ 37.00

41068

410681117
ref: 41068

AXLE,RR

€ 62.50

41073

410681117
ref: 41073

AXLE,RR

€ 62.50

41085

41085004
ref: 41085

INDICATOR,BRAKE SHOE

€ 10.00

42033

420331051
ref: 42033

COUPLING-ASSY,RR HUB

€ 184.50

42036

420361036
ref: 42036

SLEEVE,RR HUB COUPLIN

€ 20.50

43058

430581018
ref: 43058

RING,HUB SPROCKET

€ 53.50

43058A

430581033
ref: 43058A

RING,REAR HUB SPROCKE

€ 28.50

59011

590111012
ref: 59011

BELT,DRIVE,137T

€ 537.00

92001

92001161
ref: 92001

BOLT,10X41

€ 3.00

92009

920091167
ref: 92009

SCREW,5X10

€ 4.50

92015

42045005
ref: 92015

NUT,10MM

€ 5.00

92015A

92015055
ref: 92015A

NUT,16MM

€ 8.00

92022

920221212
ref: 92022

WASHER,LOCK

€ 4.00

92027

920271226
ref: 92027

COLLAR,AXLE,RR,RH,L=2

€ 19.50

92027A

920271267
ref: 92027A

COLLAR,RR HUB,L=76

€ 10.00

92027B

920271514
ref: 92027B

COLLAR,L=39.5

€ 20.00

92033

920331042
ref: 92033

CIRCLIP,47M/M

€ 4.00

92033A

920331044
ref: 92033A

CIRCLIP 62 M/M

€ 7.50

92049

92050027
ref: 92049

OIL SEAL

€ 13.50

92075

42014033
ref: 92075

DAMPER,RR HUB SHOCK,1

€ 85.50

92081

41049012
ref: 92081

SPRING, BRKE SHOE

€ 6.00

92093

41051003
ref: 92093

DUST SHIELD-BRAKE CAM

€ 2.50

114

114G0828
ref: 114

BOLT-SMALL,8X28

€ 2.50

550

550D4035
ref: 550

PIN-COTTER,4.0X35

€ 1.00

601

601B6206
ref: 601

BEARING-BALL,#6206C3

€ 19.50

601A

601B6303ZZ
ref: 601A

BEARING-BALL,#6303ZZC

€ 32.50

671

671B2565
ref: 671

O RING,65MM

€ 6.00

all assemblies
