FRAME ('80 H1)
KZ750H2 1981 USA CANADA / LTD

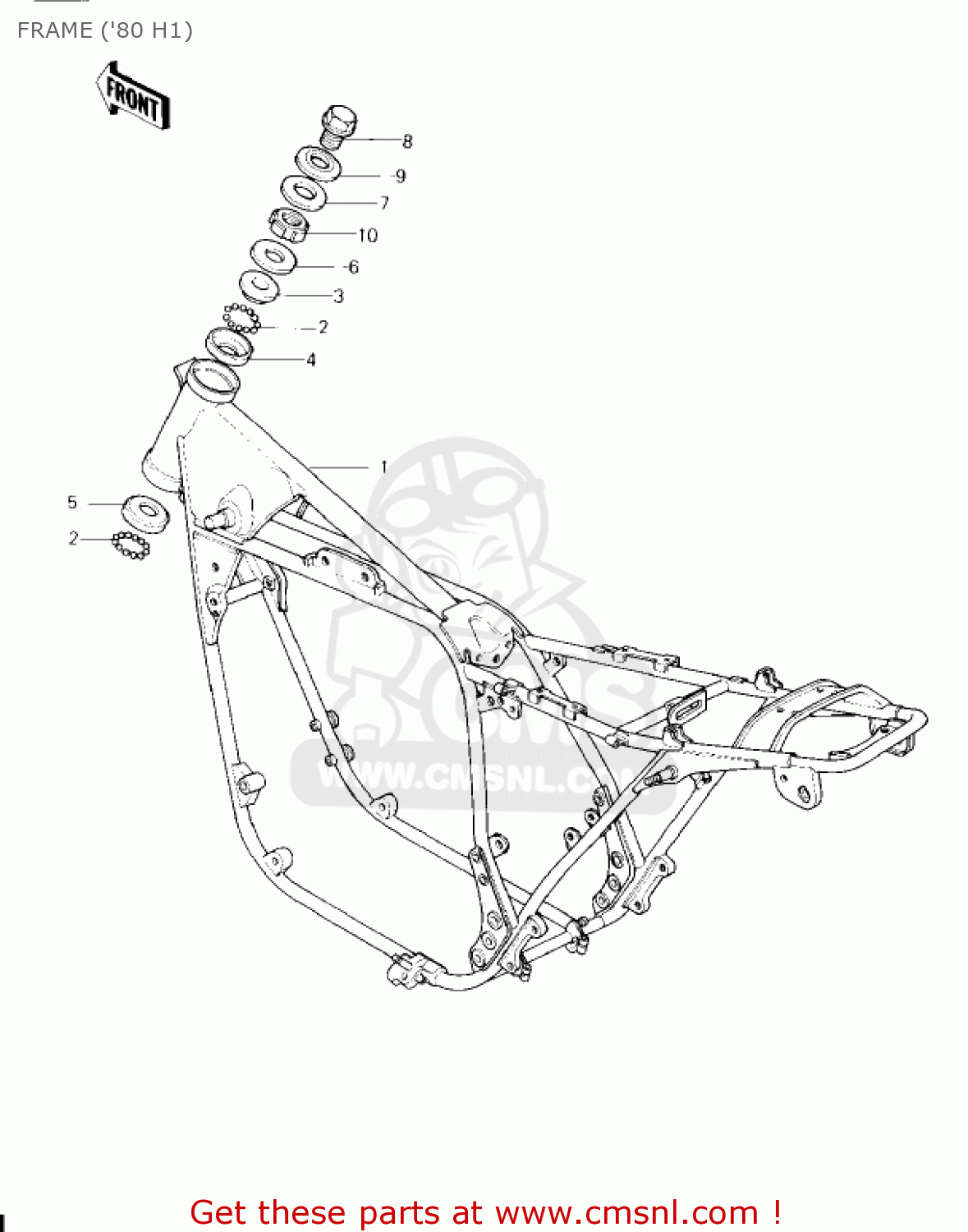

Frame ('80 h1) diagram KZ750H2 1981 USA CANADA / LTD
FRAME ('80 H1) KZ750H2 1981 USA CANADA / LTD
×
prices are in EUR
ref
part #
description
quantity
1
320021129
ref: 1
FRAME
€ 1,210.00
2
600A0800
ref: 2
BALL-STEEL,1/4
€ 0.50
3
92047011
ref: 3
CONE-STRNG STM BRNG
€ 14.50
4
92048006
ref: 4
RACE-STRNG BEARIN-STE
€ 11.50
5
92048008
ref: 5
RACE-STRNG STM BRNG
€ 16.00
6
46098016
ref: 6
CAP,STEERING STEM
€ 4.00
7
46100003
ref: 7
WASHER,WAVE
€ 6.50
8
92007031
ref: 8
BOLT-STEERG STEM HEAD
€ 17.50
9
92022230
ref: 9
WASHER-STEERG STM HD
€ 7.50
10
92090007
ref: 10
NUT-STEERING STEM LCK
€ 8.00
