CARBURETOR PARTS ('80 H1)
KZ750H2 1981 USA CANADA / LTD

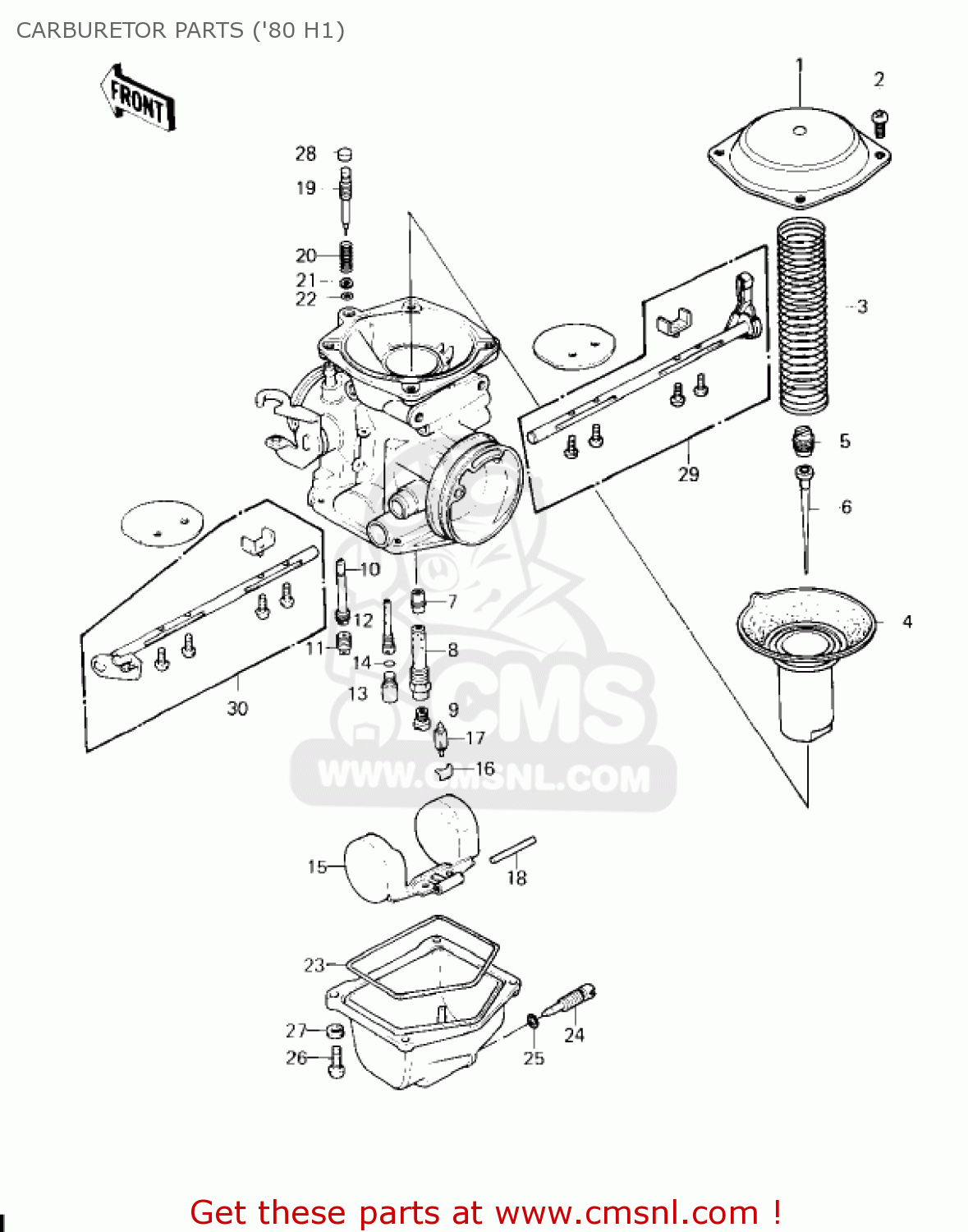

Carburetor parts ('80 h1) diagram KZ750H2 1981 USA CANADA / LTD
CARBURETOR PARTS ('80 H1) KZ750H2 1981 USA CANADA / LTD
×
prices are in EUR
ref
part #
description
quantity
1
160051012
ref: 1
TOP-CHAMBER,MIXING
€ 24.00
2
220B0408
ref: 2
SCREW-PAN-CROS
€ 0.50
3
920811412
ref: 3
SPRING,VACUUM VALVE
€ 12.50
4
161261039
ref: 4
VALVE,VACUUM
€ 118.50
5
160071022
ref: 5
SEAT-SPRING,THROTTLE
€ 8.00
6
160091062
ref: 6
NEEDLE-JET,N01A
€ 28.00
7
160171059
ref: 7
JET-NEEDLE
€ 33.00
8
130911050
ref: 8
HOLDER,NEEDLE JET,N41
€ 16.00
9
920631069
ref: 9
MAIN JET,2ND #125
€ 9.50
9
920631072
ref: 9
MAIN JET 2ND #120
€ 9.50
9
920631073
ref: 9
MAIN JET,2ND #122
€ 9.50
9
920631074
ref: 9
MAIN JET,2ND #128
€ 9.50
9
920631075
ref: 9
MAIN JET,2ND #130
€ 9.50
10
920621011
ref: 10
NOZZLE,MAIN
€ 23.00
11
920631070
ref: 11
JET-MAIN,PRI,#62
€ 8.00
12
920641001
ref: 12
JET-PILOT,#35
€ 14.00
13
110121128
ref: 13
CAP,POLYACETAL
€ 13.50
14
920551088
ref: 14
RING-O
€ 12.50
15
160311001
ref: 15
FLOAT
€ 38.50
16
16044007
ref: 16
CLIP, FLOAT VALVE
€ 4.00
17
160301007
ref: 17
FLOAT VALVE ASSY
€ 37.00
18
920431002
ref: 18
PIN,FLOAT
€ 3.50
19
160141011
ref: 19
SCREW-PILOT AIR
€ 9.00
20
920811002
ref: 20
SPRING,PIROT ADJ SCRW
€ 3.50
21
920221003
ref: 21
WASHER,PLAIN
€ 2.50
22
920551002
ref: 22
O RING,PILOT ADJUST
€ 2.50
23
16019024
ref: 23
O RING,FLOAT CHAMBER
€ 15.00
24
920091095
ref: 24
SCREW,DRAIN
€ 10.00
25
920551053
ref: 25
O RING,DRAIN SCREW
€ 3.00
26
220B0412
ref: 26
SCREW-PAN CROS 4X12
€ 0.50
27
461F0400
ref: 27
WASHER-SPRING,4MM
€ 0.50
28
920661051
ref: 28
PLUG,PILOT AIR SCREW,
€ 3.00
29
160411022
ref: 29
SHAFT,CHOKE,LH
€ 53.50
30
160411023
ref: 30
SHAFT,CHOKE,R.H
€ 41.50
