CYLINDER HEAD ('80 H1)
KZ750H2 1981 USA CANADA / LTD

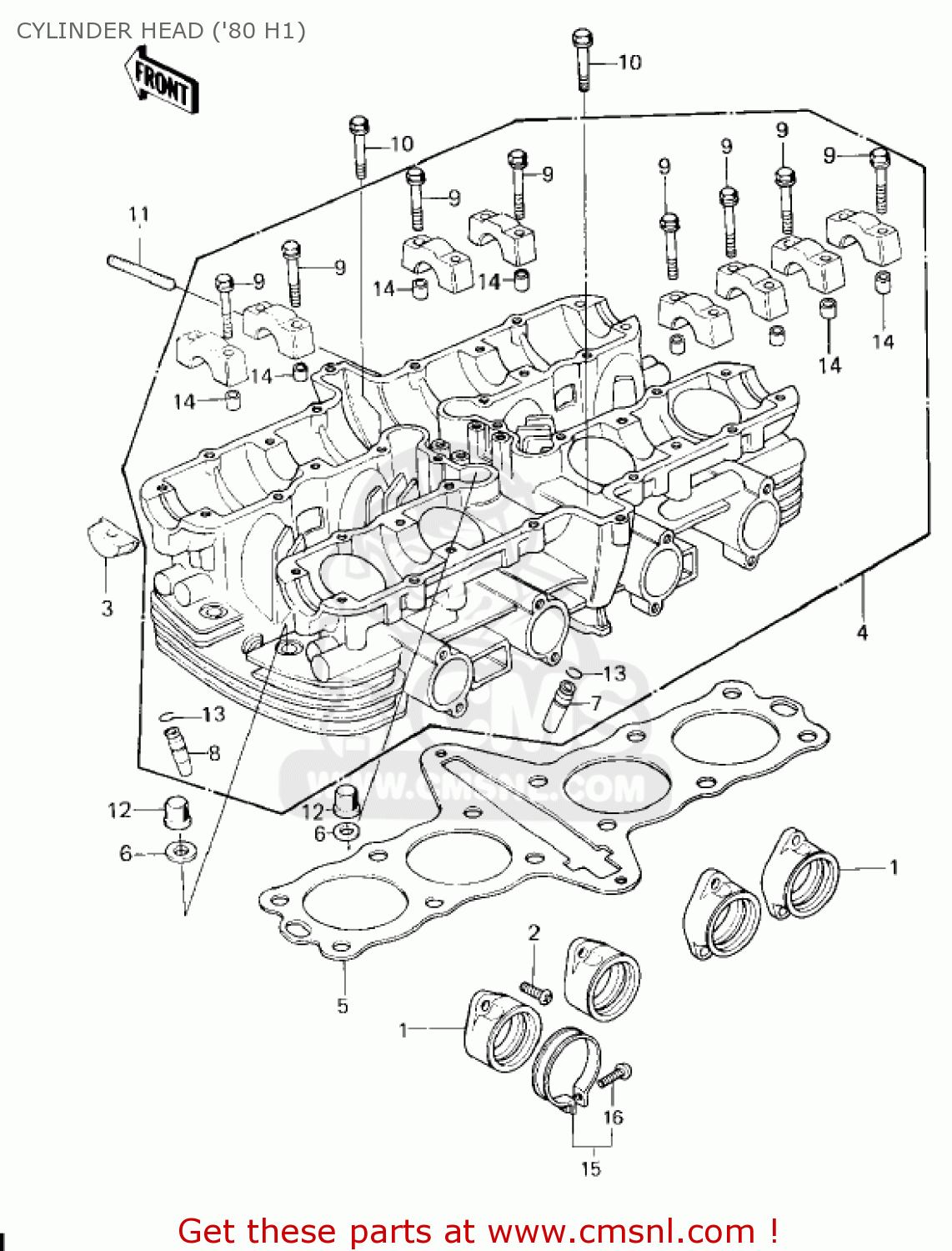

Cylinder head ('80 h1) diagram KZ750H2 1981 USA CANADA / LTD
CYLINDER HEAD ('80 H1) KZ750H2 1981 USA CANADA / LTD
×
prices are in EUR
ref
part #
description
quantity
1
160651028
ref: 1
HOLDER-CARBURETOR
€ 22.50
2
220B0618
ref: 2
SCREW-PAN HEAD,6X18
€ 2.50
3
920661111
ref: 3
PLUG,CAMSHAFT,11.35X1
€ 8.00
4
110021045
ref: 4
CYLINDER HEAD,BARREL
€ 926.50
4
110021042
ref: 4
CYLINDER HEAD,BARREL FINISH
€ 675.00
5
110041107
ref: 5
GASKET-HEAD,CYLINDER (MCA)
€ 145.50
6
411B1000
ref: 6
WASHER-PLAIN,10MM
€ 0.50
7
12013009
ref: 7
GUIDE-VALVE,INTAKE
€ 18.00
8
490021002
ref: 8
GUIDE,EXHAUST VALVE
€ 16.00
9
920011105
ref: 9
BOLT,HEX HEAD,6X38
€ 3.00
10
920011445
ref: 10
BOLT,FLANGED,8X43
€ 6.00
11
92004066
ref: 11
STUD, 6X27
€ 3.50
12
92015078
ref: 12
NUT
€ 2.50
13
92036023
ref: 13
CIRCLIP,VALVE GUIDE
€ 0.50
14
92042007
ref: 14
PIN-DOWEL
€ 4.00
15
920371326
ref: 15
CLAMP
€ 5.50
16
220C0635
ref: 16
SCREW-PAN-CROS,6X35,B
€ 3.50
