REAR MASTER CYLINDER

KZ750F1 SHAFT 1983 USA CANADA / LTD

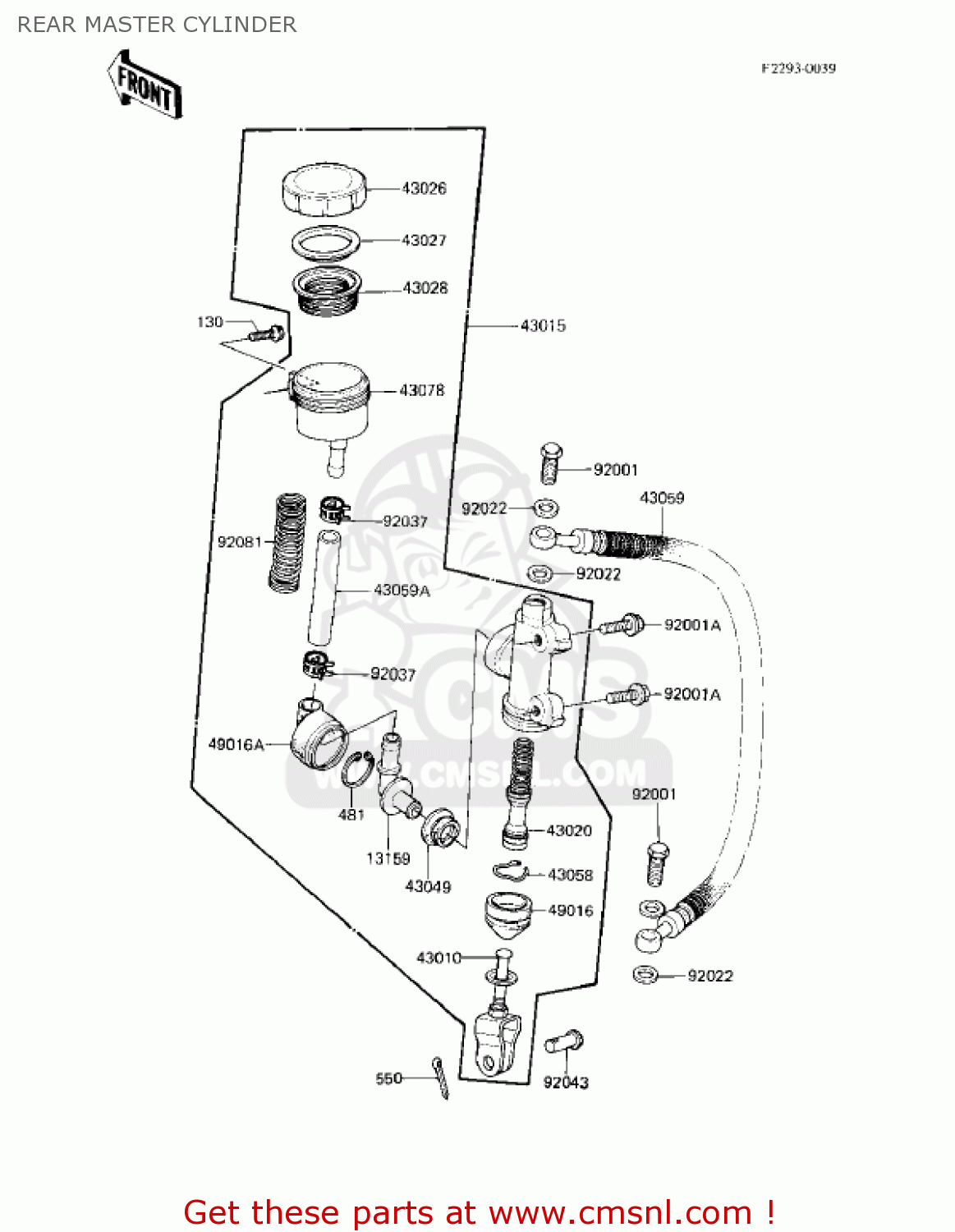

Rear master cylinder diagram KZ750F1 SHAFT 1983 USA CANADA / LTD

REAR MASTER CYLINDER KZ750F1 SHAFT 1983 USA CANADA / LTD
REAR MASTER CYLINDER KZ750F1 SHAFT 1983 USA CANADA / LTD
REAR MASTER CYLINDER KZ750F1 SHAFT 1983 USA CANADA / LTD
prices are in EUR
ref
part #
description
quantity
13159
131591009
ref: 13159
CONNECTOR
131591009
€ 10.00
43010
430105006
ref: 43010
ROD-ASSY-BRAKE,RR
€ 163.00
43015
430151251
ref: 43015
MASTER CYLINDER ASSEMBLY
€ 204.50
43020
430201035
ref: 43020
PISTON-COMP-BRAKE
430201035
€ 54.00
43026
430261016
ref: 43026
CAP-BRAKE
430261016
€ 22.50
43027
430271005
ref: 43027
PLATE-DIAPHRAGM
430271005
€ 4.50
43028
430281016
ref: 43028
DIAPHRAGM
430281016
€ 15.00
43049
430491008
ref: 43049
PACKING (NAS)
430491008
€ 9.00
43058
43058004
ref: 43058
RING,ROD STOPPER
43058004
€ 4.50
43059
430591186
ref: 43059
HOSE-BRAKE,L=415
€ 78.00
43059A
430591140
ref: 43059A
HOSE-BRAKE,L=116
€ 8.00
43078
430781009
ref: 43078
RESERVOIR
430781009
€ 20.50
49016
490161034
ref: 49016
COVER-SEAL,MASTER CYL
490161034
€ 12.50
49016A
490161048
ref: 49016A
COVER-SEAL,BRAKE PIST
490161048
€ 9.50
92001
920021888
ref: 92001
BOLT,OIL,L=23
920021888
€ 3.50
92001A
920011095
ref: 92001A
BOLT,8X28
920011095
€ 4.50
92022
43067001
ref: 92022
WASHER,10.5X15X1.5
43067001
€ 1.50
92037
920371386
ref: 92037
CLAMP,BRAKE HOSE
€ 8.50
92043
920431013
ref: 92043
PIN
920431013
€ 6.50
92081
920811335
ref: 92081
SPRING,HOSE PROTECTER
920811335
€ 9.50
130
130B0620
ref: 130
BOLT,HEX HEAD,6X20
130B0620
€ 2.50
481
481J2500
ref: 481
CIRCLIP-TYPE-C,25MM
481J2500
€ 3.50
550
550D2015
ref: 550
PIN-COTTER,2.0X15
550D2015
€ 1.00
