BATTERY CASE/TOOL CASE

KZ750F1 SHAFT 1983 USA CANADA / LTD

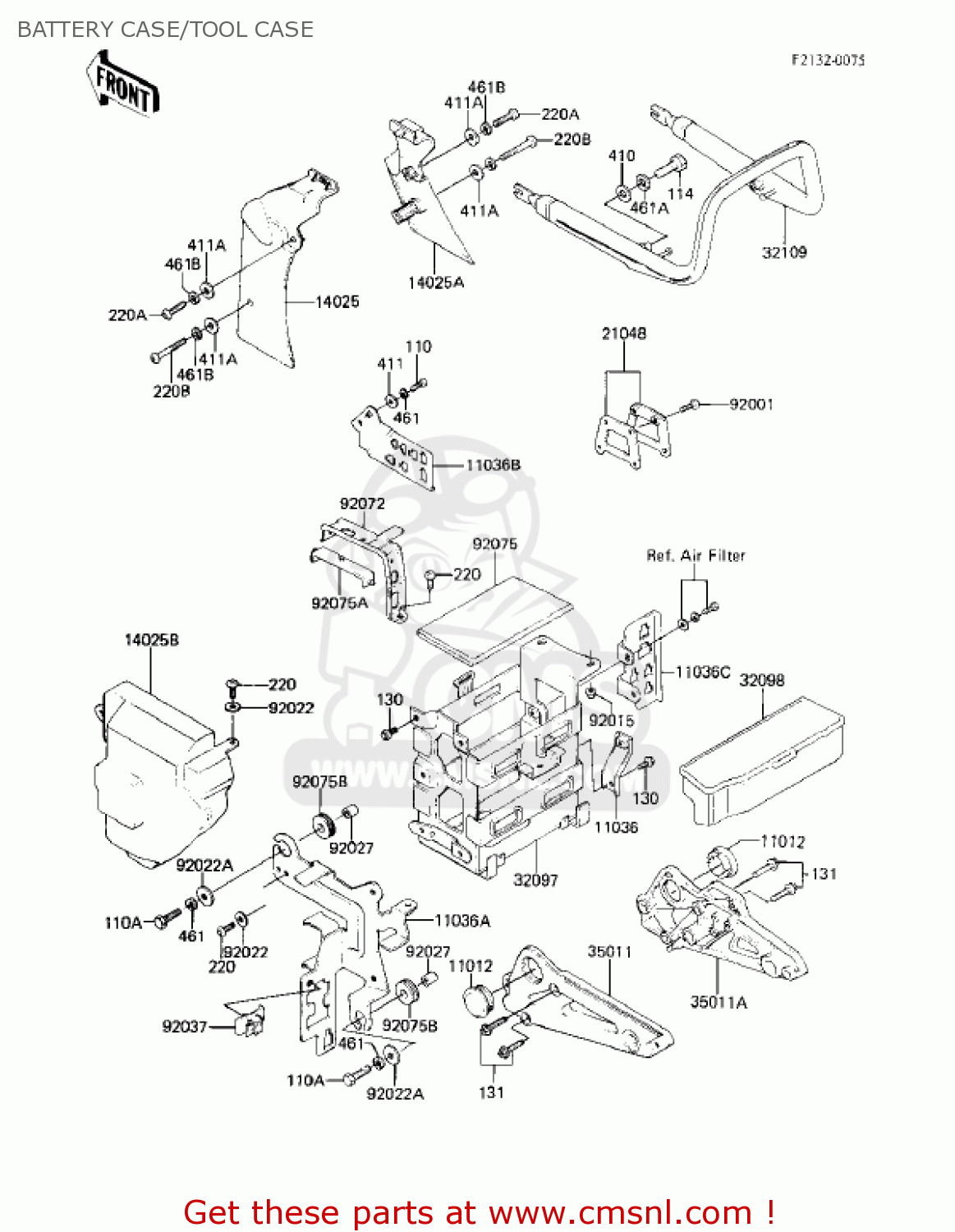

Battery case/tool case diagram KZ750F1 SHAFT 1983 USA CANADA / LTD

BATTERY CASE/TOOL CASE KZ750F1 SHAFT 1983 USA CANADA / LTD
BATTERY CASE/TOOL CASE KZ750F1 SHAFT 1983 USA CANADA / LTD
BATTERY CASE/TOOL CASE KZ750F1 SHAFT 1983 USA CANADA / LTD
prices are in EUR
ref
part #
description
quantity
11012
110121397
ref: 11012
CAP,SWING ARM SHAFT
110121397
€ 4.50
11036
110361345
ref: 11036
BRACKET-A,RESERVOIR
110361345
€ 5.00
11036A
110361497
ref: 11036A
BRACKET-A,ELECTRO BAS
€ 14.00
11036B
110361510
ref: 11036B
BRACKET-A,COUPLER
€ 7.00
11036C
110361511
ref: 11036C
BRACKET-A,COUPLER
€ 5.50
14025
140251468
ref: 14025
FUEL TANK COVER,LH
€ 8.50
14025A
140251469
ref: 14025A
FUEL TANK COVER,RH
€ 8.50
14025B
140251511
ref: 14025B
COVER,ELECTRO BASE
€ 13.50
21048
210481001
ref: 21048
PLATE-COIL
210481001
€ 14.00
32097
320971050
ref: 32097
CASE-BATTERY
€ 53.50
32098
320981021
ref: 32098
CASE-TOOL
€ 19.50
32109
321091040
ref: 32109
FRAME GRIP
€ 187.50
35011
350111150
ref: 35011
MUFFLER STAY,LH
€ 139.50
35011A
350111151
ref: 35011A
MUFFLER STAY,RH
€ 139.50
92001
92001137
ref: 92001
BOLT,HEX HEAD,6M/M
92001137
€ 4.00
92015
920151193
ref: 92015
NUT,FLANGED,6MM
920151193
€ 0.50
92022
92022024
ref: 92022
WASHER,7X16X1.2
92022024
€ 2.50
92022A
92022228
ref: 92022A
WASHER-PLAIN,7MM
92022228
€ 2.50
92027
92027291
ref: 92027
COLLAR,6.5X8.5X14
92027291
€ 2.50
92037
920371340
ref: 92037
CLAMP,LEAD WIRE
920371340
€ 7.50
92072
920721076
ref: 92072
BAND,BATTERY
€ 10.00
92075
920751076
ref: 92075
DAMPER,BATTERY BASE
920751076
€ 6.00
92075A
920751371
ref: 92075A
DAMPER,BATTERY BAND
920751371
€ 7.50
92075B
92075317
ref: 92075B
DAMPER
92075317
€ 2.50
110
110B0612
ref: 110
BOLT-HEX HEAD,6X12
€ 2.50
110A
110B0625
ref: 110A
BOLT-HEX HEAD,6X25
€ 4.00
114
114B0830
ref: 114
BOLT-HEX HEAD,8X30
€ 3.00
130
130B0610
ref: 130
BOLT,FLANGED,6X10
130B0610
€ 0.50
131
131J0835
ref: 131
BOLT-FLANGED,8X35,BLA
131J0835
€ 2.50
220
220B0612
ref: 220
SCREW-PAN HEAD,6X12
220B0612
€ 1.00
220A
220C0625
ref: 220A
SCREW-PAN-CROS,6X25,B
220C0625
€ 2.50
220B
220C0645
ref: 220B
SCREW-PAN-CROS,6X45,B
220C0645
€ 2.50
410
410B0800
ref: 410
WASHER-PLAIN-SMALL,8M
410B0800
€ 0.50
411
411B0600
ref: 411
WASHER-PLAIN,6MM
411B0600
€ 0.50
411A
411F0600
ref: 411A
WASHER-PLAIN,6MM,BLAC
411F0600
€ 0.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
461F0600
€ 0.50
461A
461F0800
ref: 461A
WASHER-SPRING,8MM
461F0800
€ 0.50
461B
461K0600
ref: 461B
WASHER-SPRING
461K0600
€ 0.50
