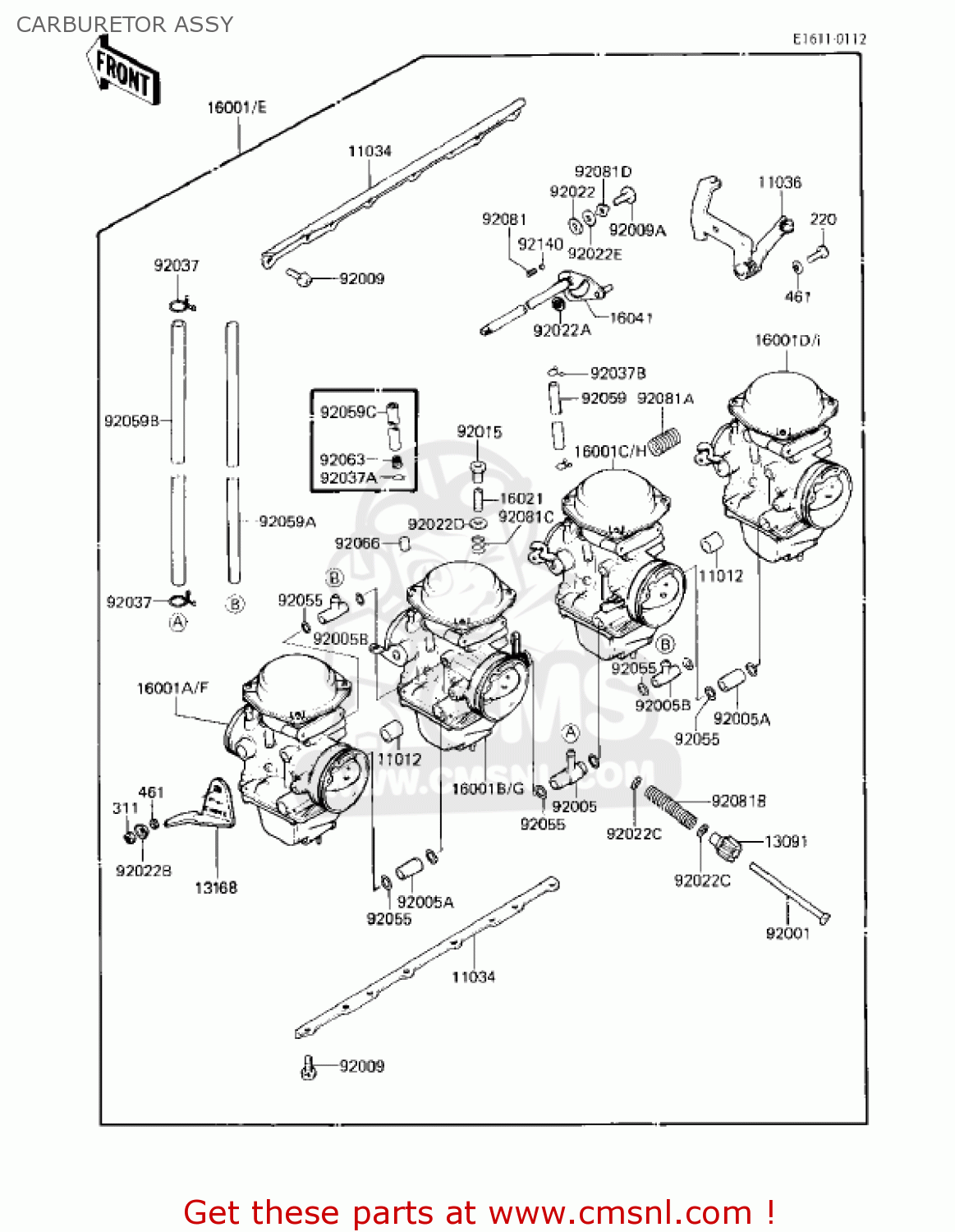

CARBURETOR ASSY

ref

part #

description

quantity

11012

110121130
ref: 11012

TUBE,DUST SEAL

€ 2.00

11034

110341800
ref: 11034

PLATE,CARBURETOR STAY

€ 39.50

11036

110361254
ref: 11036

BRACKET-A,THROTTLE CA

€ 12.00

13091

130911078
ref: 13091

HOLDER,ADJUST

€ 9.00

13168

131681065
ref: 13168

LEVER,CHOKE

€ 8.50

16001

160011739
ref: 16001
US

CARBURETOR

€ 880.50

16001A

160011740
ref: 16001A
US

CARBURETOR,OUTSIDE,LH

€ 274.50

16001B

160011741
ref: 16001B
US

CARBURETOR,INSIDE,LH

€ 274.50

16001C

160011742
ref: 16001C
US

CARBURETOR,INSIDE,RH

€ 274.50

16001D

160011743
ref: 16001D
US

CARBURETOR,OUTSIDE,RH

€ 228.50

16001E

160011744
ref: 16001E
CN

CARBURETOR (Canada)

€ 0.00

16001F

160011745
ref: 16001F
CN

CARBURETOR,LH,OUTSIDE (Canada)

€ 0.00

16001G

160011746
ref: 16001G
CN

CARBURETOR,LH,INSIDE (Canada)

€ 0.00

16001H

160011474
ref: 16001H
CN

CARBURETOR,RH

€ 270.50

16001I

160011748
ref: 16001I
CN

CARBURETOR,RH,OUTSIDE (Canada)

€ 0.00

16021

160211027
ref: 16021

SCREW,SLOTTED

€ 12.00

16041

160411017
ref: 16041

SHAFT,CHOKE LINK

€ 29.50

92001

920011328
ref: 92001

BOLT,HEX HEAD,5X70

€ 6.50

92005

920051026
ref: 92005

FITTING,FUEL TUBE

€ 28.00

92005A

920051027
ref: 92005A

NIPPLE,FUEL

€ 10.50

92005B

920051054
ref: 92005B

AIR VENT FITTING

€ 9.50

92009

920091129
ref: 92009

SCREW,6X16

€ 3.00

92009A

920091183
ref: 92009A

SCREW,LINK SHAFT

€ 7.00

92015

920151118
ref: 92015

NUT,5MM

€ 4.50

92022

920221199
ref: 92022

WASHER,6.1X11X0.8,POL

€ 3.00

92022A

920221200
ref: 92022A

WASHER,6.4X9.4X0.8,PO

€ 2.00

92022B

920221200
ref: 92022B

WASHER,6.4X9.4X0.8,PO

€ 2.00

92022C

920221203
ref: 92022C

WASHER

€ 2.50

92022D

920221204
ref: 92022D

WASHER

€ 2.00

92022E

920221207
ref: 92022E

WASHER,6.5X11X1.2,STE

€ 2.50

92037

920371075
ref: 92037

CLAMP,FUEL INLET TUBE

€ 2.50

92037A

920371201
ref: 92037A
CN

CLAMP

€ 3.00

92037B

920371241
ref: 92037B

CLAMP,TUBE

€ 2.00

92055

920551004
ref: 92055

O RING

€ 2.50

92059

920591173
ref: 92059

TUBE,5X9X200

€ 16.50

92059A

920591203
ref: 92059A

TUBE,6.5X9.5X350

€ 12.50

92059B

920591236
ref: 92059B

TUBE,FUEL

€ 25.00

92059C

920591242
ref: 92059C
CN

TUBE, 4.5X8X210 (Canada)

€ 0.00

92063

920631086
ref: 92063
CN

JET-MAIN,#75

€ 7.50

92066

92068006
ref: 92066
US

RUBBER PLUG

€ 2.50

92066

92068006
ref: 92066
CN

RUBBER PLUG

€ 2.50

92081

920811249
ref: 92081

SPRING

€ 4.00

92081A

920811250
ref: 92081A

SPRING

€ 3.50

92081B

920811251
ref: 92081B

SPRING

€ 3.00

92081C

920811252
ref: 92081C

SPRING

€ 2.50

92081D

920811262
ref: 92081D

SPRING,WAVED WASHER

€ 3.00

92140

921401004
ref: 92140

BALL,STEEL,3/16"

€ 1.50

220

220B0520A
ref: 220

SCREW-PAN HEAD,5X20

€ 0.50

311

311B0500A
ref: 311

NUT,5MM

€ 0.50

461

461F0500
ref: 461

WASHER-SPRING,5MM

€ 0.50
