IGNITION/REGULATOR/RECTIFIER

KZ750B3 1978 USA CANADA / MPH KPH

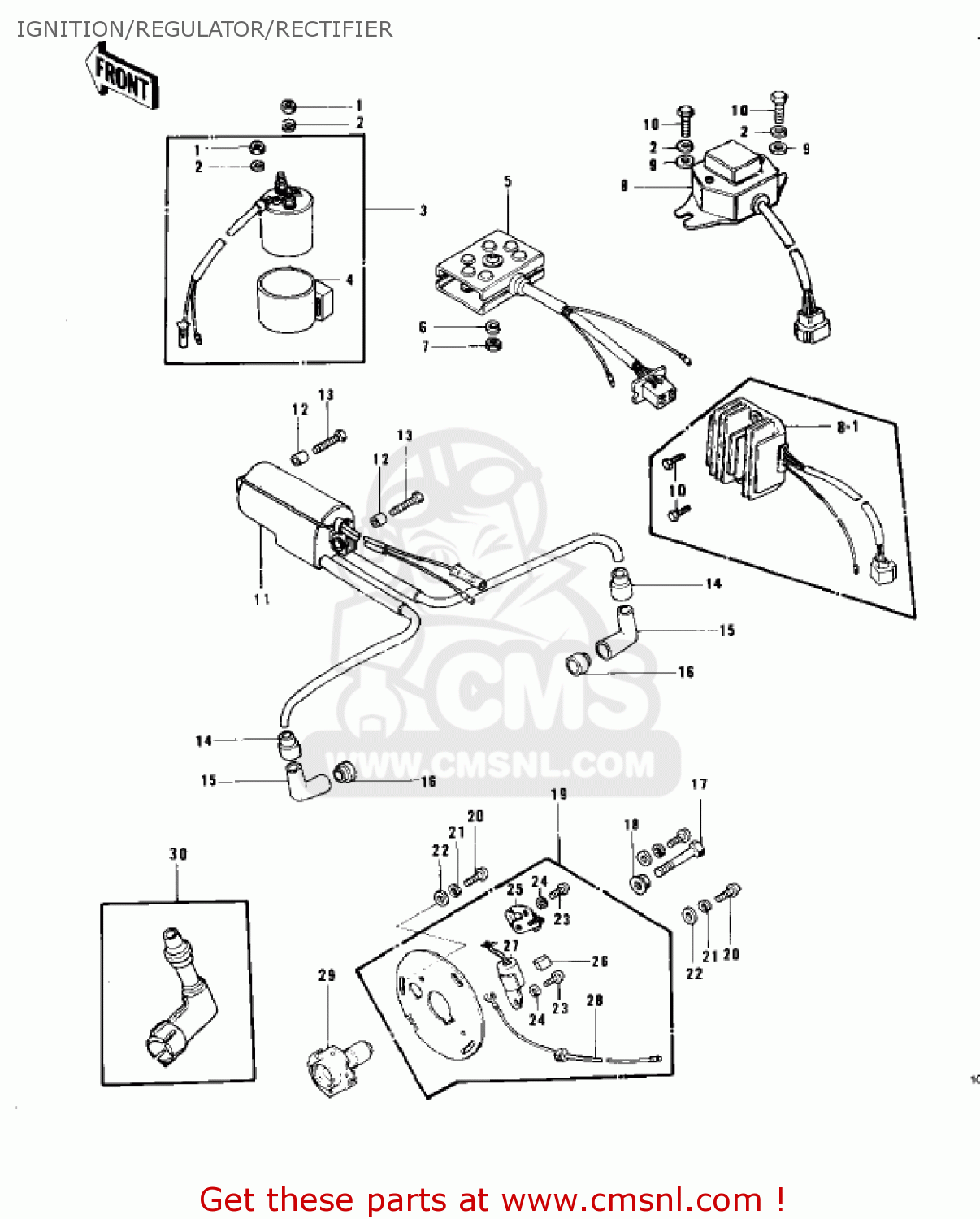

Ignition/regulator/rectifier diagram KZ750B3 1978 USA CANADA / MPH KPH

IGNITION/REGULATOR/RECTIFIER KZ750B3 1978 USA CANADA / MPH KPH
IGNITION/REGULATOR/RECTIFIER KZ750B3 1978 USA CANADA / MPH KPH
IGNITION/REGULATOR/RECTIFIER KZ750B3 1978 USA CANADA / MPH KPH
prices are in EUR
ref
part #
description
quantity
1
312B0600
ref: 1
KZ750-B1/B2
NUT,6MM
312B0600
€ 0.50
1
92017014
ref: 1
KZ750-B3/B4
NUT,LOCK,6MM
92017014
€ 4.00
2
461F0600
ref: 2
KZ750-B1/B2
WASHER-SPRING,6MM
461F0600
€ 0.50
3
21164005
ref: 3
SWITCH ASSY,MAGNETIC
21164005
€ 99.00
4
21064002
ref: 4
DAMPER,MAGNETIC SWITC
21064002
€ 13.50
5
21061021
ref: 5
KZ750-B1/B2
RECTIFIER
21061021
€ 209.00
6
461F0600
ref: 6
KZ750-B1/B2
WASHER-SPRING,6MM
461F0600
€ 0.50
7
311B0600
ref: 7
KZ750-B1/B2
NUT,6MM
311B0600
€ 0.50
8
21066027
ref: 8
KZ750-B1/B2
REGULATOR
21066027
€ 115.50
8-1
21066029
ref: 8-1
KZ750-B3/B4
REGULATOR-VOLTAGE
21066029
€ 237.50
9
411B0600
ref: 9
KZ750-B1/B2
WASHER-PLAIN,6MM
411B0600
€ 0.50
10
112G0612
ref: 10
KZ750-B1/B2
BOLT-UPSET
112G0612
€ 2.50
10
112G0614
ref: 10
KZ750-B3/B4
BOLT-UPSET,6X14
112G0614
€ 2.50
11
211211174
ref: 11
COIL-IGNITION
211211174
€ 204.50
12
92027276
ref: 12
KZ750-B1/B2
COLLAR,IGNITION COIL
92027276
€ 4.00
12
92027276
ref: 12
KZ750-B3/B4
COLLAR,IGNITION COIL
92027276
€ 4.00
13
92003170
ref: 13
BOLT,IGNITION COIL
€ 3.00
14
21132005
ref: 14
GROMMET,SPARK PLUG CP
21132005
€ 2.50
15
211301007
ref: 15
CAP-SPARK PLUG,RTFM20
211301007
€ 24.00
16
21131004
ref: 16
GROMMET,PLUG CAP
21131004
€ 7.00
17
920011397
ref: 17
BOLT,8X63
920011397
€ 1.50
18
92022244
ref: 18
WASHER,BREAKER GOVERN
92022244
€ 9.50
19
210081013
ref: 19
KZ750-B1/B2
BREAKER ASSY,CONTACT
210081013
€ 25.00
19
210081013
ref: 19
KZ750-B3/B4
BREAKER ASSY,CONTACT
210081013
€ 25.00
20
220B0512
ref: 20
SCREW-PAN-CROS
220B0512
€ 0.50
21
461F0500
ref: 21
WASHER-SPRING,5MM
461F0500
€ 0.50
22
411B0500
ref: 22
WASHER-PLAIN,5MM
411B0500
€ 0.50
23
220B0406
ref: 23
SCREW-PAN-CROS,4X6
220B0406
€ 2.50
24
461F0400
ref: 24
WASHER-SPRING,4MM
461F0400
€ 0.50
25
21008025
ref: 25
KZ750-B1/B2
BREAKER,CONTACT
21008025
€ 41.00
25
21008027
ref: 25
KZ750-B3/B4
BREAKER,CONTACT
21008027
€ 43.00
26
21019005
ref: 26
BRUSH,OIL
21019005
€ 3.00
27
21013034
ref: 27
KZ750-B1/B2
CONDENSER
21013034
€ 20.00
27
210131002
ref: 27
KZ750-B3/B4
CONDENSER
210131002
€ 20.00
28
260011040
ref: 28
KZ750-B1/B2
WIRING HARNESS,BREAKE
260011040
€ 19.00
28
260011040
ref: 28
KZ750-B3/B4
WIRING HARNESS,BREAKE
260011040
€ 19.00
29
211481004
ref: 29
KZ750-B1/B2
GOVERNOR-BREAKER
211481004
€ 128.00
29
211481004
ref: 29
KZ750-B3/B4
GOVERNOR-BREAKER
211481004
€ 128.00
30
21160005
ref: 30
CANADA KZ750-B3/B4
CAP-ASSY-PLUG
21160005
€ 29.00
