CYLINDER/PISTONS/CRANKSHAFT

KZ750B3 1978 USA CANADA / MPH KPH

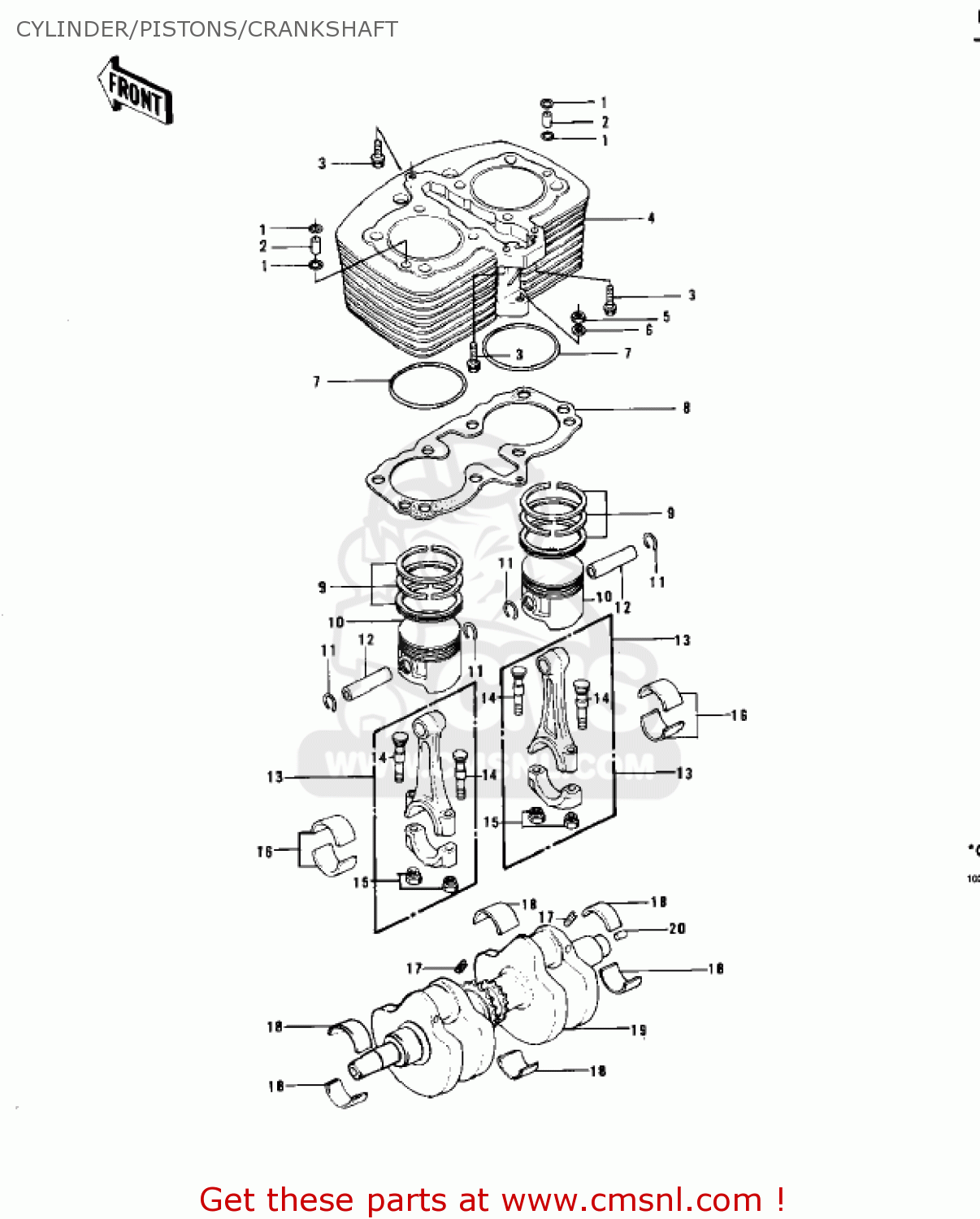

Cylinder/pistons/crankshaft diagram KZ750B3 1978 USA CANADA / MPH KPH

CYLINDER/PISTONS/CRANKSHAFT KZ750B3 1978 USA CANADA / MPH KPH
CYLINDER/PISTONS/CRANKSHAFT KZ750B3 1978 USA CANADA / MPH KPH
CYLINDER/PISTONS/CRANKSHAFT KZ750B3 1978 USA CANADA / MPH KPH
prices are in EUR
ref
part #
description
quantity
1
92055094
ref: 1
RING-O
92055094
€ 6.00
2
92042039
ref: 2
PIN,DOWEL
92042039
€ 3.00
3
92003159
ref: 3
BOLT,HEX HEAD,6X34
92003159
€ 2.50
4
110051502H
ref: 4
CYLINDER,BARREL
€ 414.00
5
311B0600
ref: 5
NUT,6MM
311B0600
€ 0.50
6
410B0600
ref: 6
WASHER-PLAIN-SMALL,6M
410B0600
€ 0.50
7
92055081
ref: 7
'O' RING
92055081
€ 12.00
8
11009042
ref: 8
GASKET,CYLINDER BASE (MCA)
11009042
€ 10.50
9
13008055
ref: 9
STD
RING-SET-PISTON,STD
13008055
€ 67.50
9
13025059
ref: 9
RING-SET-PISTON L,O/S
13025059
€ 70.50
9
13024059
ref: 9
RING-SET-PISTON LL,O/
13024059
€ 80.00
10
130011086
ref: 10
STD
PISTON-ENGINE,STD
130011086
€ 50.50
10
130291039
ref: 10
PISTON-ENGINE L,O/S 0
130291039
€ 70.50
10
130271038
ref: 10
PISTON-ENGINE LL,0/S
€ 64.50
11
92036008
ref: 11
CIRCLIP-PISTON PIN
92036008
€ 0.50
12
13002031
ref: 12
PIN-PISTON
13002031
€ 17.50
13
13032051II
ref: 13
I.D. MARK I
CONNECTING ROD ASSY,I
€ 189.00
13
13032051II
ref: 13
I.D. MARK I
CONNECTING ROD ASSY,I
€ 189.00
13
13032051JJ
ref: 13
I.D. MARK J
CONNECTING ROD ASSY
€ 189.00
13
13032051JJ
ref: 13
I.D. MARK J
CONNECTING ROD ASSY
€ 189.00
13
13032051KK
ref: 13
I.D. MARK K
CONNECTING ROD ASSY
€ 189.00
13
13032051KK
ref: 13
I.D. MARK K
CONNECTING ROD ASSY
€ 189.00
13
13032051LL
ref: 13
I.D. MARK L
CONNECTING ROD ASSY
€ 189.00
13
13032051LL
ref: 13
I.D. MARK L
CONNECTING ROD ASSY
€ 189.00
14
92001170
ref: 14
BOLT,CONNECTING ROD
92001170
€ 7.00
15
920151311
ref: 15
NUT,FLANGED,8MM
920151311
€ 4.50
16
13034043
ref: 16
BLACK
METAL,CONROD,BRG
13034043
€ 14.50
16
13034045
ref: 16
BLUE
METAL,CONNECTING ROD,
13034045
€ 14.50
16
13034046
ref: 16
BROWN
METAL,CONROD BRG
13034046
€ 13.00
17
291H0812
ref: 17
SCREW,8X12
€ 2.00
18
13034044
ref: 18
METAL,CRANKSHAFT,BRG
13034044
€ 14.50
19
130311002
ref: 19
KZ750-B1/B2
CRANK SHAFT ASSY
€ 796.00
19
130311005
ref: 19
KZ750-B3/B4
CRANKSHAFT ASSY
€ 509.50
20
551A0408
ref: 20
KZ750-B1/B2
PIN-DOWEL,4X8
551A0408
€ 0.50
20
555A0408
ref: 20
KZ750-B3/B4
PIN-SPRING,4X8
555A0408
€ 2.50
