CHASSIS ELECTRICAL EQUIPMENT

KZ750B3 1978 USA CANADA / MPH KPH

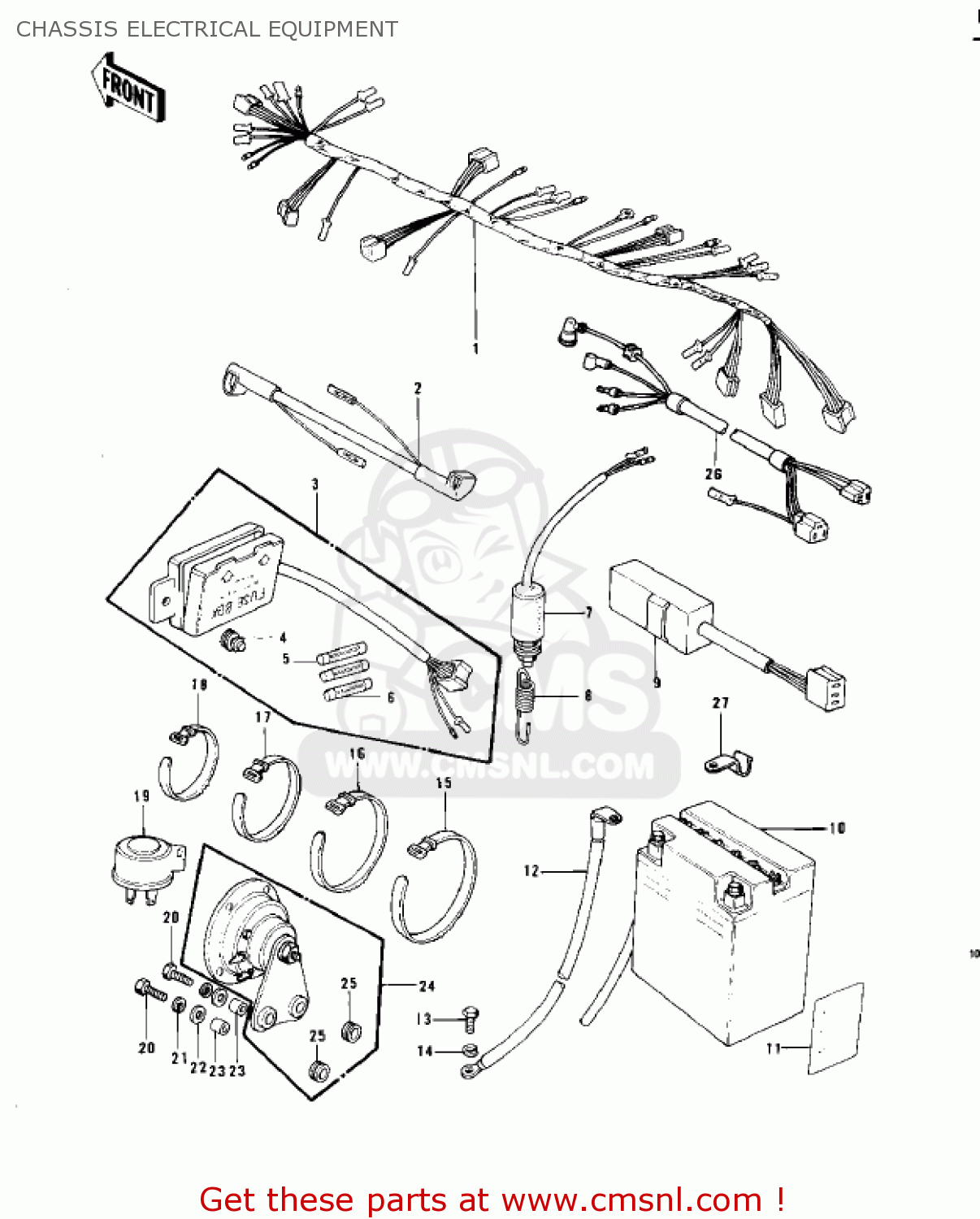

Chassis electrical equipment diagram KZ750B3 1978 USA CANADA / MPH KPH

CHASSIS ELECTRICAL EQUIPMENT KZ750B3 1978 USA CANADA / MPH KPH
CHASSIS ELECTRICAL EQUIPMENT KZ750B3 1978 USA CANADA / MPH KPH
CHASSIS ELECTRICAL EQUIPMENT KZ750B3 1978 USA CANADA / MPH KPH
prices are in EUR
ref
part #
description
quantity
1
26001128
ref: 1
KZ750-B1
WIRING HARNESS,MAIN
€ 175.50
1
26001148
ref: 1
KZ750-B2
WIRING HARNESS, MAIN
€ 209.50
1
260011023
ref: 1
KZ750-B3
WIRING HARNESS,MAIN
€ 158.50
1
260011062
ref: 1
KZ750-B4
WIRING HARNESS,MAIN
€ 140.50
2
26010040
ref: 2
KZ750-B1/B2
WIRE,LEAD
€ 6.50
2
260111145
ref: 2
KZ750-B3/B4
WIRE-LEAD,BATTERY
€ 20.00
3
26004035
ref: 3
FUSE-ASSY
26004035
€ 53.50
4
92075279
ref: 4
DAMPER,FUSE
92075279
€ 3.50
5
26006005
ref: 5
FUSE 20A
26006005
€ 3.50
6
26006003
ref: 6
FUSE 10A
26006003
€ 3.00
7
27010015
ref: 7
SWITCH,BRAKE LAMP
27010015
€ 23.00
8
27011011
ref: 8
SPRING,BRAKE LAMP SW
27011011
€ 5.50
9
28019001
ref: 9
SWITCH,OUTAGE INDICTR
28019001
€ 46.00
10
260121008
ref: 10
BATTERY,12V13AH W/LAB
€ 101.50
11
560401036
ref: 11
WARNING, BATTERY
€ 2.00
12
26010041
ref: 12
KZ750-B1/B2
WIRE,LEAD
€ 21.00
12
260111146
ref: 12
KZ750-B3/B4
WIRE-LEAD,BATTERY
€ 16.50
13
112G0612
ref: 13
BOLT-UPSET
112G0612
€ 2.50
14
461F0600
ref: 14
WASHER-SPRING,6MM
461F0600
€ 0.50
15
92072032
ref: 15
KZ750-B1
BAND,LONG
92072032
€ 3.00
16
92072056
ref: 16
KZ750-B1
BAND,RUBBER
92072056
€ 3.00
16
92072056
ref: 16
KZ750-B2/B3/B4
BAND,RUBBER
92072056
€ 3.00
17
92072031
ref: 17
KZ750-B1
BAND,MIDDLE
92072031
€ 3.00
18
92072030
ref: 18
KZ750-B1
BAND,SHORT
92072030
€ 3.00
18
92072030
ref: 18
KZ750-B2/B3/B4
BAND,SHORT
92072030
€ 3.00
19
27002011
ref: 19
RELAY-ASSY,TURN SIGNA
27002011
€ 69.50
20
115G0825
ref: 20
KZ750-B1
BOLT-HEX,HEAD,8X25
115G0825
€ 3.00
20
114G0828
ref: 20
KZ750-B2/B3/B4
BOLT-SMALL,8X28
€ 2.50
21
461F0800
ref: 21
WASHER-SPRING,8MM
461F0800
€ 0.50
22
411B0800
ref: 22
WASHER-PLAIN,8MM
411B0800
€ 0.50
23
92027271
ref: 23
COLLAR,HORN FITTING
92027271
€ 2.00
24
27003074
ref: 24
HORN
27003074
€ 55.50
25
92075294
ref: 25
DAMPER RUBBER,HORN MT
92075294
€ 2.50
26
260011024
ref: 26
KZ750-B3/B4
WIRING HARNESS,SUB
€ 28.00
27
920371044
ref: 27
KZ750-B3/B4
CLAMP
€ 2.50
