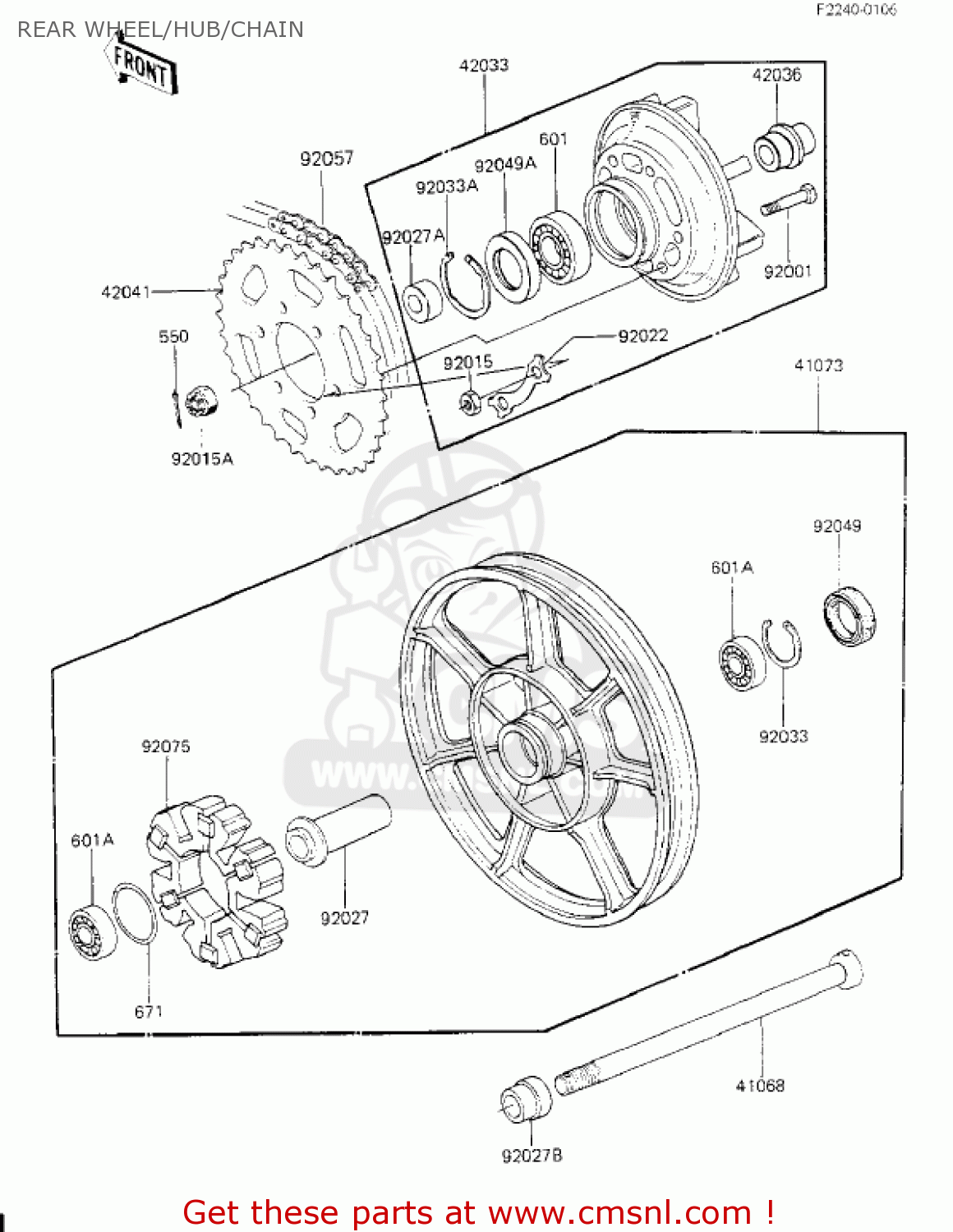

REAR WHEEL/HUB/CHAIN

ref

part #

description

quantity

41068

410681086
ref: 41068

AXLE,RR

€ 49.00

41073

41073114021
ref: 41073

WHEEL-ASSY,RR,SOLID,F

€ 652.50

42033

420331047
ref: 42033

COUPLING-ASSY,RR HUB,

€ 186.50

42036

420361036
ref: 42036

SLEEVE,RR HUB COUPLIN

€ 20.50

42041

420411010
ref: 42041

REAR SPROCKET,33T

€ 51.00

92001

92001161
ref: 92001

BOLT,10X41

€ 3.00

92015

42045005
ref: 92015

NUT,10MM

€ 5.00

92015A

92015055
ref: 92015A

NUT,16MM

€ 8.00

92022

920221212
ref: 92022

WASHER,LOCK

€ 4.00

92027

920271261
ref: 92027

COLLAR,RR HUB L=90M/M

€ 9.50

92027A

920271262
ref: 92027A

COLLAR,AXLE,RR,LH,L=1

€ 16.50

92027B

920271263
ref: 92027B

COLLAR,L=31

€ 15.00

92033

920331042
ref: 92033

CIRCLIP,47M/M

€ 4.00

92033A

920331044
ref: 92033A

CIRCLIP 62 M/M

€ 7.50

92049

920491053
ref: 92049

OIL SEAL

€ 1.50

92049A

92050027
ref: 92049A

OIL SEAL

€ 13.50

92057

920571081
ref: 92057

CHAIN,DRIVE,EK63OSX88

€ 129.50

92075

42014033
ref: 92075

DAMPER,RR HUB SHOCK,1

€ 85.50

550

550D4035
ref: 550

PIN-COTTER,4.0X35

€ 1.00

601

601B6206
ref: 601

BEARING-BALL,#6206C3

€ 19.50

601A

601B6303ZZ
ref: 601A

BEARING-BALL,#6303ZZC

€ 32.50

671

671B2565
ref: 671

O RING,65MM

€ 6.00

all assemblies
