HEADLIGHT
KZ700A1 1984 USA CALIFORNIA

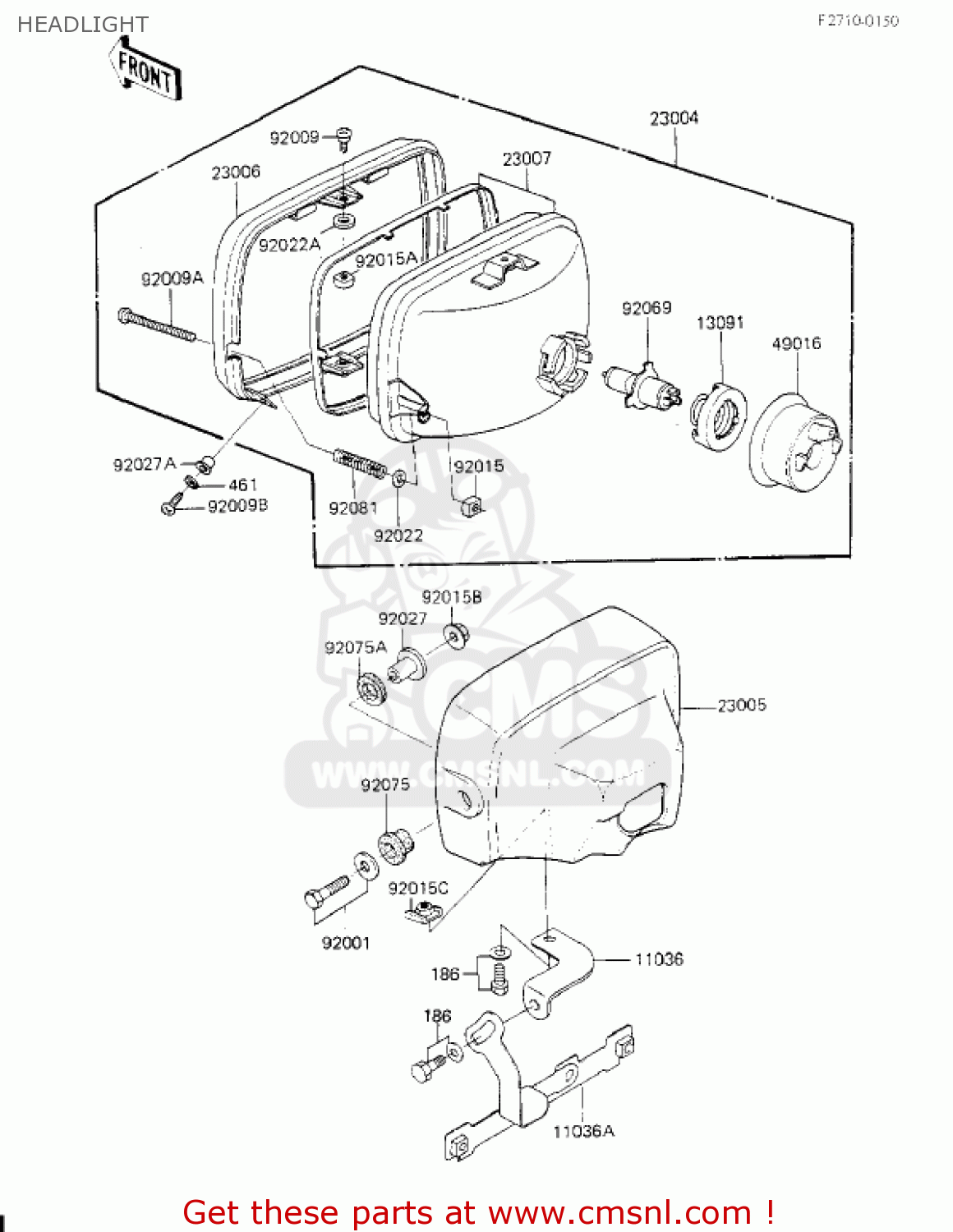

Headlight diagram KZ700A1 1984 USA CALIFORNIA
HEADLIGHT KZ700A1 1984 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
11036
110361354
ref: 11036
BRACKET-A,HEAD LAMP,B
€ 6.00
11036A
110361413
ref: 11036A
BRACKET-A,HEAD LAMP B
€ 12.50
13091
130911036
ref: 13091
HOLDER,HEAD LAMP SOCK
€ 12.50
23004
230041075
ref: 23004
LAMP-HEAD
€ 584.00
23005
23005102421
ref: 23005
BODY-COMP-HEAD LAMP,F
€ 87.00
23006
230061005
ref: 23006
RIM-LAMP
€ 56.00
23007
230071041
ref: 23007
LENS-COMP,HEAD LAMP
€ 201.50
49016
490161023
ref: 49016
COVER-SEAL,HEAD LAMP
€ 11.50
92001
920011910
ref: 92001
BOLT,FLANGED,8X35
€ 4.50
92009
23019023
ref: 92009
SCREW-PAN HEAD,5X12
€ 3.50
92009A
920091047
ref: 92009A
SCREW,HEAD LAMP LENS
€ 3.00
92009B
920091693
ref: 92009B
SCREW,5X16
€ 2.50
92015
23020018
ref: 92015
NUT,4MM,FOCUS ADJUST
€ 3.00
92015A
23020023
ref: 92015A
NUT,5MM
€ 3.00
92015B
920151014
ref: 92015B
NUT,8MM
€ 0.50
92015C
920151050
ref: 92015C
NUT,HEAD LAMP BODY
€ 6.00
92022
23021004
ref: 92022
WASHER,4.1X8X0.8
€ 2.00
92022A
23021012
ref: 92022A
WASHER
€ 3.00
92027
920271131
ref: 92027
COLLAR,HEAD LAMP FITT
€ 6.00
92027A
920271503
ref: 92027A
COLLAR,HEAD LAMP,BLAC
€ 2.50
92069
920691002
ref: 92069
BULB,12V-60155W
€ 15.00
92075
920751109
ref: 92075
DAMPER,HEAD LAMP FITT
€ 4.00
92075A
920751110
ref: 92075A
DAMPER,HEAD LAMP FITT
€ 3.00
92081
920811103
ref: 92081
SPRING,HEAD LAMP LENS
€ 3.00
186
186C0614
ref: 186
BOLT-UPSET-WP
€ 2.50
461
461K0500
ref: 461
WASHER-SPRING,5MM,BLA
€ 0.50
