FRAME FITTINGS
KZ700A1 1984 USA CALIFORNIA

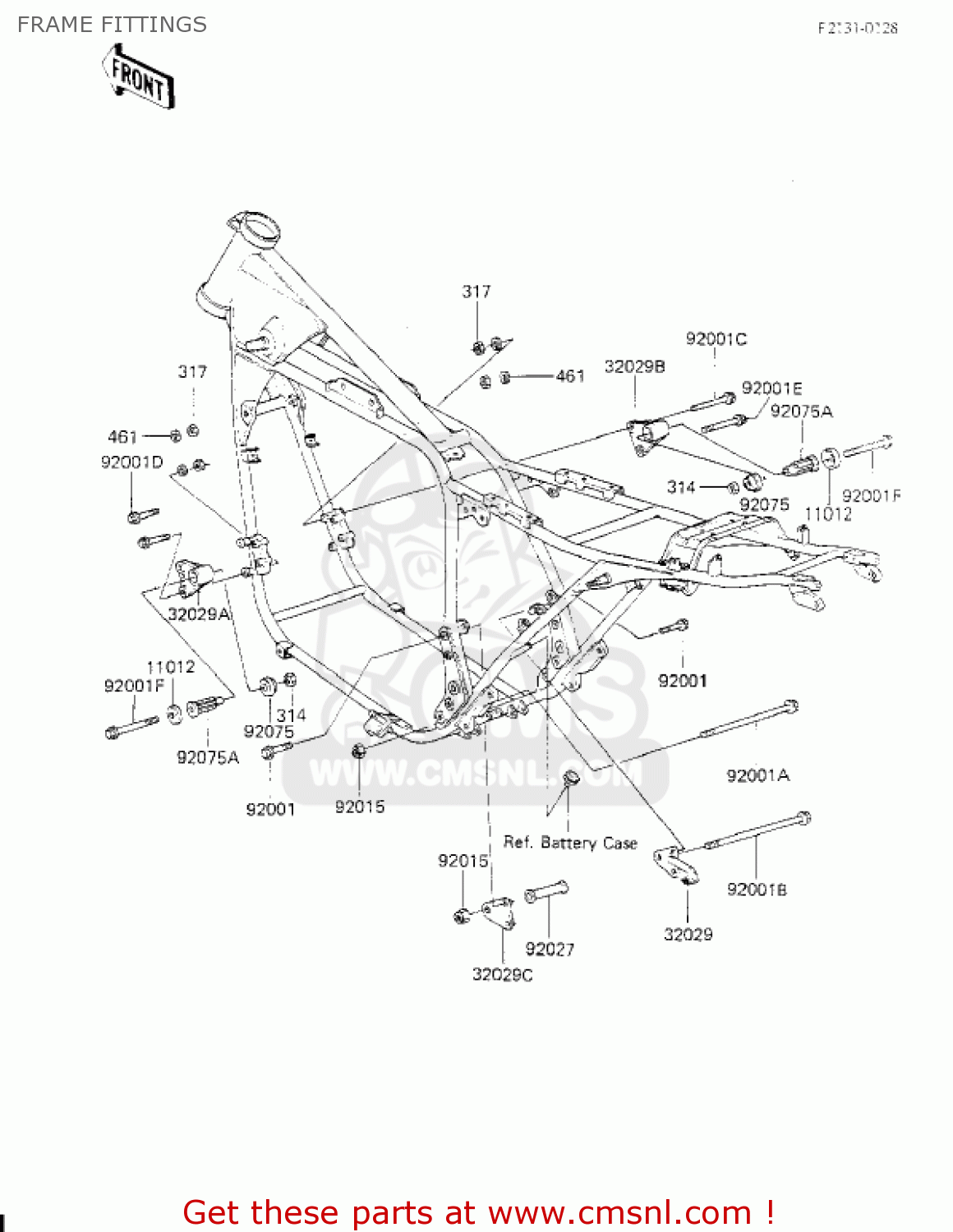

Frame fittings diagram KZ700A1 1984 USA CALIFORNIA
FRAME FITTINGS KZ700A1 1984 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
11012
110121228
ref: 11012
CAP,ENGINE BRACKET
€ 4.50
32029
320291129
ref: 32029
BRACKET-ENGINE,RR,RH
€ 11.50
32029A
320291192
ref: 32029A
BRACKET-ENGINE,FR,LH
€ 30.00
32029B
320291193
ref: 32029B
BRACKET-ENGINE,FR,RH
€ 28.50
32029C
32030064
ref: 32029C
PLATE,REAR ENG.MTY,LH
€ 6.50
92001
920011612
ref: 92001
BOLT,FLANGED,8X40,BLA
€ 3.00
92001A
920011622
ref: 92001A
BOLT,FLANGED,10X225,B
€ 15.00
92001B
920011623
ref: 92001B
BOLT,FLANGED,10X250
€ 12.50
92001C
920011640
ref: 92001C
BOLT,FLANGED,8X80,BLA
€ 3.00
92001D
920011641
ref: 92001D
BOLT,FLANGED,8X55,BLA
€ 4.50
92001E
920011642
ref: 92001E
BOLT,FLANGED,8X75,BLA
€ 4.50
92001F
920011751
ref: 92001F
BOLT,FLANGED,10X105,B
€ 7.00
92015
920151189
ref: 92015
NUT,LOCK,10MM,BLACK
€ 4.50
92027
920271425
ref: 92027
COLLAR,L=54,BLACK
€ 12.00
92075
920751274
ref: 92075
DAMPER,ENG MOUNT,SIDE
€ 11.00
92075A
920751377
ref: 92075A
DAMPER,ENGINE BRACKET
€ 19.50
314
314C1000
ref: 314
NUT-HEX-FINE,10MM,BLA
€ 2.50
317
317C0800
ref: 317
NUT-HEX-SMALL,8MM,BLA
€ 0.50
461
461K0800
ref: 461
WASHER-SPRING,8MM,BLA
€ 1.50
