TRANSMISSION
KZ650D1 SR 1978 USA CANADA

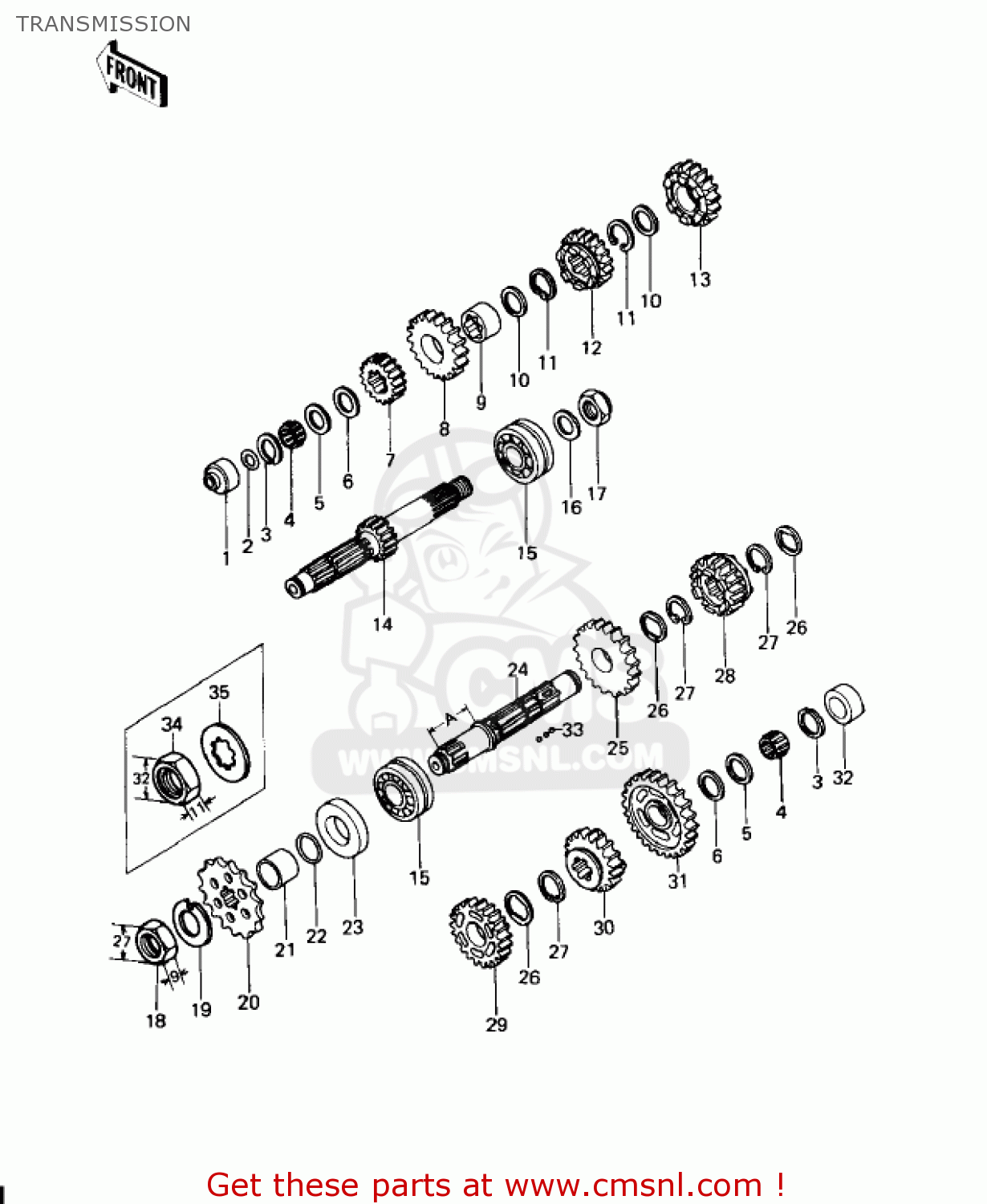

Transmission diagram KZ650D1 SR 1978 USA CANADA
TRANSMISSION KZ650D1 SR 1978 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
92028179
ref: 1
BUSHING,INPUT SHAFT
€ 57.50
2
670B1507
ref: 2
O RING,7MM
€ 1.00
3
92033015
ref: 3
CIRCLIP
€ 2.50
4
920461030
ref: 4
BEARING-NEEDLE,VS20/1
€ 23.00
5
92022112
ref: 5
STEEL
WASHER,20.5X30X1,STEE
€ 6.00
5
92022144
ref: 5
STEEL
SHIM-KICK SHAFT
€ 4.50
5
920221026
ref: 5
STEEL
WASHER,20.3X30X0.7,ST
€ 4.00
6
92022113
ref: 6
PHOSPHOR-BRONZE
WASHER,20.5X30X1
€ 6.00
7
13130041
ref: 7
2ND GEAR,DRIVE
€ 69.50
8
131291045
ref: 8
TOP GEAR,DRIVE SHAFT
€ 50.50
9
920281007
ref: 9
BUSHING,INPUT TOP GEA
€ 26.50
10
92022161
ref: 10
WASHER-THRUST,25MM
€ 7.00
11
92033026
ref: 11
CIRCLIP
€ 6.00
12
131291032
ref: 12
3RD GEAR,DRIVE SHAFT
€ 90.00
13
131291044
ref: 13
GEAR,INPUT 4TH,25T
€ 87.50
14
13127051
ref: 14
SHAFT,DRIVE
€ 89.50
15
92045035
ref: 15
BEARING-BALL,83993SH2
€ 66.50
16
92125002
ref: 16
WASHER,SPRING,20MM
€ 8.50
17
920151555
ref: 17
NUT,20MM
€ 9.00
18
92016028
ref: 18
USE FOR 13128-1005
NUT
€ 9.50
19
92024044
ref: 19
USE FOR 13128-1005
WASHER,CLAW,20.5X36X1
€ 8.00
20
13144063
ref: 20
SPROCKET-OUTPUT,16T
€ 34.00
20
131441009
ref: 20
RACING USE ONLY
SPROCKET-OUTPUT,17T(#
€ 29.00
21
92027288
ref: 21
COLLAR,25X32X23.5
€ 22.50
22
92055035
ref: 22
O RING
€ 3.00
23
92050024
ref: 23
OIL SEAL SC325210
€ 5.00
24
131285005
ref: 24
E/NO. 000101~003008
SHAFT,OUTPUT
€ 135.00
24
131281012
ref: 24
E/NO. 003009~
SHAFT,OUTPUT
€ 136.00
25
131291047
ref: 25
2ND GEAR,OUTPUT SHAFT
€ 107.00
26
92024069
ref: 26
WASHER,TOOTHED,30.5X3
€ 3.50
27
480J3000
ref: 27
CIRCLIP-TYPE-C,30MM
€ 3.50
28
131291033
ref: 28
TOP GEAR,OUTPUT SHAFT
€ 59.50
29
131291048
ref: 29
3RD GEAR,OUTPUT SHAFT
€ 100.00
30
131291049
ref: 30
4TH GEAR,OUTPUT SHAFT
€ 107.00
31
131291046
ref: 31
GEAR,OUTPUT LOW,35T
€ 105.00
32
92028180
ref: 32
BUSHING,OUTPUT SFT
€ 21.50
33
600A0500
ref: 33
BALL-STEEL,5/32
€ 0.50
34
920151254
ref: 34
USE FOR 13128-1012
NUT,20MM
€ 10.50
35
922001065
ref: 35
USE FOR 13128-1012
WASHER
€ 4.50
