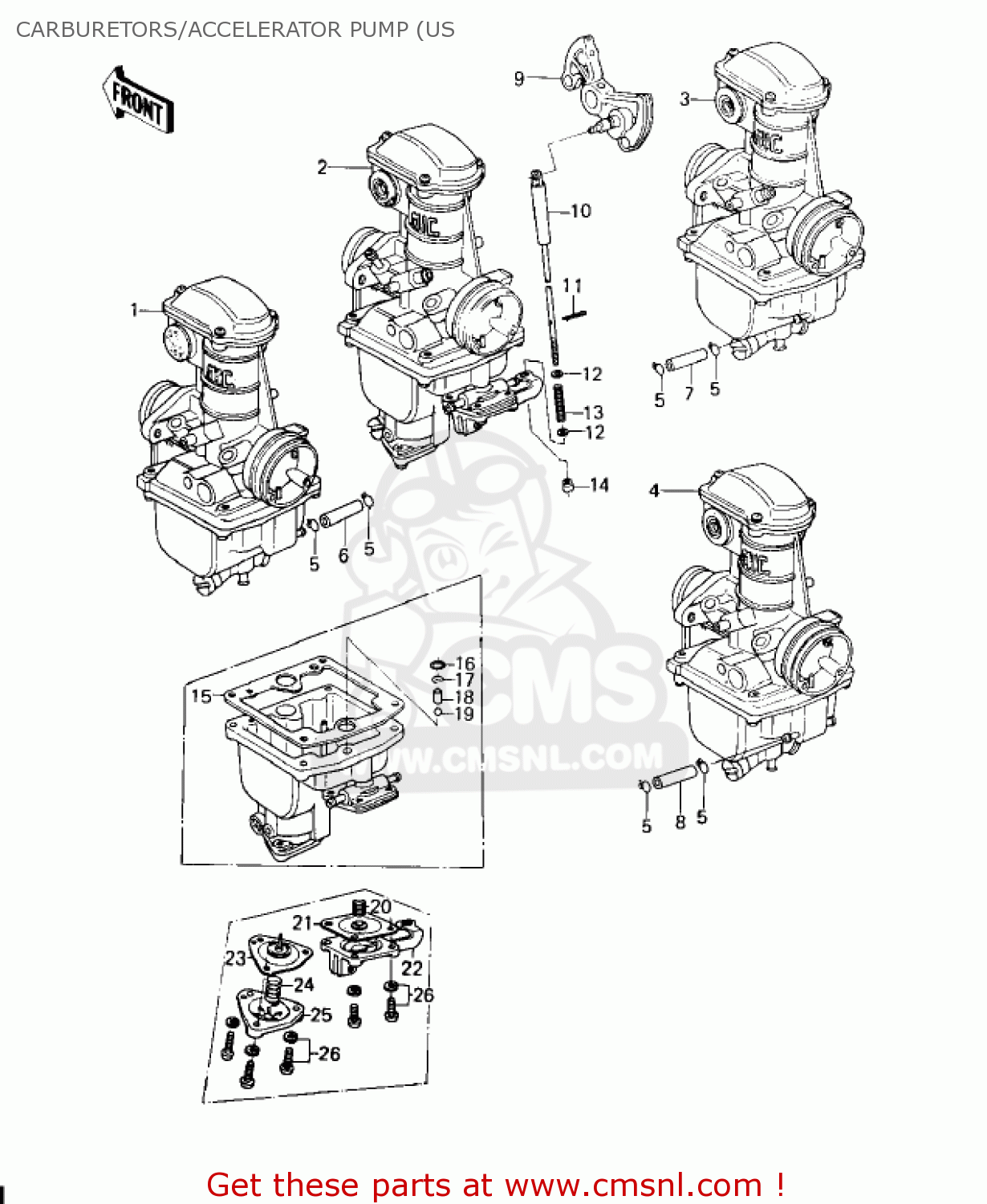

CARBURETORS/ACCELERATOR PUMP (US

ref

part #

description

quantity

1

160011122
ref: 1

CARBURETOR,OUTSIDE,LH

€ 253.50

2

160011123
ref: 2

CARBURETOR,INSIDE,LH

€ 310.50

3

160011124
ref: 3

CARBURETOR,INSIDE,RH

€ 253.50

4

160011125
ref: 4

CARBURETOR,OUTSIDE,RH

€ 310.50

5

920371124
ref: 5

CLAMP,TUBE

€ 4.00

6

920591072
ref: 6

TUBE,3.5X7.5X47.5

€ 7.00

7

920591071
ref: 7

TUBE,

€ 14.00

8

920591072
ref: 8

TUBE,3.5X7.5X47.5

€ 7.00

9

132361014
ref: 9

THROTTLE CABLE PULLEY

€ 15.50

10

461021007
ref: 10

PUMP ROD ASSEMBLY

€ 24.50

11

550D1006
ref: 11

COTTER PIN,1.0X6

€ 2.00

12

920221138
ref: 12

PUMP ROD WASHER

€ 2.00

13

920811138
ref: 13

SPRING, PUMP ROD

€ 4.50

14

920151075
ref: 14

NUT, PUMP ROD

€ 5.50

15

110091562
ref: 15

GASKET,FLOAT CHAMBER (NAS)

€ 12.50

16

16038016
ref: 16

GASKET,O-RING

€ 2.50

17

920371123
ref: 17

CLAMP,SPRING,CHECK VA

€ 3.50

18

130421004
ref: 18

WEIGHT,PUMP,CHECK VAL

€ 3.50

19

921401003
ref: 19

BALL,STEEL,5/32

€ 3.50

20

920811139
ref: 20

PUMP DIAPHRAGM SPRING

€ 2.00

21

430281012
ref: 21

DIAPHRAGM,PUMP

€ 64.50

22

140251139
ref: 22

PUMP COVER ASSEMBLY

€ 40.50

23

430281010
ref: 23

DIAPHRAGM,SENSOR

€ 86.50

24

920811137
ref: 24

SENSOR DIAPHRAGM SPRING

€ 2.50

25

140251121
ref: 25

COVER,SENSOR CARBURET

€ 19.00

26

223B0414
ref: 26

SCREW PAN-WS-CROS

€ 2.50

all assemblies
