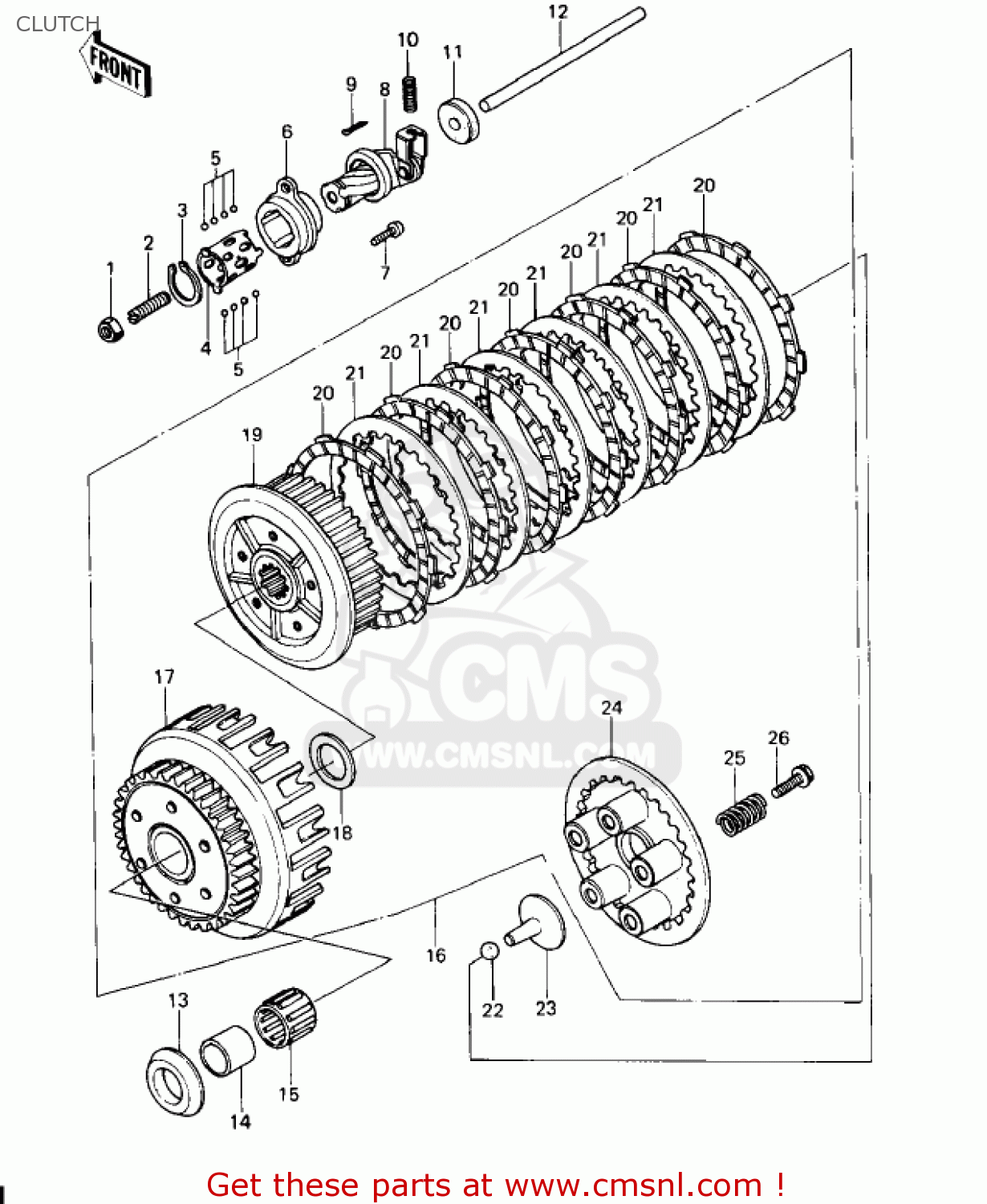

CLUTCH

ref

part #

description

quantity

1

318B0800
ref: 1

NUT,8MM

€ 0.50

2

92014014
ref: 2

SCREW-SLOTTED,8X25

€ 4.00

3

480J1500
ref: 3

CIRCLIP-TYPE-C,15MM

€ 1.00

4

13197004
ref: 4

RETAINER

€ 1.00

5

600A0400
ref: 5

BALL-STEEL,1/8

€ 2.00

6

13118011
ref: 6

OUTER,CLUTCH REREASEL

€ 14.00

7

220B0616
ref: 7

SCREW-PAN HEAD,6X16

€ 2.50

8

13102027
ref: 8

INNER, CLUTCH RELEASE

€ 37.50

9

550D1615
ref: 9

PIN-COTTER,1.6X15

€ 1.50

10

92081069
ref: 10

SPRING-CLUTCH RELEASE

€ 4.50

11

92050048
ref: 11

OIL SEAL,TC7187

€ 15.00

12

13116035
ref: 12

ROD-PUSH,CLUTCH

€ 27.50

13

92026116
ref: 13

SPACER,THRUST,T=5.5MM

€ 12.00

14

92028178
ref: 14

BUSHING,CLUTCH

€ 17.00

15

92046028
ref: 15

BEARING-NEEDLE,KTV323

€ 20.50

16

130811043
ref: 16

CLUTCH ASSY

€ 401.50

17

130951022
ref: 17

HOUSING,CLUTCH

€ 423.00

18

92026022
ref: 18

SPACER,25.5X47X2.5

€ 6.50

19

13087043
ref: 19

HUB-CLUTCH

€ 131.00

20

13088030
ref: 20

PLATE-FRICTION (NAS)

€ 14.50

21

13089022
ref: 21

PLATE-CLUTCH (NAS)

€ 8.50

22

600A1200
ref: 22

BALL-STEEL,3/8

€ 0.50

23

13116022
ref: 23

ROD-PUSH,CLUTCH SPRIN

€ 15.50

24

13187006
ref: 24

PLATE-CLUTCH OPERATIN (NAS)

€ 44.50

25

920811033
ref: 25

SPRING,CLUTCH

€ 6.50

26

920011066
ref: 26

BOLT, CLUTCH SPR FITT

€ 4.00
