TRANSMISSION
KZ550M1 SHAFT 1983 USA CANADA / LTD

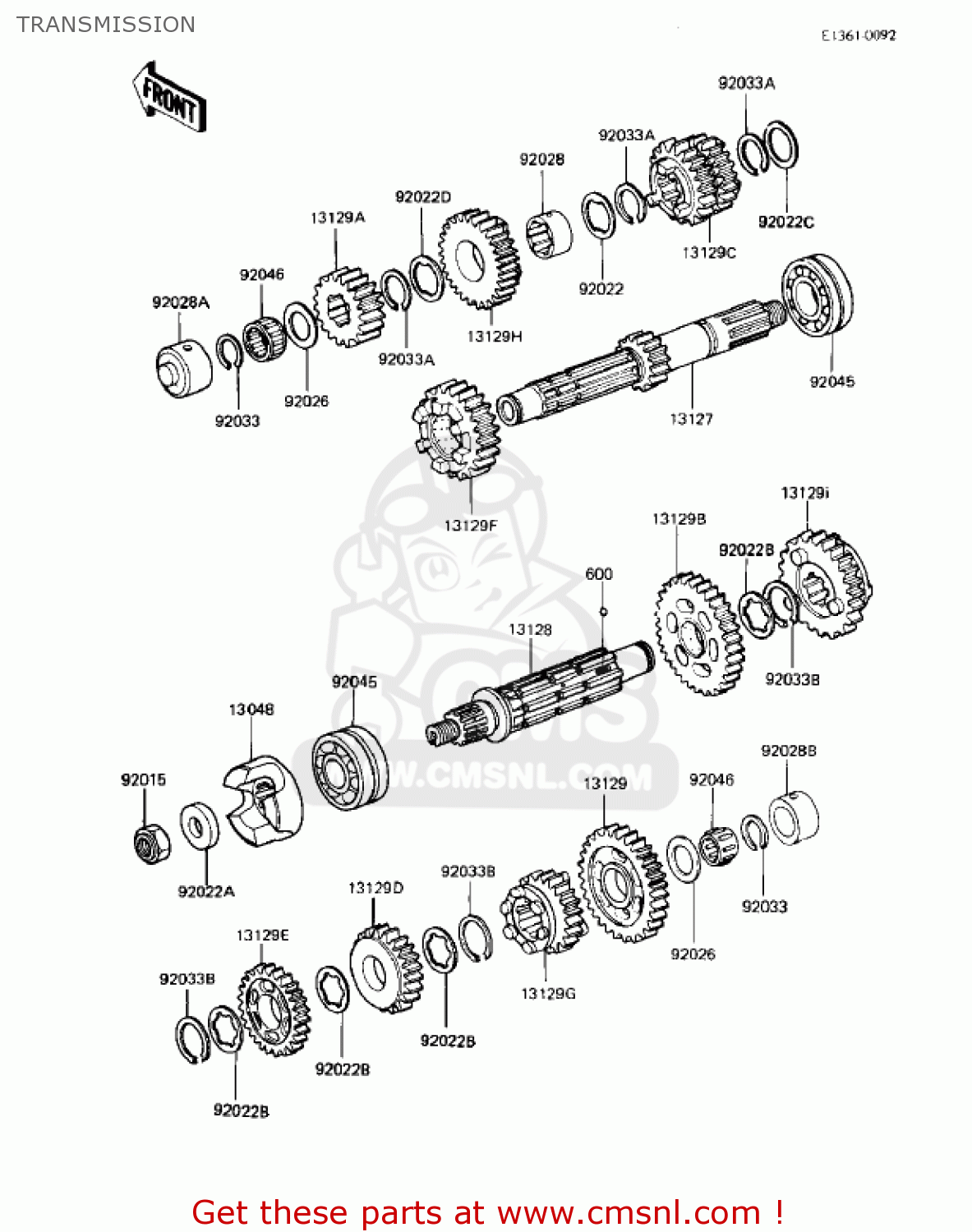

Transmission diagram KZ550M1 SHAFT 1983 USA CANADA / LTD
TRANSMISSION KZ550M1 SHAFT 1983 USA CANADA / LTD
×
prices are in EUR
ref
part #
description
quantity
13048
130481014
ref: 13048
CAM-DAMPER,OUTPUT SHA
€ 67.00
13127
131271008
ref: 13127
SHAFT,DRIVE,14T
€ 265.00
13128
131281043
ref: 13128
SHAFT-TRANSMISSION OU
€ 206.50
13129
131291076
ref: 13129
GEAR,OUTPUT LOW,36T
€ 148.50
13129A
131291077
ref: 13129A
2ND GEAR,DRIVE,18T
€ 79.50
13129B
131291078
ref: 13129B
2ND GEAR,OUTPUT,32T
€ 75.50
13129C
132601195
ref: 13129C
GEAR,INPUT 3RD&4TH,21
€ 103.00
13129D
131291080
ref: 13129D
GEAR,OUTPUT 3RD,29T
€ 111.50
13129E
131291081
ref: 13129E
4TH GEAR,OUTPUT,27T
€ 101.00
13129F
131291082
ref: 13129F
5TH GEAR,DRIVE,26T
€ 56.50
13129G
131291083
ref: 13129G
GEAR,OUTPUT 5TH,25T
€ 114.50
13129H
131291658
ref: 13129H
GEAR,INPUT TOP,27T
€ 107.00
13129I
131291662
ref: 13129I
GEAR,OUTPUT TOP,23T
€ 45.00
92015
920151067
ref: 92015
NUT,LOCK,14MM
€ 6.00
92022
920221072
ref: 92022
WASHER,TOOTHED,25.3X3
€ 2.00
92022A
920221115
ref: 92022A
WASHER,14.1X31X5
€ 8.00
92022B
920221139
ref: 92022B
WASHER,TOOTHED,28.3X3
€ 4.00
92022C
92022161
ref: 92022C
WASHER-THRUST,25MM
€ 7.00
92022D
92024033
ref: 92022D
WASHER,TOOTHED,25.5X3
€ 4.50
92026
920261022
ref: 92026
SPACER,20.3X30X2.0
€ 3.00
92028
920281552
ref: 92028
BUSHING,INPUT TOP GEA
€ 17.50
92028A
920281186
ref: 92028A
BUSHING,INPUT SHAFT
€ 27.50
92028B
92028180
ref: 92028B
BUSHING,OUTPUT SFT
€ 21.50
92033
92033015
ref: 92033
CIRCLIP
€ 2.50
92033A
92033026
ref: 92033A
CIRCLIP
€ 6.00
92033B
920331037
ref: 92033B
SNAP RING,25.9X1.2T
€ 3.00
92045
92045035
ref: 92045
BEARING-BALL,83993SH2
€ 66.50
92046
920461030
ref: 92046
BEARING-NEEDLE,VS20/1
€ 23.00
600
600A0500
ref: 600
BALL-STEEL,5/32
€ 0.50
