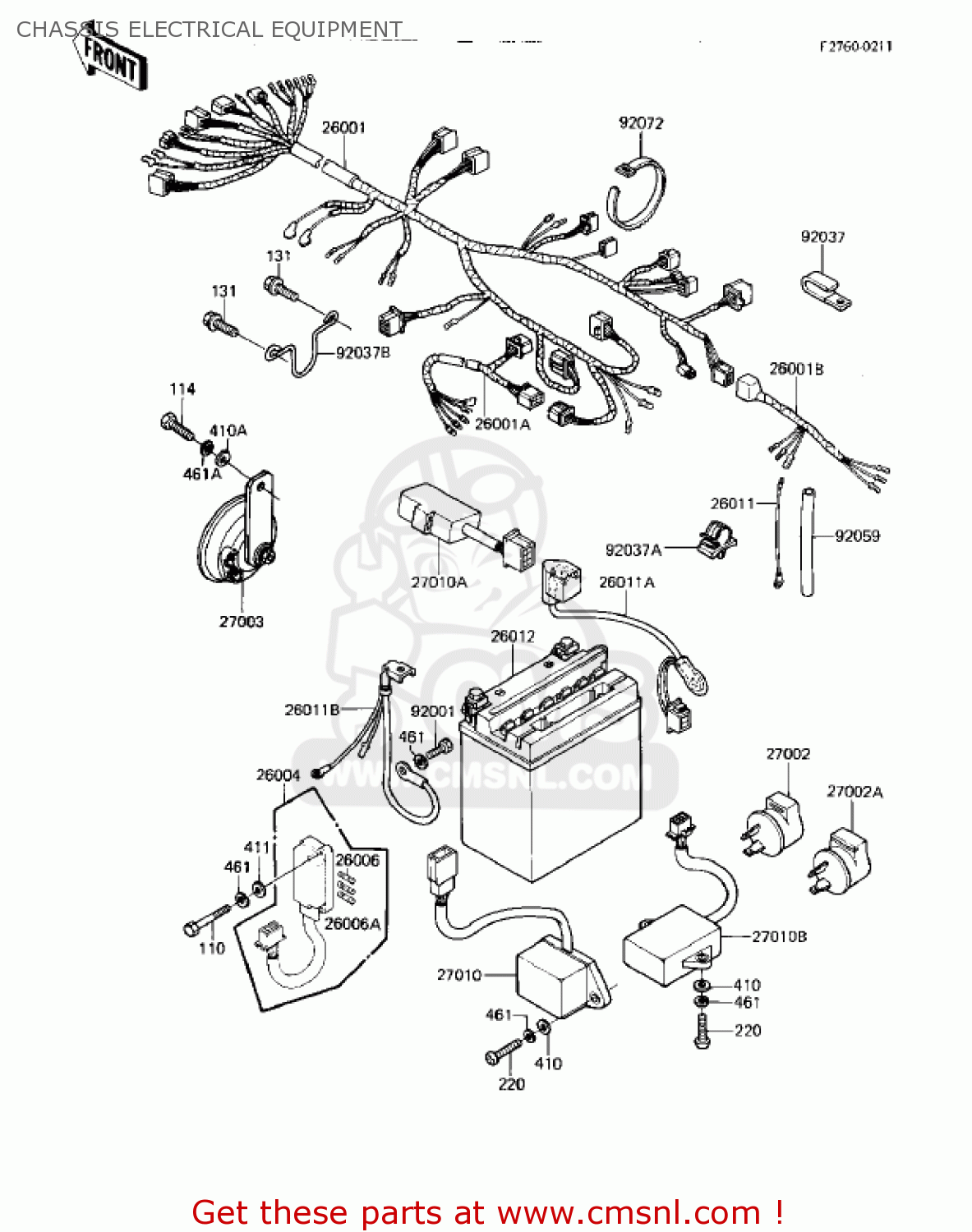

CHASSIS ELECTRICAL EQUIPMENT

ref

part #

description

quantity

26001

260011487
ref: 26001

HARNESS,MAIN

€ 145.50

26001A

260011488
ref: 26001A

HARNESS,SUB

€ 24.50

26001B

26002063
ref: 26001B

WIRING HARNESS, REAR

€ 20.00

26004

260041020
ref: 26004

FUSE-ASSY

€ 59.00

26006

26006003
ref: 26006

FUSE 10A

€ 3.00

26006A

26006005
ref: 26006A

FUSE 20A

€ 3.50

26011

26011095
ref: 26011

WIRE-LEAD,L=285

€ 8.00

26011A

260111181
ref: 26011A

WIRE-LEAD,BATTERY(+)

€ 23.50

26011B

260111182
ref: 26011B

WIRE-LEAD,BATTERY(-)

€ 23.50

26012

260121074
ref: 26012

BATTERY,12V 12AH,FB12

€ 73.00

27002

27002011
ref: 27002

RELAY-ASSY,TURN SIGNA

€ 69.50

27002A

27002016
ref: 27002A

RELAY-ASSY,HAZARD

€ 26.50

27003

270031057
ref: 27003

HORN,LH

€ 62.00

27010

270101024
ref: 27010

SWITCH,RESERV LIGHTIN

€ 149.00

27010A

270101072
ref: 27010A

SWITCH

€ 56.50

27010B

270101077
ref: 27010B

SWITCH,TURN SIGNAL OP

€ 55.00

92001

92001137
ref: 92001

BOLT,HEX HEAD,6M/M

€ 4.00

92037

920371069
ref: 92037

CLAMP,L=60

€ 1.50

92037A

920371340
ref: 92037A

CLAMP,LEAD WIRE

€ 7.50

92037B

920371383
ref: 92037B

CLAMP,MAIN HARNESS

€ 6.50

92059

920591150
ref: 92059

TUBE,8X9X200

€ 3.00

92072

92072032
ref: 92072

BAND,LONG

€ 3.00

110

112B0622
ref: 110

BOLT, 6X22

€ 2.50

114

114C0814
ref: 114

BOLT-SMALL,8X14

€ 1.50

131

131B0614
ref: 131

BOLT-FLANGED,6X14

€ 2.00

220

220B0620
ref: 220

SCREW-PAN HEAD,6X20

€ 2.50

410

410B0600
ref: 410

WASHER-PLAIN-SMALL,6M

€ 0.50

410A

920221554
ref: 410A

WASHER,PLAIN,8MM

€ 3.00

411

411B0600
ref: 411

WASHER-PLAIN,6MM

€ 0.50

461

461F0600
ref: 461

WASHER-SPRING,6MM

€ 0.50

461A

461K0800
ref: 461A

WASHER-SPRING,8MM,BLA

€ 1.50

all assemblies
