FRONT FORK
KZ550M1 SHAFT 1983 USA CANADA / LTD

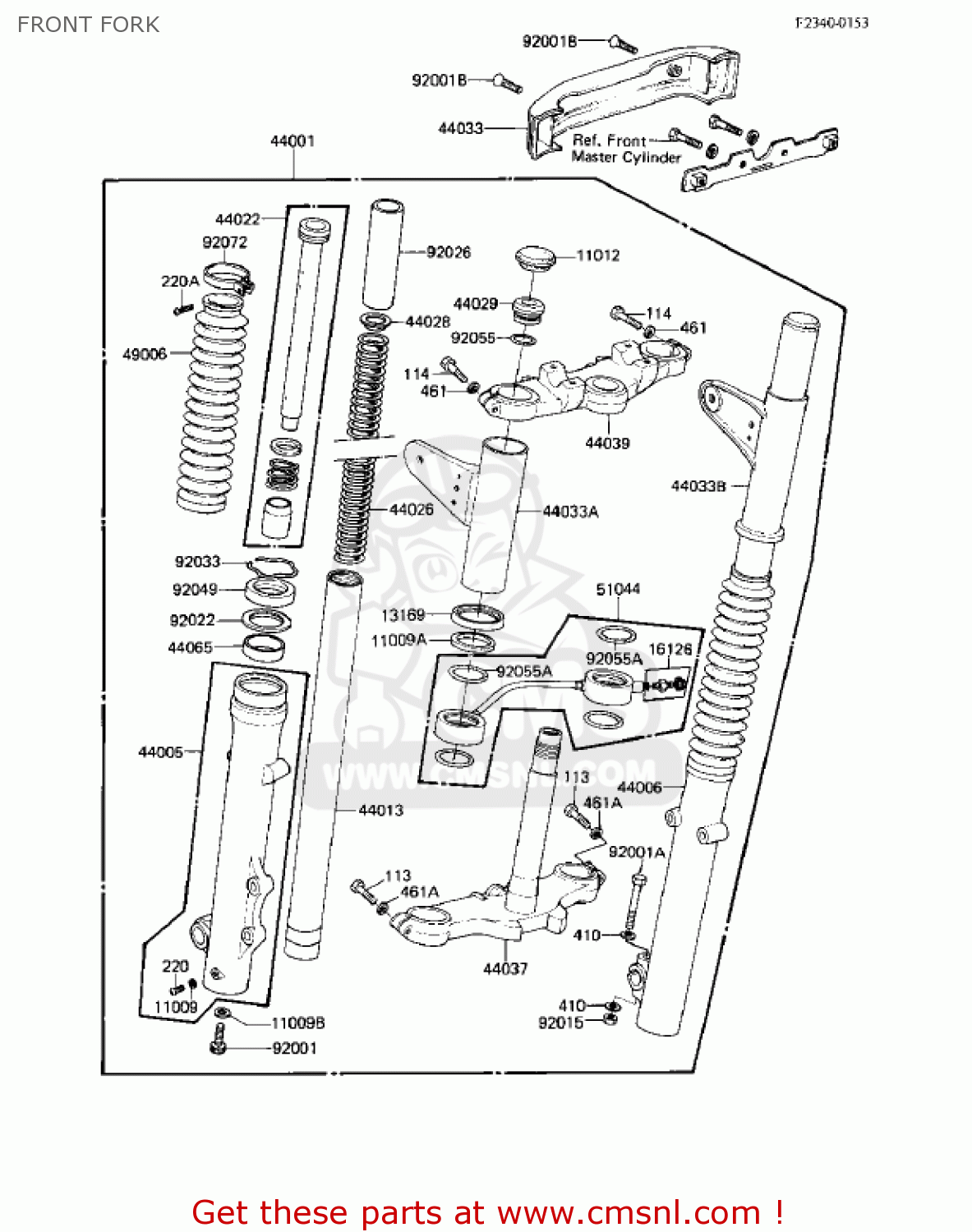

Front fork diagram KZ550M1 SHAFT 1983 USA CANADA / LTD
FRONT FORK KZ550M1 SHAFT 1983 USA CANADA / LTD
×
prices are in EUR
ref
part #
description
quantity
11009
44045002
ref: 11009
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
11009Q
44045038
ref: 11009Q
GASKET,FORK COVER (NAS)
€ 3.50
11009B
44045057
ref: 11009B
GASKET (NAS)
€ 3.00
11012
110121017
ref: 11012
CAP,RUBBER
€ 7.00
13169
131691614
ref: 13169
FORK COVER PLATE,LOWER
€ 6.50
16126
161261052
ref: 16126
VALVE,AIR
€ 22.00
44001
440011399
ref: 44001
FRONT FORK
€ 913.50
44005
440051139
ref: 44005
FORK OUTER PIPE,LH
€ 187.00
44006
440061139
ref: 44006
FORK OUTER PIPE,RH
€ 187.00
44013
440131108
ref: 44013
FORK INNER PIPE
€ 135.50
44022
440221093
ref: 44022
CYLINDER-FORK
€ 119.00
44026
440261185
ref: 44026
FRONT FORK SPRING
€ 45.50
44028
44028033
ref: 44028
GUIDE-FORK SPRING
€ 6.00
44029
440291046
ref: 44029
SEAT-FORK SPRING
€ 15.00
44033
440331084
ref: 44033
COVER-FORK
€ 28.00
44033A
440331137
ref: 44033A
FORK COVER,LH
€ 60.00
44033B
440331138
ref: 44033B
FORK COVER,RH
€ 67.00
44037
440371093
ref: 44037
HOLDER-FORK UNDER
€ 209.00
44039
440391061
ref: 44039
FORK HOLDER,UPPER
€ 120.50
44065
440651016
ref: 44065
BUSHING-FRONT FORK
€ 19.00
49006
490061096
ref: 49006
BOOT,FRONT FORK
€ 58.00
51044
510441026
ref: 51044
TUBE-ASSY,FRONT FORK
€ 146.00
92001
44041040
ref: 92001
BOLT-FORK CYLINDER
€ 4.50
92001A
920021168
ref: 92001A
BOLT, 8X50
€ 3.00
92001B
222C0518
ref: 92001B
SCREW-CSK-RD-CROS
€ 2.50
92015
920151124
ref: 92015
NUT,LOCK,8MM
€ 3.50
92022
920221275
ref: 92022
WASHER,FRONT FORK
€ 4.50
92026
920261133
ref: 92026
FRONT FORK SPRING,SPACER
€ 4.00
92033
920331100
ref: 92033
RING-SNAP,FORK OIL SE
€ 9.50
92049
920491101
ref: 92049
SEAL OIL FRONT FORK
€ 16.50
92055
920551012
ref: 92055
RING-O,FORK TOP
€ 5.00
92055A
920551140
ref: 92055A
RING-O,TUBE ASSY
€ 0.50
92072
920721008
ref: 92072
BAND,BOOTS
€ 7.50
113
113J1040
ref: 113
BOLT-SMALL-FINE,10X40
€ 4.50
114
114J0840
ref: 114
BOLT-SMALL,8X40
€ 3.00
220
220B0408
ref: 220
SCREW-PAN-CROS
€ 0.50
220A
220C0420
ref: 220A
SCREW-PAN-CROS,4X20
€ 0.50
410
410B0800
ref: 410
WASHER-PLAIN-SMALL,8M
€ 0.50
461
461K0800
ref: 461
WASHER-SPRING,8MM,BLA
€ 1.50
461A
461K1000
ref: 461A
461K1000
