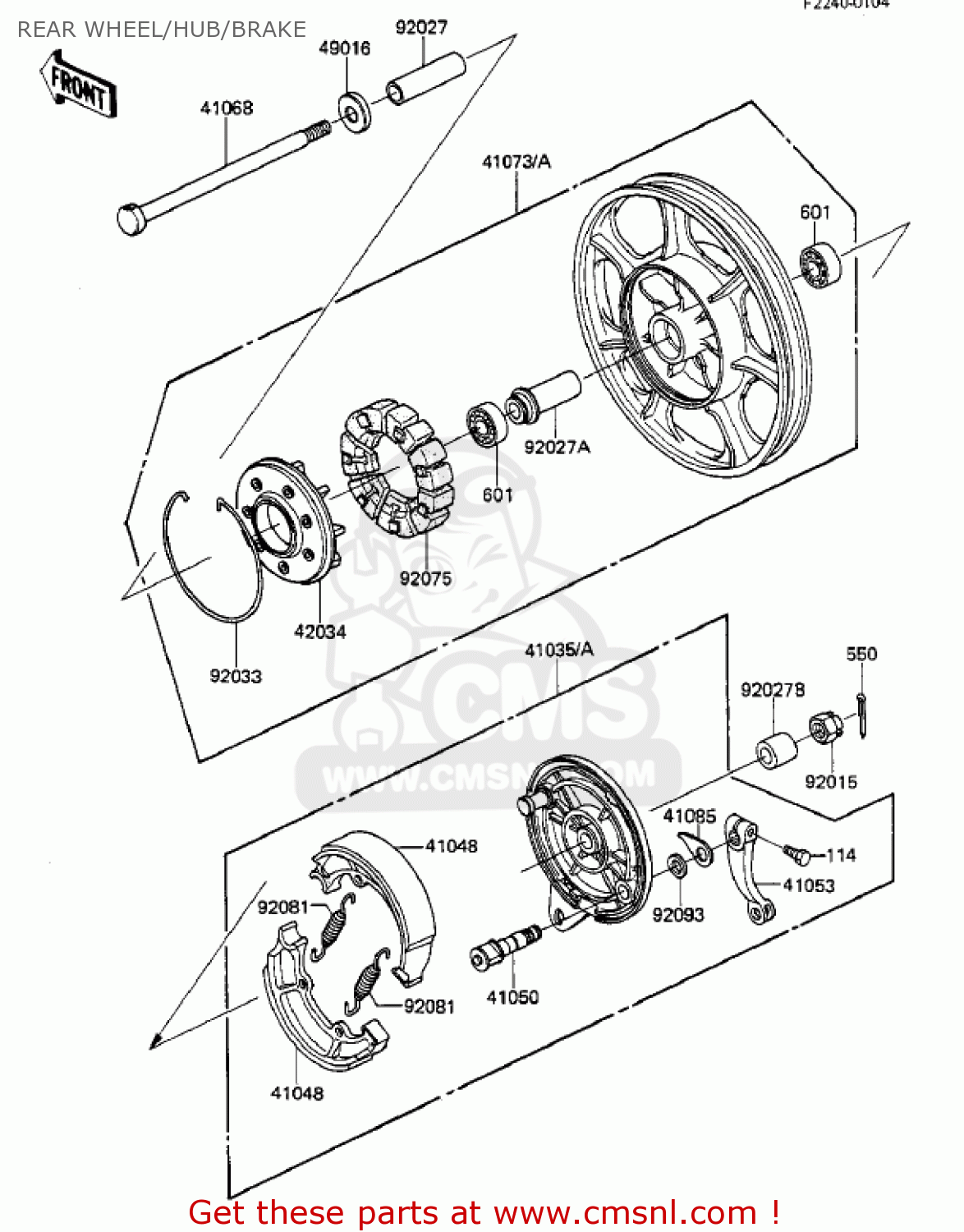

REAR WHEEL/HUB/BRAKE

ref

part #

description

quantity

41035

410351110
ref: 41035

PANEL-ASSY-BRAKE,RR

€ 472.00

41035A

410351111
ref: 41035A

PANEL-ASSY-BRAKE,RR

€ 224.00

41048

42019012
ref: 41048

SHOE, BRAKE (MCA)

€ 26.00

41050

41050017
ref: 41050

CAM-BRAKE

€ 25.50

41053

42029039
ref: 41053

LEVER REAR BRAKE CAM

€ 37.00

41068

410681086
ref: 41068

AXLE,RR

€ 49.00

41073

410731161F6
ref: 41073

WHEEL ASSEMBLY,REAR,GOLD #2

€ 404.00

41073A

410731161J9
ref: 41073A

WHEEL ASSEMBLY,REAR,GRAY

€ 340.00

41085

41085004
ref: 41085

INDICATOR,BRAKE SHOE

€ 10.00

42034

420341029
ref: 42034

COUPLING,RR HUB

€ 154.50

49016

490161038
ref: 49016

COVER-SEAL,RR AXLE

€ 4.50

92015

92015055
ref: 92015

NUT,16MM

€ 8.00

92027

920271415
ref: 92027

COLLAR,17.2X25X79

€ 14.00

92027A

920271416
ref: 92027A

COLLAR,L=60

€ 12.50

92027B

920271466
ref: 92027B

COLLAR,AXLE,17.2X30X3

€ 13.50

92033

920331075
ref: 92033

RING-SNAP,194MM

€ 10.50

92075

920751372
ref: 92075

DAMPER,RR HUB SHOCK

€ 66.00

92081

41049012
ref: 92081

SPRING, BRKE SHOE

€ 6.00

92093

41051003
ref: 92093

DUST SHIELD-BRAKE CAM

€ 2.50

114

114G0828
ref: 114

BOLT-SMALL,8X28

€ 2.50

550

550D4035
ref: 550

PIN-COTTER,4.0X35

€ 1.00

601

601B6303Z
ref: 601

BEARING-BALL,#6303ZC3

€ 17.50

all assemblies
