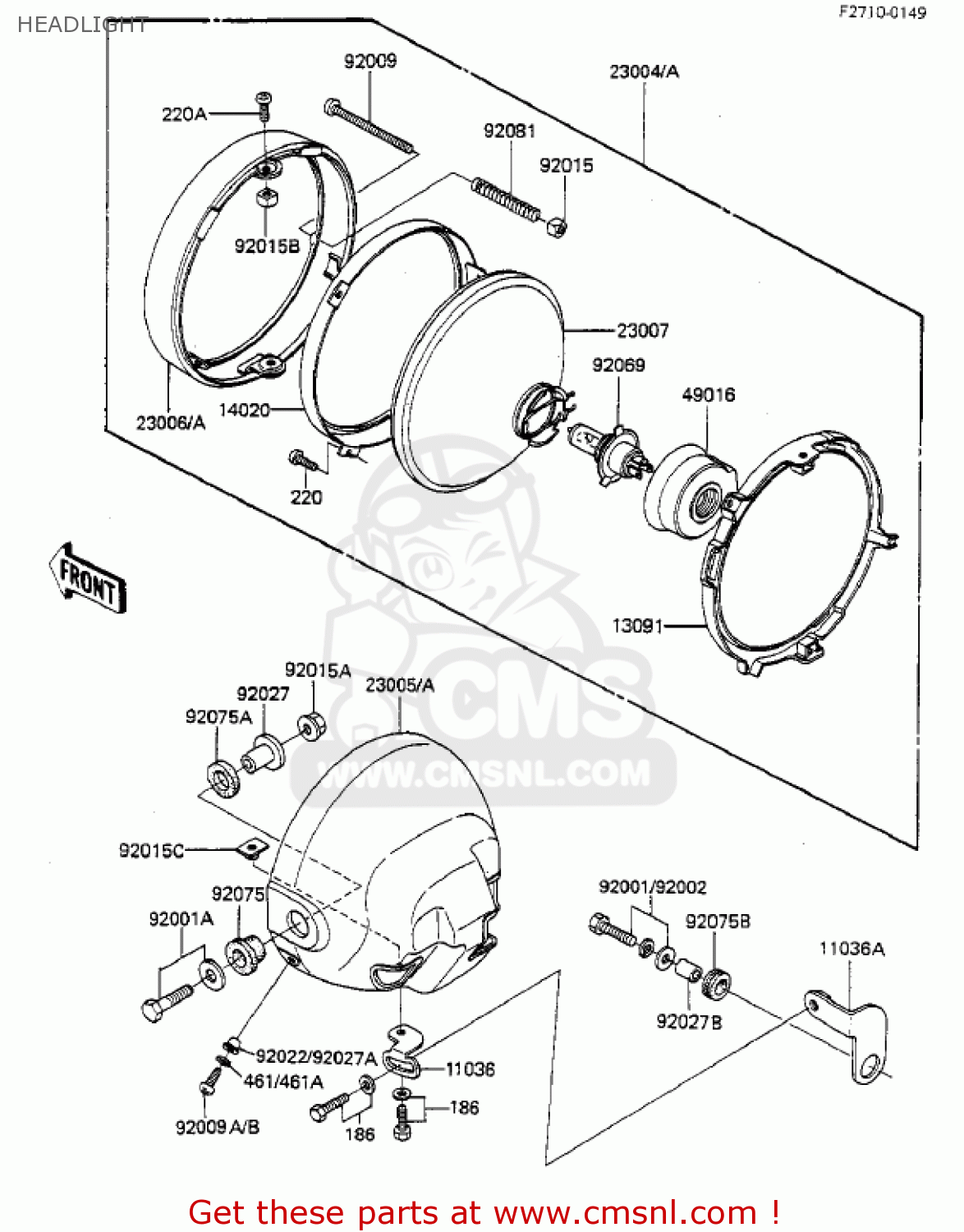

HEADLIGHT

ref

part #

description

quantity

11036

110361649
ref: 11036

BRACKET-A,HEAD LAMP

€ 4.50

11036A

110361650
ref: 11036A

BRACKET,A

€ 4.00

13091

130911160
ref: 13091

HOLDER,HEAD LAMP

€ 20.50

14020

140201018
ref: 14020

RETAINER,HEAD LAMP

€ 22.00

23004

230041082
ref: 23004

HEADLAMP

€ 232.50

23004A

230041087
ref: 23004A

HEADLAMP

€ 264.50

23005

230051026H8
ref: 23005

BODY-COMP-HEAD LAMP,E

€ 69.50

23005A

230051027
ref: 23005A

BODY-COMP-HEAD LAMP,C

€ 79.00

23006

230061019
ref: 23006

RIM-LAMP,BRACK

€ 38.50

23006A

230061020
ref: 23006A

RIM-LAMP,CR PLATED

€ 34.50

23007

230071009
ref: 23007

LENS UNIT, HEAD LAMP

€ 127.00

49016

490161016
ref: 49016

COVER-SEAL

€ 16.00

92001

920021137
ref: 92001

BOLT,6X25

€ 2.50

92001A

920011910
ref: 92001A

BOLT,FLANGED,8X35

€ 4.50

92002

920021137
ref: 92002

BOLT,6X25

€ 2.50

92009

920091033
ref: 92009

SCREW,FOCUS ADJUSTING

€ 3.50

92009A

920091693
ref: 92009A

SCREW,5X16

€ 2.50

92009B

92011024
ref: 92009B

SCREW-PAN HEAD,5MM

€ 2.00

92015

23020018
ref: 92015

NUT,4MM,FOCUS ADJUST

€ 3.00

92015A

920151014
ref: 92015A

NUT,8MM

€ 0.50

92015B

920151157
ref: 92015B

NUT,5MM

€ 3.50

92015C

920151231
ref: 92015C

NUT,6MM,HEAD LAMP

€ 6.50

92022

23021010
ref: 92022

WASHER

€ 2.50

92027

920271131
ref: 92027

COLLAR,HEAD LAMP FITT

€ 6.00

92027A

920271503
ref: 92027A

COLLAR,HEAD LAMP,BLAC

€ 2.50

92027B

92027162
ref: 92027B

COLLAR-REAR FENDER

€ 4.50

92069

920691002
ref: 92069

BULB,12V-60155W

€ 15.00

92075

920751109
ref: 92075

DAMPER,HEAD LAMP FITT

€ 4.00

92075A

920751110
ref: 92075A

DAMPER,HEAD LAMP FITT

€ 3.00

92075B

92075209
ref: 92075B

DAMPER RUBBER

€ 3.00

92081

23014005
ref: 92081

SPRING-FOCUS ADJUST

€ 2.50

186

186C0614
ref: 186

BOLT-UPSET-WP

€ 2.50

220

220B0308
ref: 220

SCREW-PAN-CROS

€ 0.50

220A

220B0510
ref: 220A

SCREW-PAN-CROS,5X10

€ 0.50

461

461F0500
ref: 461

WASHER-SPRING,5MM

€ 0.50

461A

461K0500
ref: 461A

WASHER-SPRING,5MM,BLA

€ 0.50

all assemblies
