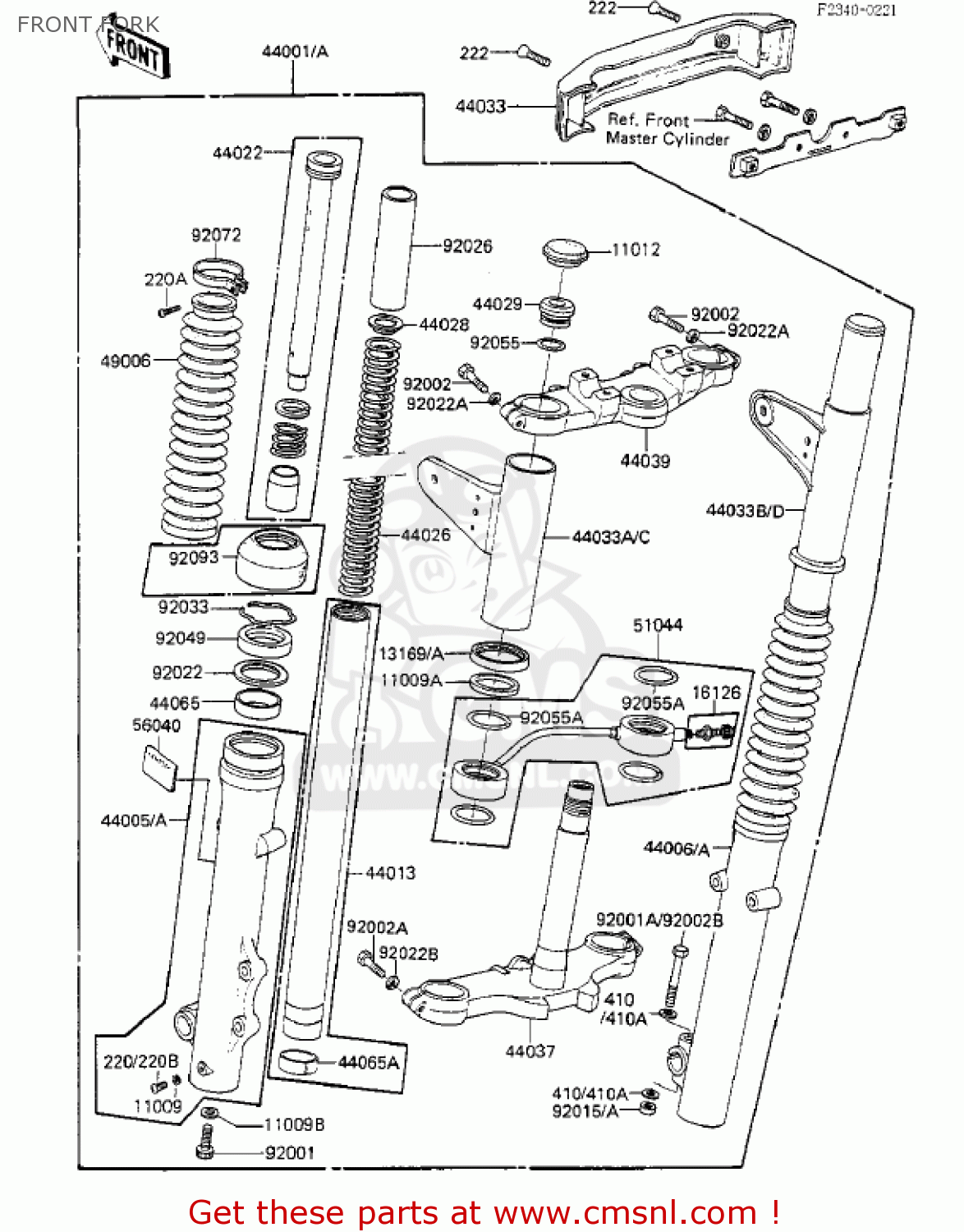

FRONT FORK

ref

part #

description

quantity

11009

44045002
ref: 11009

GASKET,FORK DRAIN PLU (NAS)

€ 3.00

11009A

44045038
ref: 11009A

GASKET,FORK COVER (NAS)

€ 3.50

11009B

44045057
ref: 11009B

GASKET (NAS)

€ 3.00

11012

110121017
ref: 11012

CAP,RUBBER

€ 7.00

13169

131691849
ref: 13169

PLATE,FORK COVER,LWR

€ 12.50

13169A

131691614
ref: 13169A

FORK COVER PLATE,LOWER

€ 6.50

16126

161261052
ref: 16126

VALVE,AIR

€ 22.00

44001

440011414
ref: 44001

FRONT FORK

€ 913.50

44001A

440011531
ref: 44001A

FRONT FORK

€ 835.50

44005

440051133
ref: 44005

FORK OUTER PIPE,LH

€ 163.50

44005A

440051210
ref: 44005A

FORK OUTER PIPE,LH

€ 171.00

44006

440061133
ref: 44006

FORK OUTER PIPE,RH

€ 163.50

44006A

440061210
ref: 44006A

FORK OUTER PIPE,RH

€ 171.00

44013

440131108
ref: 44013

FORK INNER PIPE

€ 135.50

44022

440221093
ref: 44022

CYLINDER-FORK

€ 119.00

44026

440261185
ref: 44026

FRONT FORK SPRING

€ 45.50

44028

44028033
ref: 44028

GUIDE-FORK SPRING

€ 6.00

44029

440291046
ref: 44029

SEAT-FORK SPRING

€ 15.00

44033

440331084
ref: 44033

COVER-FORK

€ 28.00

44033A

440331127
ref: 44033A

FORK COVER,LH

€ 70.00

44033B

440331128
ref: 44033B

FORK COVER,RH

€ 70.00

44033C

440331137
ref: 44033C

FORK COVER,LH

€ 60.00

44033D

440331138
ref: 44033D

FORK COVER,RH

€ 67.00

44037

440371093
ref: 44037

HOLDER-FORK UNDER

€ 209.00

44039

440391061
ref: 44039

FORK HOLDER,UPPER

€ 120.50

44065

440651016
ref: 44065

BUSHING-FRONT FORK

€ 19.00

44065A

440651060
ref: 44065A

BUSHING-FRONT FORK,IN

€ 14.50

49006

490061096
ref: 49006

BOOT,FRONT FORK

€ 58.00

51044

510441026
ref: 51044

TUBE-ASSY,FRONT FORK

€ 146.00

56040

560401110
ref: 56040

LABEL-WARNING,FRONT F

€ 2.50

92001

44041040
ref: 92001

BOLT-FORK CYLINDER

€ 4.50

92001A

920021168
ref: 92001A

BOLT, 8X50

€ 3.00

92002

920021156
ref: 92002

BOLT,8X40

€ 4.00

92002A

920021157
ref: 92002A

BOLT,10X40

€ 4.50

92002B

920021168
ref: 92002B

BOLT, 8X50

€ 3.00

92015

920151124
ref: 92015

NUT,LOCK,8MM

€ 3.50

92015A

920151390
ref: 92015A

NUT,LOCK,8MM

€ 3.50

92022

920221275
ref: 92022

WASHER,FRONT FORK

€ 4.50

92022A

920221552
ref: 92022A

WASHER,SPRING,8MM

€ 2.50

92022B

920221553
ref: 92022B

WASHER,SPRING,10MM

€ 1.50

92026

920261133
ref: 92026

FRONT FORK SPRING,SPACER

€ 4.00

92033

920331100
ref: 92033

RING-SNAP,FORK OIL SE

€ 9.50

92049

920491101
ref: 92049

SEAL OIL FRONT FORK

€ 16.50

92055

920551012
ref: 92055

RING-O,FORK TOP

€ 5.00

92055A

920551140
ref: 92055A

RING-O,TUBE ASSY

€ 0.50

92072

920721008
ref: 92072

BAND,BOOTS

€ 7.50

92093

920931161
ref: 92093

SEAL,FRONT FORK

€ 15.50

220

220B0408
ref: 220

SCREW-PAN-CROS

€ 0.50

220A

220C0420
ref: 220A

SCREW-PAN-CROS,4X20

€ 0.50

220B

220E0408
ref: 220B

SCREW-PAN HEAD,4X8

€ 2.50

222

222C0518
ref: 222

SCREW-CSK-RD-CROS

€ 2.50

410

410B0800
ref: 410

WASHER-PLAIN-SMALL,8M

€ 0.50

410A

410D0800
ref: 410A

WASHER-PLAIN,8MM

€ 2.00
