OIL PUMP/OIL FILTER ('82-'83 C3/
KZ550C2 LTD 1981 USA CANADA

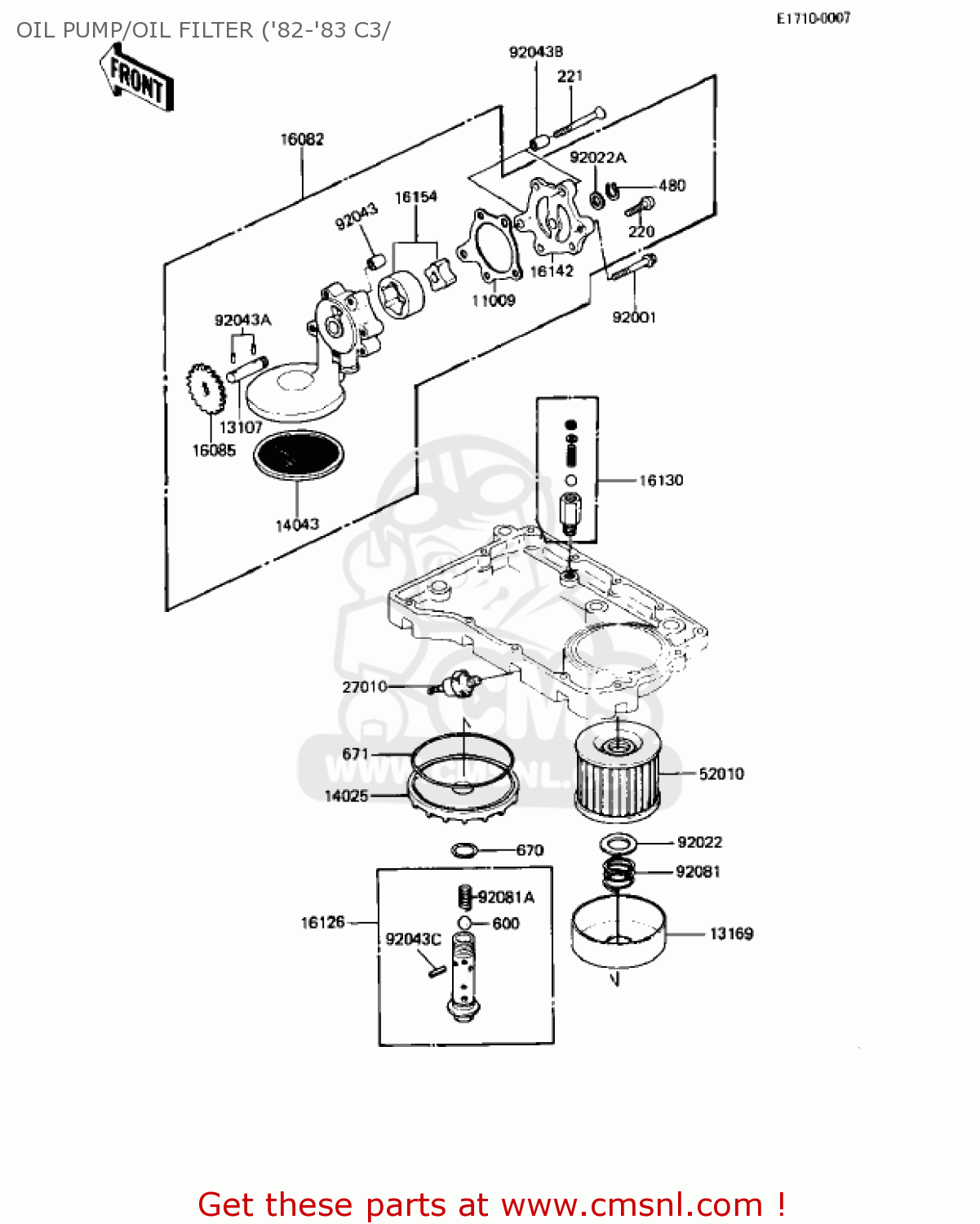

Oil pump/oil filter ('82-'83 c3/ diagram KZ550C2 LTD 1981 USA CANADA
OIL PUMP/OIL FILTER ('82-'83 C3/ KZ550C2 LTD 1981 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
16145004
ref: 11009
GASKET,OIL PUMP COVER (NAS)
€ 2.50
13107
16086004
ref: 13107
SHAFT,OIL PUMP
€ 17.00
13169
131691110
ref: 13169
PLATE,OIL FILTER
€ 4.50
14025
16101004
ref: 14025
COVER,OIL FILTER
€ 31.00
14043
16111004
ref: 14043
FILTER,OIL PUMP
€ 23.50
16082
16082064
ref: 16082
PUMP-ASSY-OIL
€ 165.00
16085
16085025
ref: 16085
GEAR, OIL PUMP, 57T
€ 31.50
16126
161261108
ref: 16126
VALVE,OIL FILTER
€ 29.00
16130
161301001
ref: 16130
VALVE-ASSY-RELIEF
€ 28.50
16142
16142005
ref: 16142
COVER-PUMP
€ 24.00
16154
16154003
ref: 16154
ROTOR-PUMP
€ 47.50
27010
270101155
ref: 27010
SWITCH,OIL PRESSURE
€ 28.00
52010
16099003
ref: 52010
FILTER,OIL
€ 6.50
92001
92001165
ref: 92001
BOLT,HEX HEAD,6X45
€ 3.00
92022
920221012
ref: 92022
WASHER,20.5X30X1
€ 3.00
92022A
92022311
ref: 92022A
WASHER,PLAIN
€ 2.50
92043
920431302
ref: 92043
PIN,DOWEL,8X10
€ 1.00
92043A
92042041
ref: 92043A
PIN,DOWEL
€ 4.50
92043B
92042050
ref: 92043B
PIN, DOWEL, 6.2X8X28
€ 2.50
92043C
92043111
ref: 92043C
SPRING PIN
€ 4.00
92081
920811018
ref: 92081
SPRING,OIL FILTER
€ 3.00
92081A
92081109
ref: 92081A
SPRING
€ 7.50
220
220B0622
ref: 220
SCREW-PAN HEAD,6X22
€ 2.50
221
221B0655
ref: 221
SCREW,COUNTERSUNK HED
€ 3.00
480
480J1100
ref: 480
CIRCLIP-TYPE-C,11MM
€ 0.50
600
600A1200
ref: 600
BALL-STEEL,3/8
€ 0.50
670
670B2016
ref: 670
O RING,16MM
€ 1.00
671
671B2590
ref: 671
O RING,90MM
€ 6.50
