CHASSIS ELECTRICAL EQUIPMENT ('8
KZ550C2 LTD 1981 USA CANADA

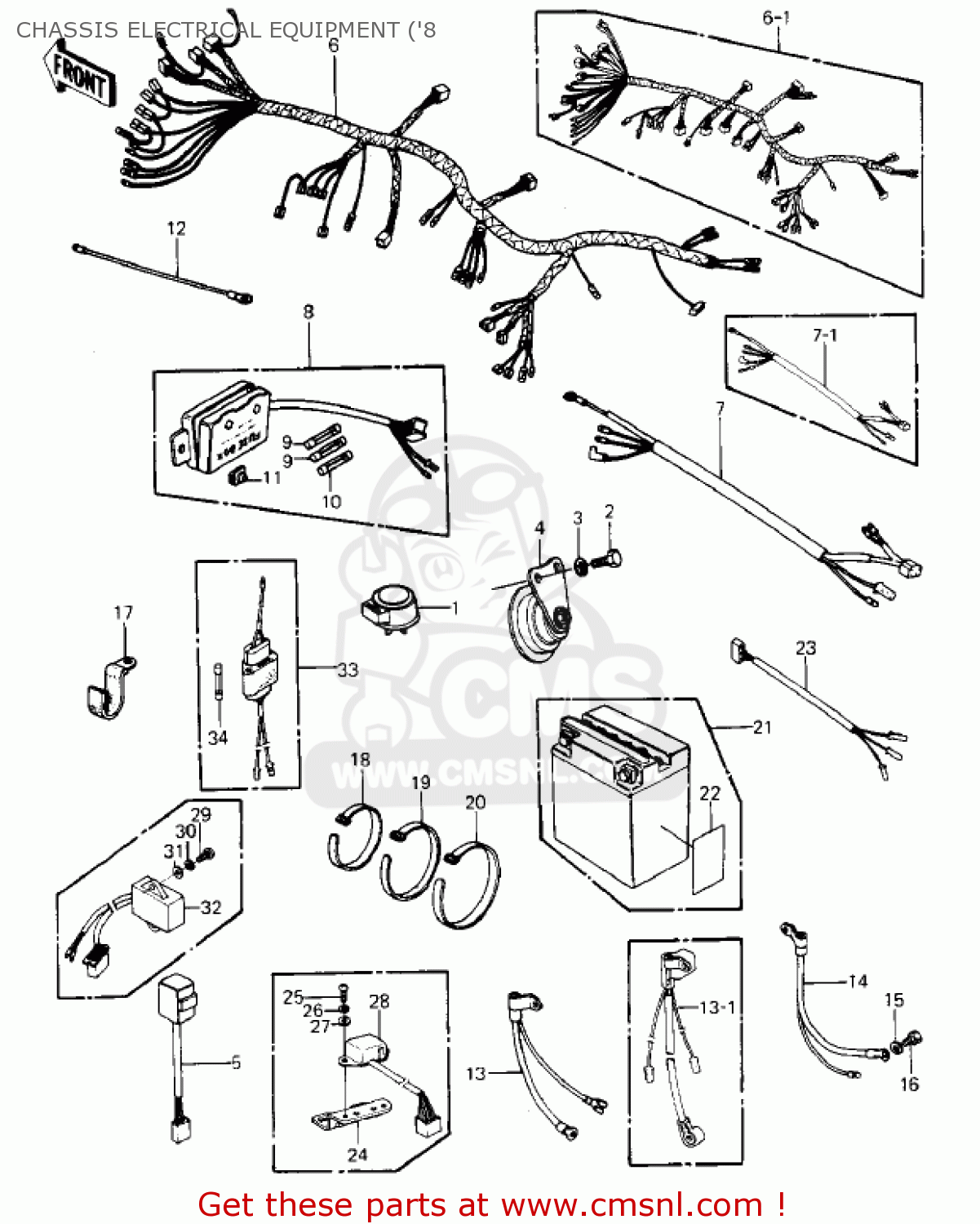

Chassis electrical equipment ('8 diagram KZ550C2 LTD 1981 USA CANADA
CHASSIS ELECTRICAL EQUIPMENT ('8 KZ550C2 LTD 1981 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
27002011
ref: 1
RELAY-ASSY,TURN SIGNA
€ 69.50
2
115G0816
ref: 2
BOLT-HEX,HEAD 8X16
€ 0.50
3
461F0800
ref: 3
WASHER-SPRING,8MM
€ 0.50
4
270031014
ref: 4
HORN
€ 91.00
5
28019001
ref: 5
SWITCH,OUTAGE INDICTR
€ 46.00
6
260011162
ref: 6
KZ550-C1
WIRING HARNESS,MAIN
€ 172.00
6-1
260011175
ref: 6-1
KZ550-C2
HARNESS,MAIN
€ 181.00
7
260011051
ref: 7
KZ550-C1
HARNESS,SUB
€ 34.00
7-1
260011202
ref: 7-1
KZ550-C2
HARNESS,SUB
€ 51.00
8
260041002
ref: 8
FUSE-ASSY
€ 55.00
9
26006003
ref: 9
USE FOR 26004-1002
FUSE 10A
€ 3.00
10
26006005
ref: 10
USE FOR 26004-1002
FUSE 20A
€ 3.50
11
92075279
ref: 11
DAMPER,FUSE
€ 3.50
12
26011095
ref: 12
WIRE-LEAD,L=285
€ 8.00
13
260111155
ref: 13
KZ550-C1
WIRE-LEAD,BATTERY GRO
€ 26.00
13-1
260111156
ref: 13-1
KZ550-C2
WIRE-LEAD,BATTERY GRO
€ 27.00
14
260111032
ref: 14
WIRE-LEAD,BATTERY GRO
€ 17.00
15
461F0600
ref: 15
WASHER-SPRING,6MM
€ 0.50
16
92001137
ref: 16
BOLT,HEX HEAD,6M/M
€ 4.00
17
920371069
ref: 17
CLAMP,L=60
€ 1.50
18
92072030
ref: 18
BAND,SHORT
€ 3.00
19
92072031
ref: 19
BAND,MIDDLE
€ 3.00
20
92072032
ref: 20
BAND,LONG
€ 3.00
21
260121004
ref: 21
BATTERY 12V 12AH
€ 97.00
22
560401036
ref: 22
WARNING, BATTERY
€ 2.00
23
26002046
ref: 23
HARNESS,TAIL LAMP
€ 12.50
24
110341850
ref: 24
KZ550-C2
RESERVE LIGHT BRACKET
€ 38.00
25
220B0620
ref: 25
KZ550-C2
SCREW-PAN HEAD,6X20
€ 2.50
26
461F0600
ref: 26
KZ550-C2
WASHER-SPRING,6MM
€ 0.50
27
410B0600
ref: 27
KZ550-C2
WASHER-PLAIN-SMALL,6M
€ 0.50
28
270101024
ref: 28
KZ550-C2
SWITCH,RESERV LIGHTIN
€ 149.00
29
220B0625
ref: 29
KZ550-C2
SCREW-PAN HEAD,6X25
€ 1.50
30
461F0600
ref: 30
KZ550-C2
WASHER-SPRING,6MM
€ 0.50
31
410B0600
ref: 31
KZ550-C2
WASHER-PLAIN-SMALL,6M
€ 0.50
32
270101016
ref: 32
KZ550-C2
SWITCH,TURN SIGNAL OP
€ 137.50
33
260041014
ref: 33
KZ550-C2
FUSE-ASSY,ACCESSORY
€ 47.00
34
260061002
ref: 34
USE FOR 26004-1014
FUSE,10A,L=30M/M
€ 3.00
