FRONT FORK (KZ550-C3)
KZ550C2 LTD 1981 USA CANADA

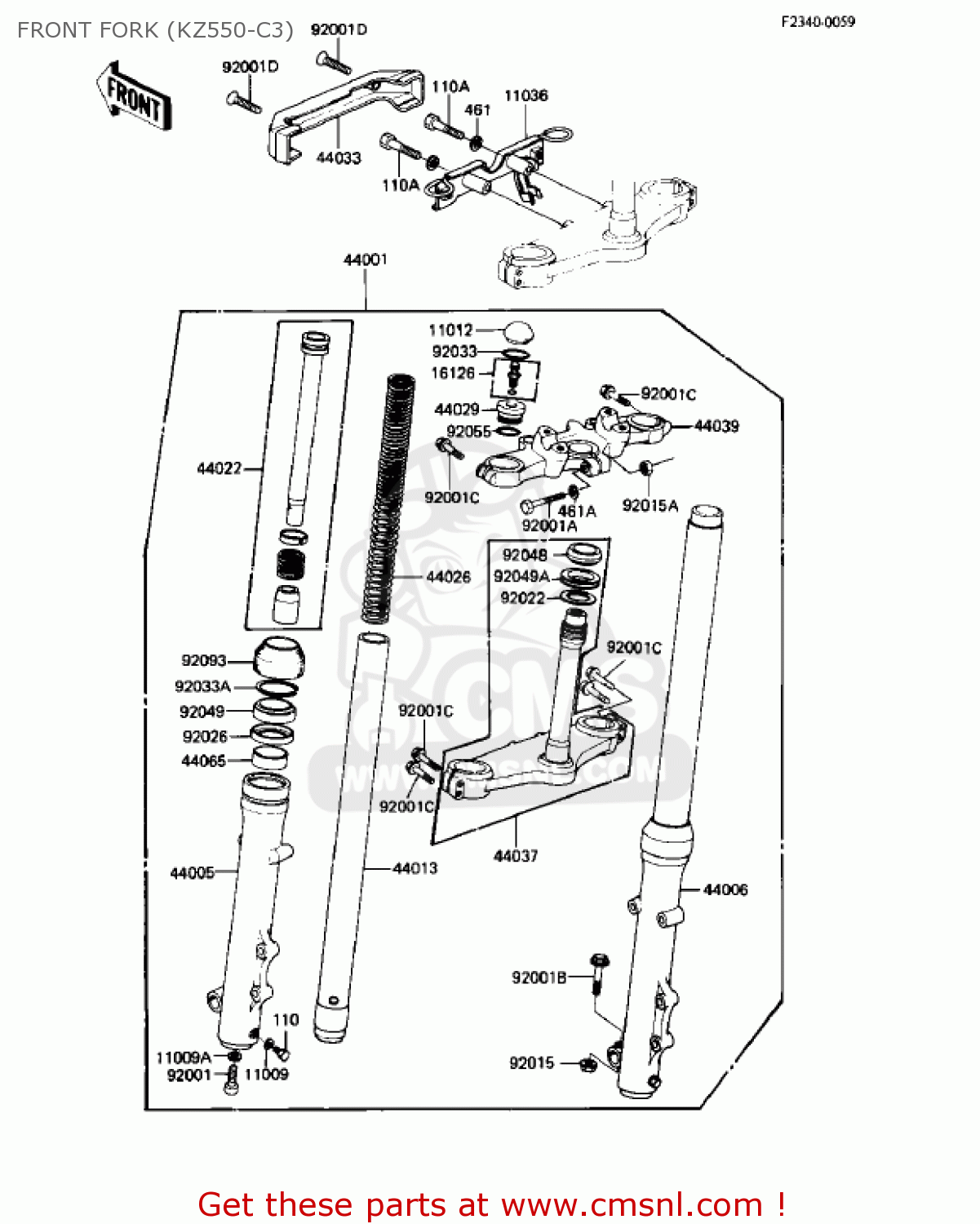

Front fork (kz550-c3) diagram KZ550C2 LTD 1981 USA CANADA
FRONT FORK (KZ550-C3) KZ550C2 LTD 1981 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
44045047
ref: 11009
GASKET,DRAIN PLUG (NAS)
€ 6.00
11009A
44045051
ref: 11009A
GASKET,FORK CYLINDER (NAS)
€ 4.00
11012
110121151
ref: 11012
CAP,FORK TOP
€ 4.50
11036
110361253
ref: 11036
BRACKET-A,FORK COVER
€ 14.50
16126
161261025
ref: 16126
VALVE,AIR
€ 19.00
44001
440011193
ref: 44001
FRONT FORK
€ 916.50
44005
440051050
ref: 44005
FORK OUTER TUBE,LH
€ 203.50
44006
440061051
ref: 44006
FORK OUTER TUBE,RH
€ 203.50
44013
440131043
ref: 44013
PIPE-FORK INNER
€ 159.00
44022
440221024
ref: 44022
CYLINDER,FORK
€ 87.50
44026
440261060
ref: 44026
SPRING,FORK INNER
€ 49.50
44029
440291019
ref: 44029
SEAT,FORK SPRING
€ 9.50
44033
440331054
ref: 44033
COVER-FORK
€ 39.50
44037
440371013
ref: 44037
HOLDER-FORK UNDER
€ 459.50
44039
440391011
ref: 44039
HOLDER-FORK UPPER
€ 232.50
44065
440651011
ref: 44065
BUSHING,FORK
€ 16.00
92001
44041078
ref: 92001
BOLT, FORK CYLINDER
€ 6.50
92001A
920011064
ref: 92001A
BOLT,HEX HEAD,8X55
€ 6.00
92001B
920011136
ref: 92001B
BOLT,8X45
€ 7.00
92001C
920011149
ref: 92001C
BOLT,8X40
€ 7.50
92001D
222C0518
ref: 92001D
SCREW-CSK-RD-CROS
€ 2.50
92015
920151055
ref: 92015
NUT,8M/M
€ 3.00
92015A
920151124
ref: 92015A
NUT,LOCK,8MM
€ 3.50
92022
92022231
ref: 92022
WASHER,PLAIN
€ 3.00
92026
920261038
ref: 92026
SPACER,FORK
€ 6.50
92033
920331023
ref: 92033
CIRCLIP
€ 3.00
92033A
920331055
ref: 92033A
RING,SNAP
€ 4.00
92048
92047012
ref: 92048
CONE-STRNG STM BRNG
€ 14.50
92049
920491063
ref: 92049
SEAL-OIL,FORK
€ 14.50
92049A
92056003
ref: 92049A
OIL SEAL,STEERING STM
€ 6.00
92055
920551034
ref: 92055
RING-O
€ 5.00
92093
920931047
ref: 92093
SEAL,DUST
€ 29.50
110
110B0608
ref: 110
BOLT-HEX HEAD,6X8
€ 0.50
110A
112G0640
ref: 110A
BOLT-UPSET,6X40
€ 2.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
€ 0.50
461A
461F0800
ref: 461A
WASHER-SPRING,8MM
€ 0.50
