FENDERS ('76 -'77 KZ400 - D3/D4)
KZ400D3 1976 CANADA

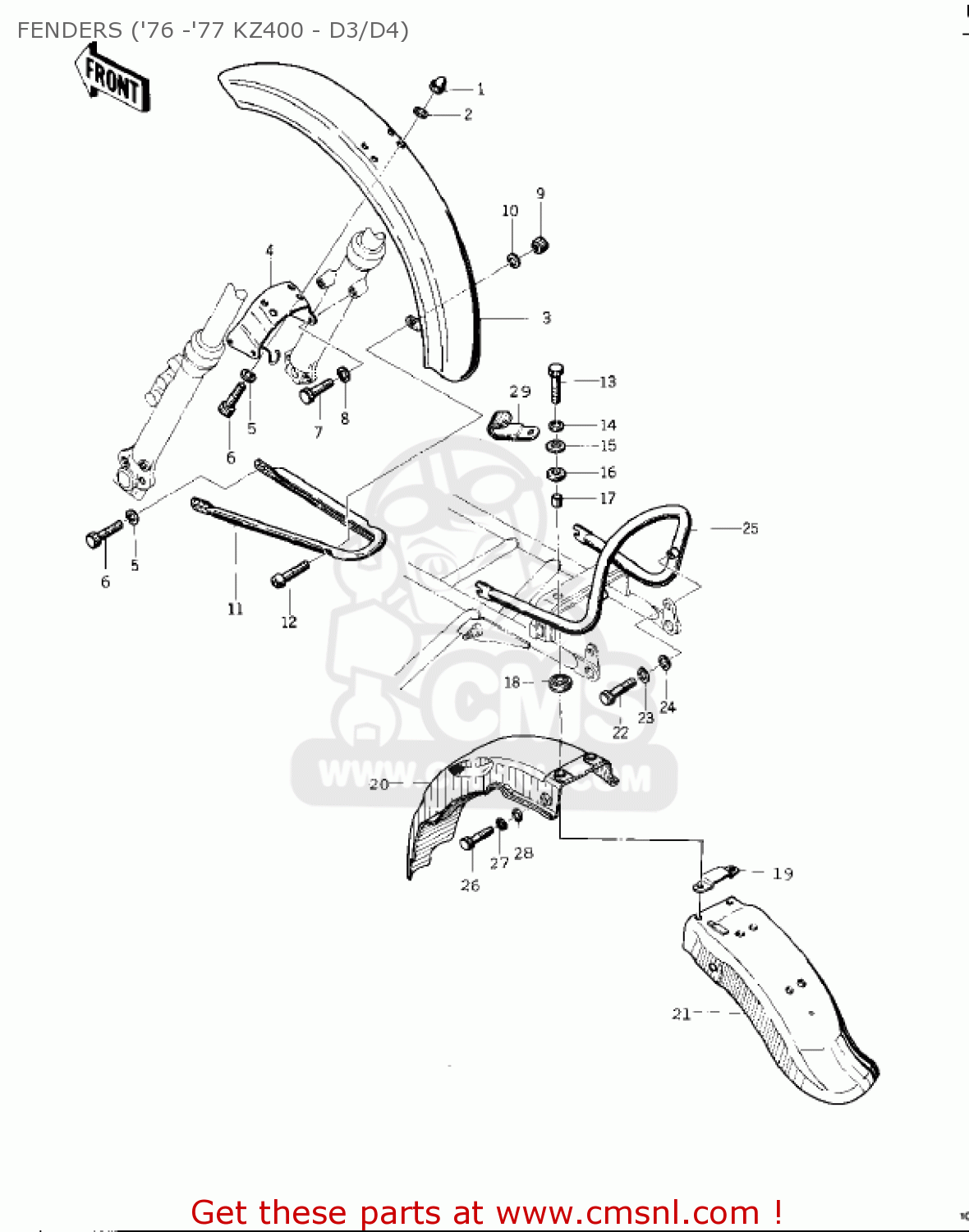

Fenders ('76 -'77 kz400 - d3/d4) diagram KZ400D3 1976 CANADA
FENDERS ('76 -'77 KZ400 - D3/D4) KZ400D3 1976 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
92015009
ref: 1
KZ400-D3
NUT,6MM
€ 2.00
1
322N0600
ref: 1
KZ400-D4
NUT-CAP,6MM
€ 1.00
1
322N0600
ref: 1
NUT-CAP,6MM
€ 1.00
2
411B0600
ref: 2
WASHER-PLAIN,6MM
€ 0.50
3
35004095
ref: 3
FENDER,FRONT
€ 124.00
4
35009032
ref: 4
BRACE,FRONT FENDER
€ 26.50
5
461F0600
ref: 5
WASHER-SPRING,6MM
€ 0.50
6
112G0612
ref: 6
BOLT-UPSET
€ 2.50
7
115G0816
ref: 7
BOLT-HEX,HEAD 8X16
€ 0.50
8
461F0800
ref: 8
WASHER-SPRING,8MM
€ 0.50
9
311B0500
ref: 9
NUT-HEX
€ 0.50
10
461F0500
ref: 10
WASHER-SPRING,5MM
€ 0.50
11
35010027
ref: 11
STAY,FENDER,FR
€ 40.50
12
222E0516A
ref: 12
KZ400-D3
SCREW,OVL CNTSNK,5X16
€ 1.50
12
222E0520A
ref: 12
KZ400-D4
SCREW,OVL CNTSNK,5X20
€ 2.00
13
112G0625
ref: 13
BOLT-UPSET,6X25
€ 4.00
14
461F0600
ref: 14
WASHER-SPRING,6MM
€ 0.50
15
92022228
ref: 15
OD=24
WASHER-PLAIN,7MM
€ 2.50
16
92075174
ref: 16
DAMPER,MALE
€ 3.00
17
92027162
ref: 17
KZ400-D3
COLLAR-REAR FENDER
€ 4.50
17
92027241
ref: 17
KZ400-D4
COLLAR
€ 4.50
18
92075175
ref: 18
DAMPER,FEMALE
€ 2.50
19
35042003
ref: 19
REAR FENDER PLATE
€ 6.50
20
35022138
ref: 20
FRONT
FENDER,REAR
€ 41.00
21
35022114
ref: 21
REAR
FENDER, REAR
€ 59.00
22
115B0814
ref: 22
BOLT SMALL UPSET 8X14
€ 1.00
23
461F0800
ref: 23
WASHER-SPRING,8MM
€ 0.50
24
411B0800
ref: 24
WASHER-PLAIN,8MM
€ 0.50
25
35032029
ref: 25
KZ400-D3
STAY,REAR FENDER
€ 53.50
25
35032042
ref: 25
KZ400-D4
STAY, REAR FENDER
€ 53.50
26
112G0618
ref: 26
BOLT-UPSET
€ 0.50
27
461F0600
ref: 27
WASHER-SPRING,6MM
€ 0.50
28
92022228
ref: 28
WASHER-PLAIN,7MM
€ 2.50
29
21126008
ref: 29
F/NO. 518217
CLAMP,WIRING HARNESS
€ 3.00
29
21126008
ref: 29
CLAMP,WIRING HARNESS
€ 3.00
