CHASSIS ELECTRICAL EQUIPMENT ('7
KZ400D3 1976 CANADA

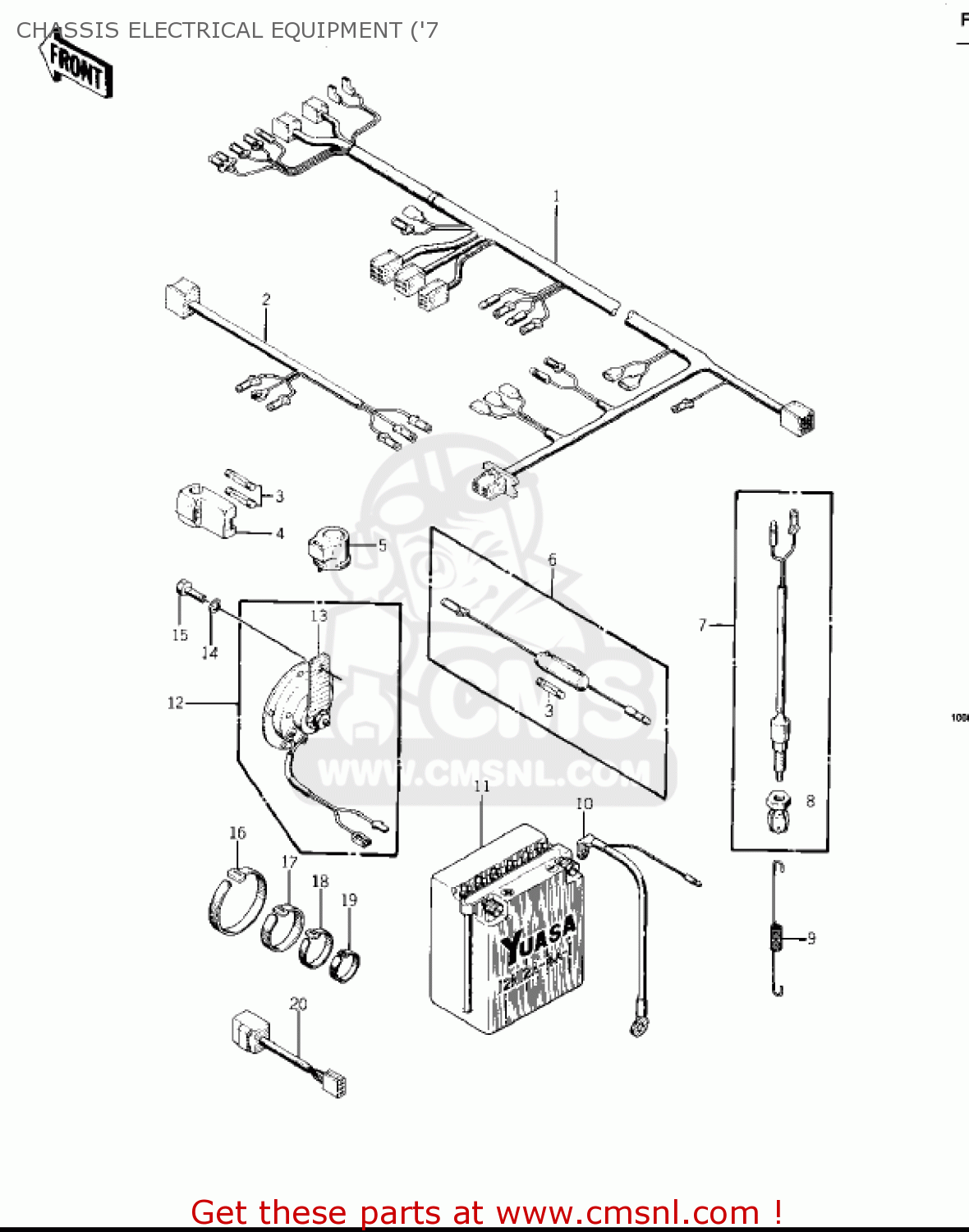

Chassis electrical equipment ('7 diagram KZ400D3 1976 CANADA
CHASSIS ELECTRICAL EQUIPMENT ('7 KZ400D3 1976 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
26001119
ref: 1
WIRING HARNESS,MAIN
€ 158.50
2
26002049
ref: 2
WIRING HARNESS,REAR
€ 24.50
3
26006005
ref: 3
20A
FUSE 20A
€ 3.50
4
26016002
ref: 4
HOLDER-SPARE FUSE
€ 5.50
5
27002011
ref: 5
RELAY-ASSY,TURN SIGNA
€ 69.50
6
26004024
ref: 6
FUSE ASSY,20A
€ 15.50
7
27010025
ref: 7
SWITCH,BRAKE LAMP
€ 18.50
8
27037001
ref: 8
NUT,BRAKE LAMP SWICH
€ 18.50
9
27011015
ref: 9
SPRING,BRAKE LAMP SW
€ 6.50
10
26010036
ref: 10
WIRE,BATTERY LEAD
€ 9.00
11
26012045
ref: 11
BATTERY, 12V 12AH
€ 93.00
12
27003053
ref: 12
HORN
€ 99.00
13
27038002
ref: 13
BRACKET,HORN
€ 1.50
14
461F0800
ref: 14
WASHER-SPRING,8MM
€ 0.50
15
115B0814
ref: 15
BOLT SMALL UPSET 8X14
€ 1.00
16
92072032
ref: 16
BAND,LONG
€ 3.00
17
92072031
ref: 17
BAND,MIDDLE
€ 3.00
18
92072030
ref: 18
BAND,SHORT
€ 3.00
19
92072067
ref: 19
BAND,L=95
€ 2.50
20
28019002
ref: 20
SWITCH,BK LIGHT IND
€ 49.50
