CHASSIS ELECTRICAL EQUIPMENT ('

KZ400D3 1976 CANADA

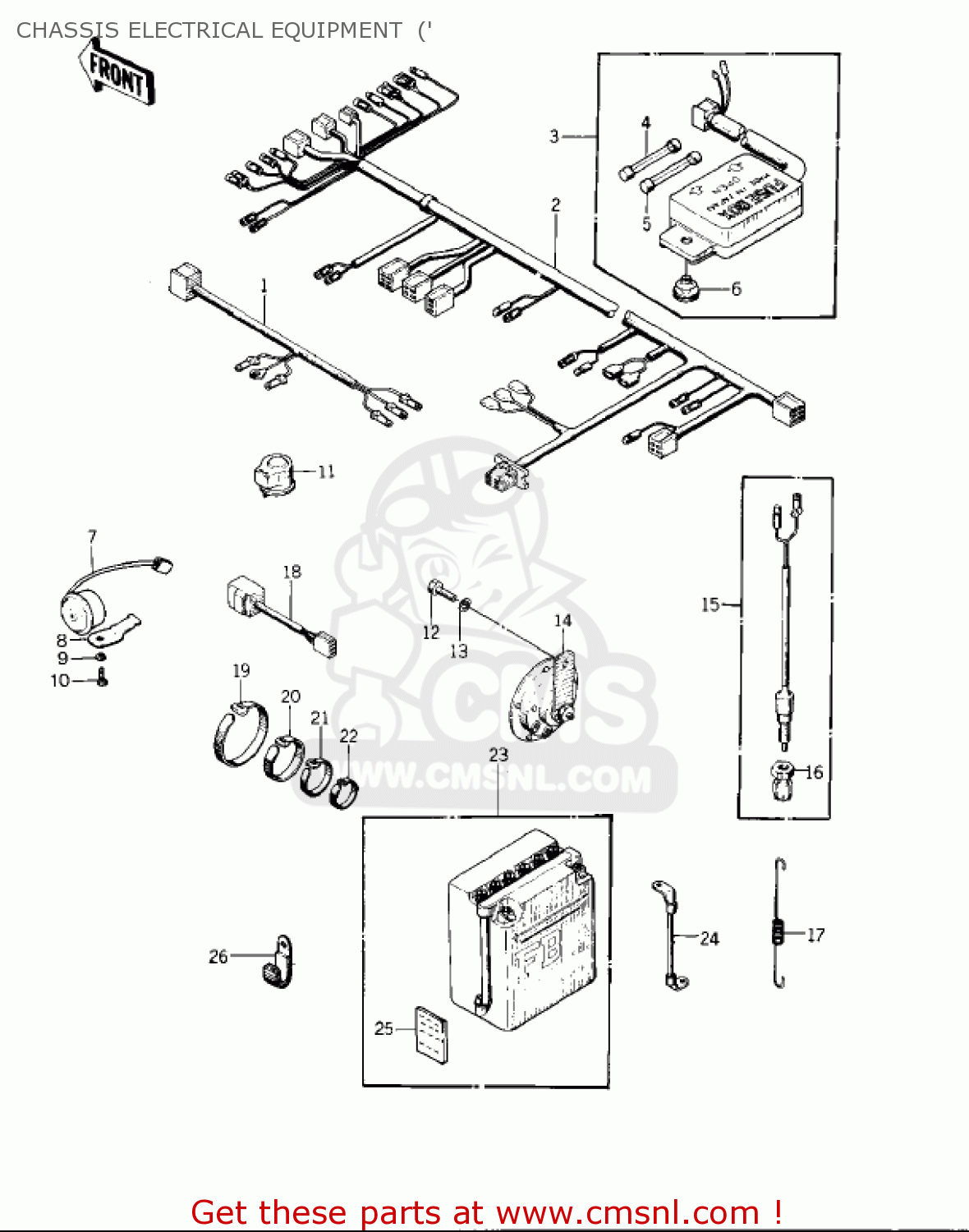

Chassis electrical equipment (' diagram KZ400D3 1976 CANADA

CHASSIS ELECTRICAL EQUIPMENT (' KZ400D3 1976 CANADA
CHASSIS ELECTRICAL EQUIPMENT (' KZ400D3 1976 CANADA
CHASSIS ELECTRICAL EQUIPMENT (' KZ400D3 1976 CANADA
prices are in EUR
ref
part #
description
quantity
1
26002049
ref: 1
WIRING HARNESS,REAR
26002049
€ 24.50
2
26001136
ref: 2
WIRING HARNESS,MAIN
€ 194.50
3
26004035
ref: 3
FUSE-ASSY
26004035
€ 53.50
4
26006005
ref: 4
20A
FUSE 20A
26006005
€ 3.50
5
26006003
ref: 5
10A
FUSE 10A
26006003
€ 3.00
6
92075279
ref: 6
DAMPER,FUSE
92075279
€ 3.50
7
27040001
ref: 7
ALARM,TURN SIGNAL
27040001
€ 26.00
8
27023004
ref: 8
KZ400-D3
BRACKET,ALARM
27023004
€ 2.00
9
461F0600
ref: 9
WASHER-SPRING,6MM
461F0600
€ 0.50
10
220B0610
ref: 10
SCREW-PAN HEAD,6X10
220B0610
€ 2.00
11
27002011
ref: 11
RELAY-ASSY,TURN SIGNA
27002011
€ 69.50
12
115G0820
ref: 12
BOLT,8X20
115G0820
€ 2.00
13
461F0800
ref: 13
WASHER-SPRING,8MM
461F0800
€ 0.50
14
270031006
ref: 14
HORN
270031006
€ 99.00
15
27010025
ref: 15
SWITCH,BRAKE LAMP
27010025
€ 18.50
16
27037001
ref: 16
NUT,BRAKE LAMP SWICH
€ 18.50
17
27011015
ref: 17
SPRING,BRAKE LAMP SW
27011015
€ 6.50
18
28019002
ref: 18
SWITCH,BK LIGHT IND
28019002
€ 49.50
19
92072032
ref: 19
L=218 MM
BAND,LONG
92072032
€ 3.00
20
92072031
ref: 20
L=149 MM
BAND,MIDDLE
92072031
€ 3.00
21
92072030
ref: 21
L=123 MM
BAND,SHORT
92072030
€ 3.00
22
92072067
ref: 22
L=95 MM
BAND,L=95
€ 2.50
23
26012045
ref: 23
KZ400-D3
BATTERY, 12V 12AH
€ 93.00
23
26012045
ref: 23
KZ400-D4
BATTERY, 12V 12AH
€ 93.00
24
26010044
ref: 24
WIRE,LEAD
€ 13.00
25
56022057
ref: 25
UNAVAILABLE IN PRICE BOOK
€ 0.00
26
21126008
ref: 26
CLAMP,WIRING HARNESS
21126008
€ 3.00
