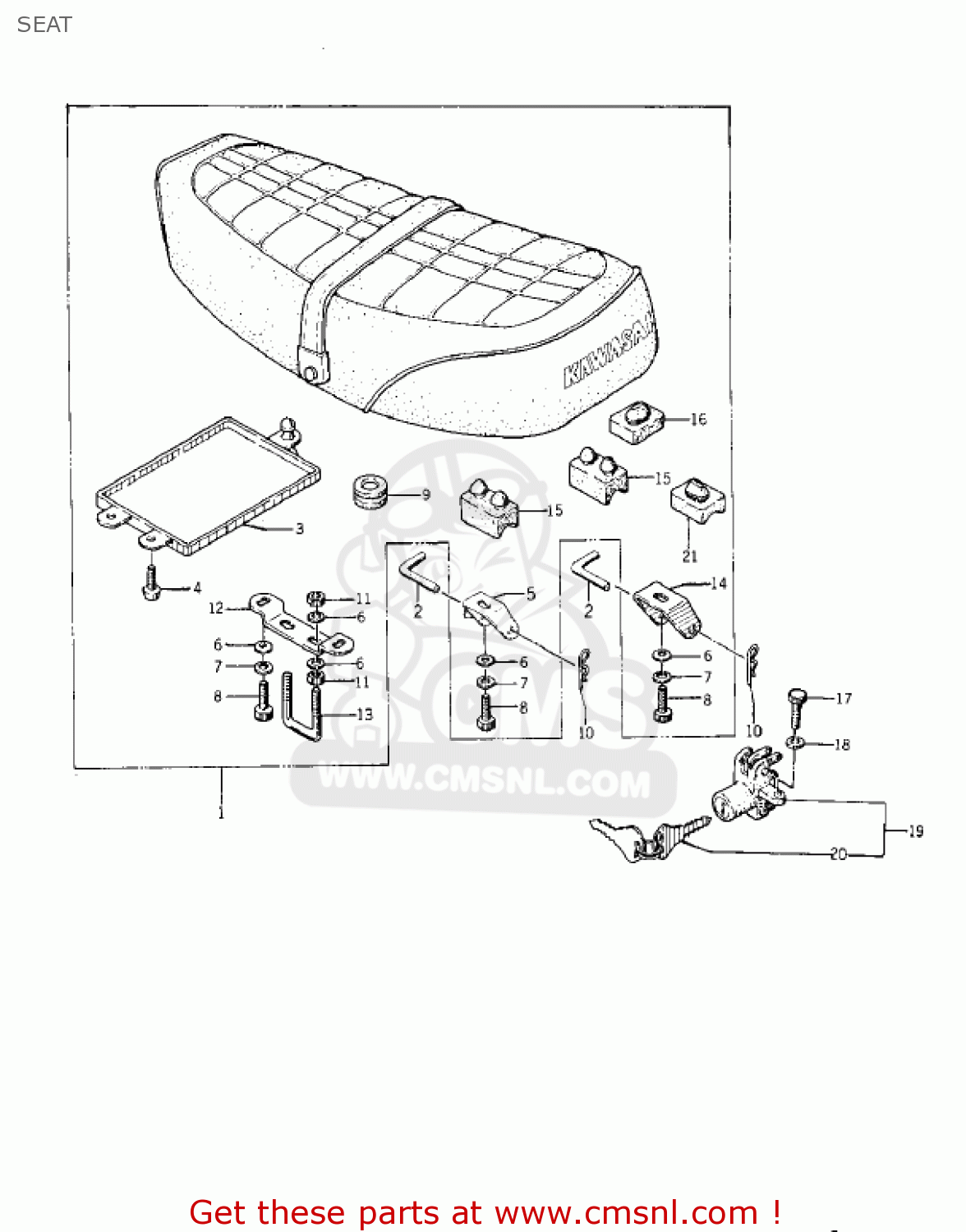

SEAT

ref

part #

description

quantity

1

53001133
ref: 1

SEAT ASSEMBLY,DUAL

€ 909.50

2

920431064
ref: 2

PIN,SEAT PIVOT

€ 3.50

3

32099011
ref: 3

CASE,MANUAL

€ 11.50

4

220B0510
ref: 4

SCREW-PAN-CROS,5X10

€ 0.50

5

53009035
ref: 5

HINGE,FRONT

€ 4.00

6

411B0600
ref: 6

WASHER-PLAIN,6MM

€ 0.50

7

461F0600
ref: 7

WASHER-SPRING,6MM

€ 0.50

8

112B0614
ref: 8

BOLT-UPSET 6X14

€ 2.50

9

92071056
ref: 9

GROMMET

€ 2.50

10

92041003
ref: 10

COTTER

€ 0.50

11

311B0600
ref: 11

NUT,6MM

€ 0.50

12

53058001
ref: 12

BRACKET,SEAT CATCH

€ 6.00

13

53056002
ref: 13

HOOK,SEAT

€ 11.50

14

53009036
ref: 14

HINGE,REAR

€ 5.50

15

92075139
ref: 15

DAMPER,SEAT

€ 7.00

16

92075099
ref: 16

DAMPER RUBBER

€ 3.50

17

112G0612
ref: 17

BOLT-UPSET

€ 2.50

18

461F0600
ref: 18

WASHER-SPRING,6MM

€ 0.50

19

27030002
ref: 19

LOCK ASSY,SEAT

€ 45.00

21

92075156
ref: 21

DAMPER,SEAT

€ 6.50
