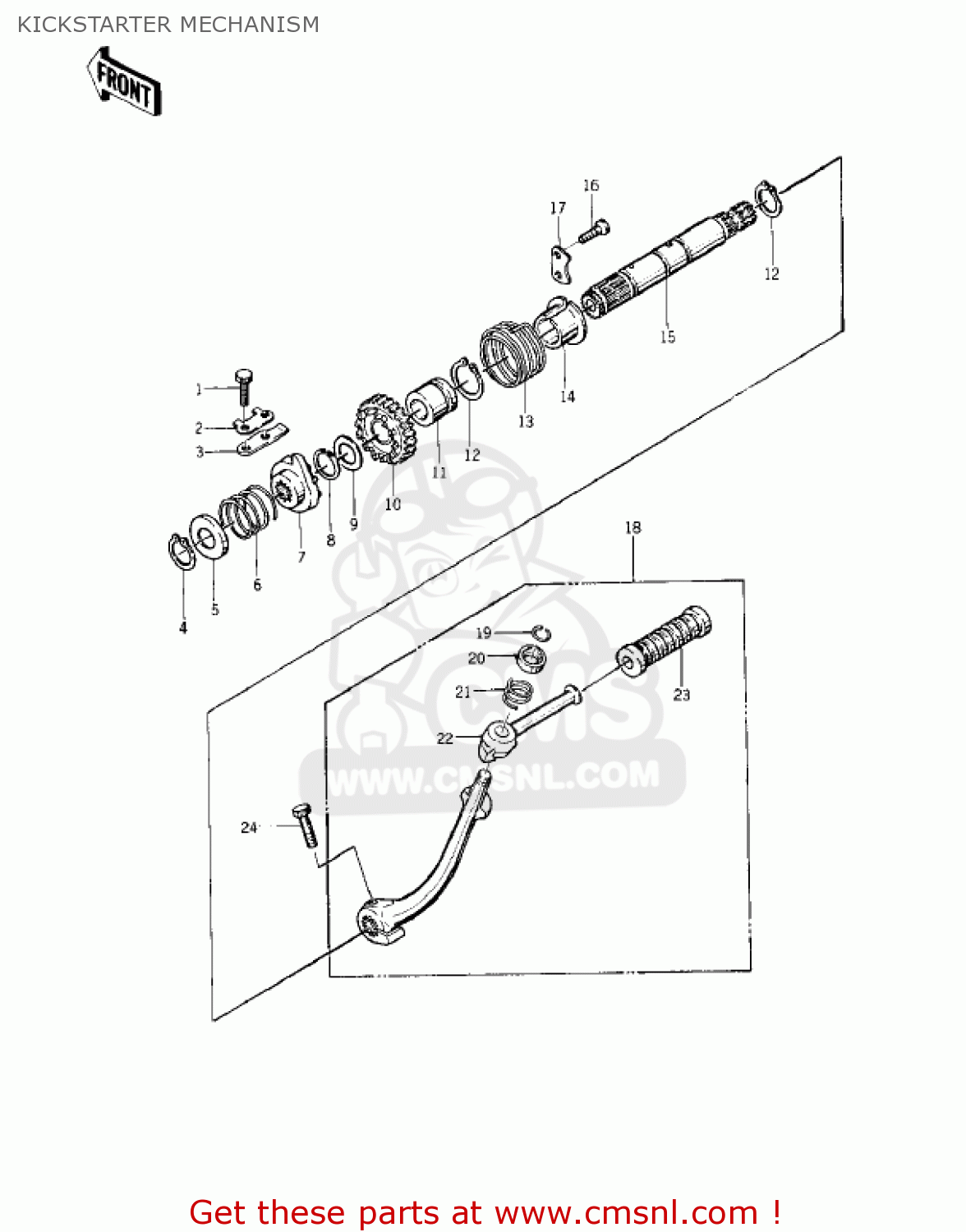

KICKSTARTER MECHANISM

ref

part #

description

quantity

1

112B0614
ref: 1

BOLT-UPSET 6X14

€ 2.50

2

92024036
ref: 2

WASHER-LOCK

€ 1.00

3

13072012
ref: 3

STOPPER,KICKSTARTER

€ 7.00

4

480J1900
ref: 4

CIRCLIP-TYPE-C,19MM

€ 1.00

5

92102008
ref: 5

CAP-KICKSTARTER

€ 4.00

6

92081104
ref: 6

SPRING-RATCHET

€ 6.50

7

13078011
ref: 7
KZ400-A1

RATCHET

€ 58.50

7

13078011
ref: 7
KZ400-A2

RATCHET

€ 58.50

8

92033029
ref: 8

CIRCLIP,18MM

€ 6.50

9

92022112
ref: 9

WASHER,20.5X30X1,STEE

€ 6.00

10

13068031
ref: 10

GEAR,KICKSTARTER,23T

€ 34.50

11

92028175
ref: 11

BUSHING,KICK SHAFT

€ 12.50

12

480J2000
ref: 12

CIRCLIP-TYPE-C,20MM

€ 1.00

13

92082006
ref: 13

SPRING,KICK RETURN

€ 17.00

14

13070009
ref: 14

GUIDE,KICK SPRING

€ 8.00

15

13066036
ref: 15

SHAFT,KICKSTARTER

€ 47.00

16

221B0616
ref: 16

SCREW-CNTSNK HD,6X16

€ 0.50

17

13169007
ref: 17

PLATE-DRUM LEV POSTON

€ 9.00

18

13058053
ref: 18

PEDAL ASY,KICKSTRTER

€ 267.50

19

92036025
ref: 19
KZ400-A1

CIRCLIP,KICK

€ 3.50

19

92036026
ref: 19
KZ400-A2

CIRCLIP, KICK

€ 1.50

20

92022294
ref: 20

WASHER,KICKPEDAL

€ 1.50

21

92081136
ref: 21

SPRING,KICK PEDAL

€ 7.50

22

13060017
ref: 22

PEDAL,KICKSTARTER

€ 14.50

23

13063004
ref: 23

DAMPER,KICK PEDAL

€ 6.50

24

114G0828
ref: 24
KZ400-A1

BOLT-SMALL,8X28

€ 2.50

24

114G0828
ref: 24
KZ400-A2

BOLT-SMALL,8X28

€ 2.50

all assemblies
