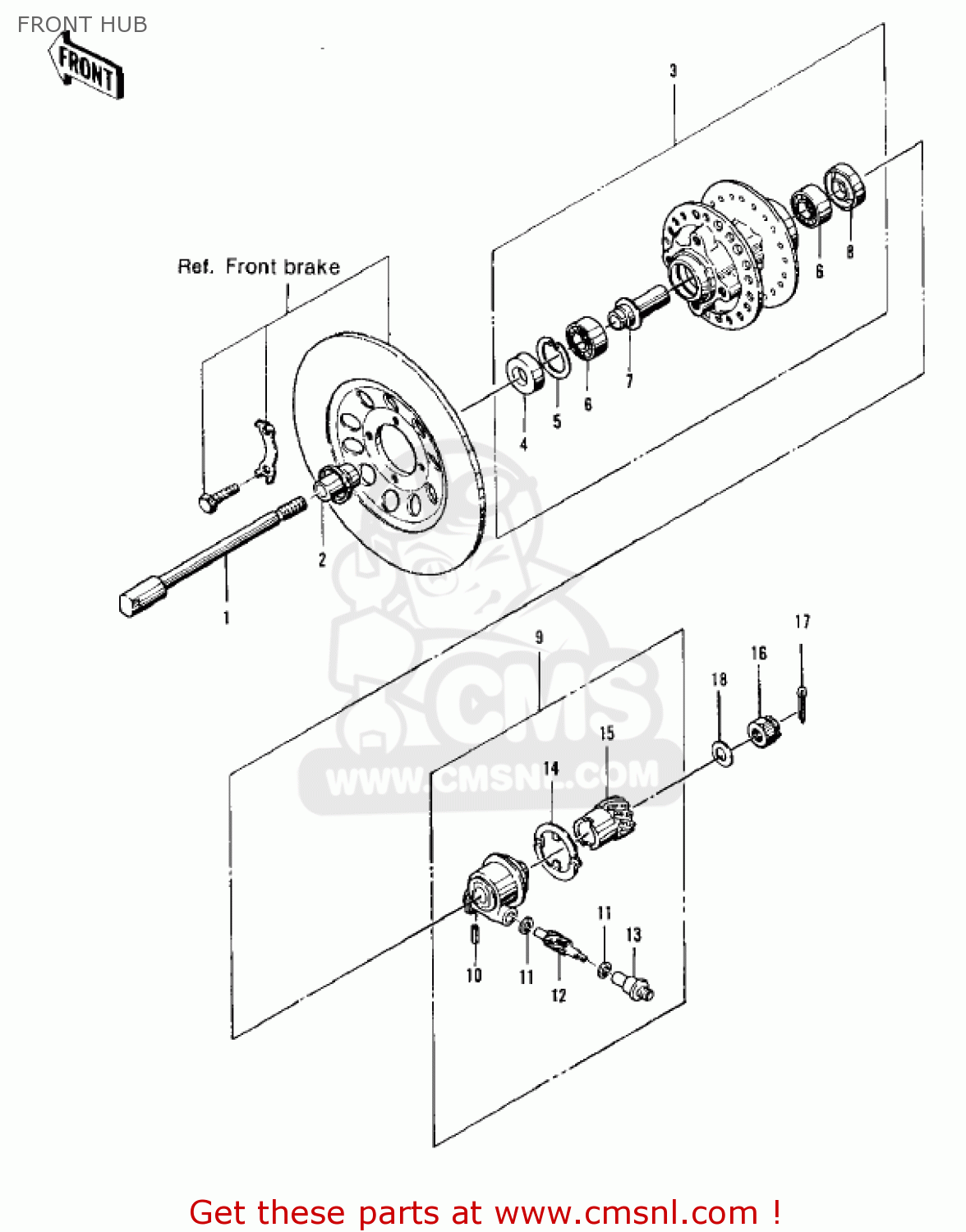

FRONT HUB

ref

part #

description

quantity

1

41068045
ref: 1

AXLE,FRONT

€ 25.00

2

41069028
ref: 2

COLLAR,FRONT AXLE

€ 8.00

3

4103403880
ref: 3

DRUM ASY,FR BRK,BUFF

€ 162.00

4

92052011
ref: 4

OIL SEAL,WTC22427

€ 14.00

5

920331041
ref: 5

CIRCLIP,42MM

€ 4.00

6

601B6302
ref: 6

BEARING-BALL,#6302C3

€ 16.00

7

41039026
ref: 7

COLLAR,FR HUB BEARNG

€ 7.50

8

92052012
ref: 8

OIL SEAL,WTC40528

€ 10.50

9

41078006
ref: 9

GEAR BOX ASSY

€ 97.50

10

41082001
ref: 10

PIN-SPRING

€ 2.50

11

41063001
ref: 11

WASHER-THRST SPD PINI

€ 3.00

12

41060016
ref: 12

PINION,SPEEDOMETER

€ 19.50

13

41062005
ref: 13

BUSHING,SPEEDOMETER C

€ 12.00

14

41064012
ref: 14

DRIVE,SPEED GEAR

€ 9.00

15

41059025
ref: 15

GEAR,SPEEDOMETER

€ 17.50

16

42045020
ref: 16

NUT,14MM

€ 6.50

17

550D3025
ref: 17

PIN-COTTER,3.0X25

€ 0.50

18

410B1400
ref: 18

410B1400

all assemblies
