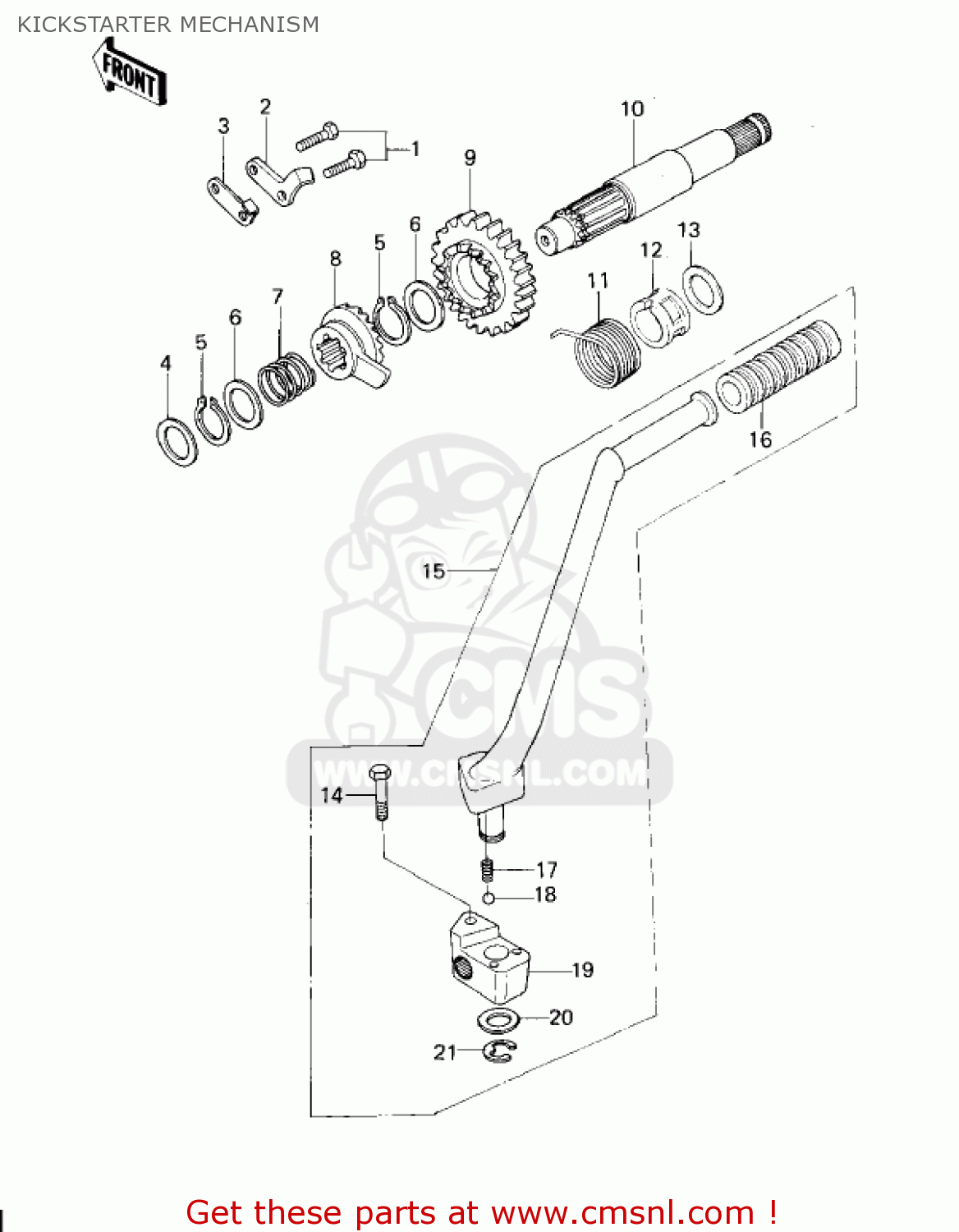

KICKSTARTER MECHANISM

ref

part #

description

quantity

1

112G0618
ref: 1

BOLT-UPSET

€ 0.50

2

132061004
ref: 2

GUIDE,KICK RATCHET

€ 4.00

3

13072017
ref: 3

STOPPER,KICKSTARTER

€ 9.50

4

92022269
ref: 4

WASHER,PLAIN

€ 1.00

5

480J1600
ref: 5

CIRCLIP-TYPE-C,16MM

€ 2.50

6

92022315
ref: 6

WASHER, 16.8X22X0.5

€ 4.00

7

92081122
ref: 7

SPRING,RATCHET

€ 6.00

8

130781052
ref: 8

RATCHET,KL250-D2

€ 50.50

9

132161099
ref: 9

GEAR-COMP,KICKSTARTER

€ 38.50

10

13066044
ref: 10

SHAFT-KICK

€ 70.50

11

92082003
ref: 11

SPRING-KICKSTARTER

€ 19.00

12

13070011
ref: 12

GUIDE,KICKSTARTER SPR

€ 6.50

13

92022118
ref: 13

WASHER,18.5X23X1.2

€ 3.00

14

114G0832
ref: 14

BOLT-HEX HEAD,8X32

€ 2.50

15

130641020
ref: 15

LEVER-ASSY-KICK

€ 156.00

16

13063004
ref: 16

DAMPER,KICK PEDAL

€ 6.50

17

92081154
ref: 17

SPRING

€ 2.00

18

600A0800
ref: 18

BALL-STEEL,1/4

€ 0.50

19

13061031
ref: 19

BOSS, KICK PEDAL

€ 26.00

20

920221019
ref: 20
1.2T

WASHER,15.2X20X1

€ 3.50

21

482K0100
ref: 21

CIRCLIP-TYPE-E,10MM

€ 0.50
