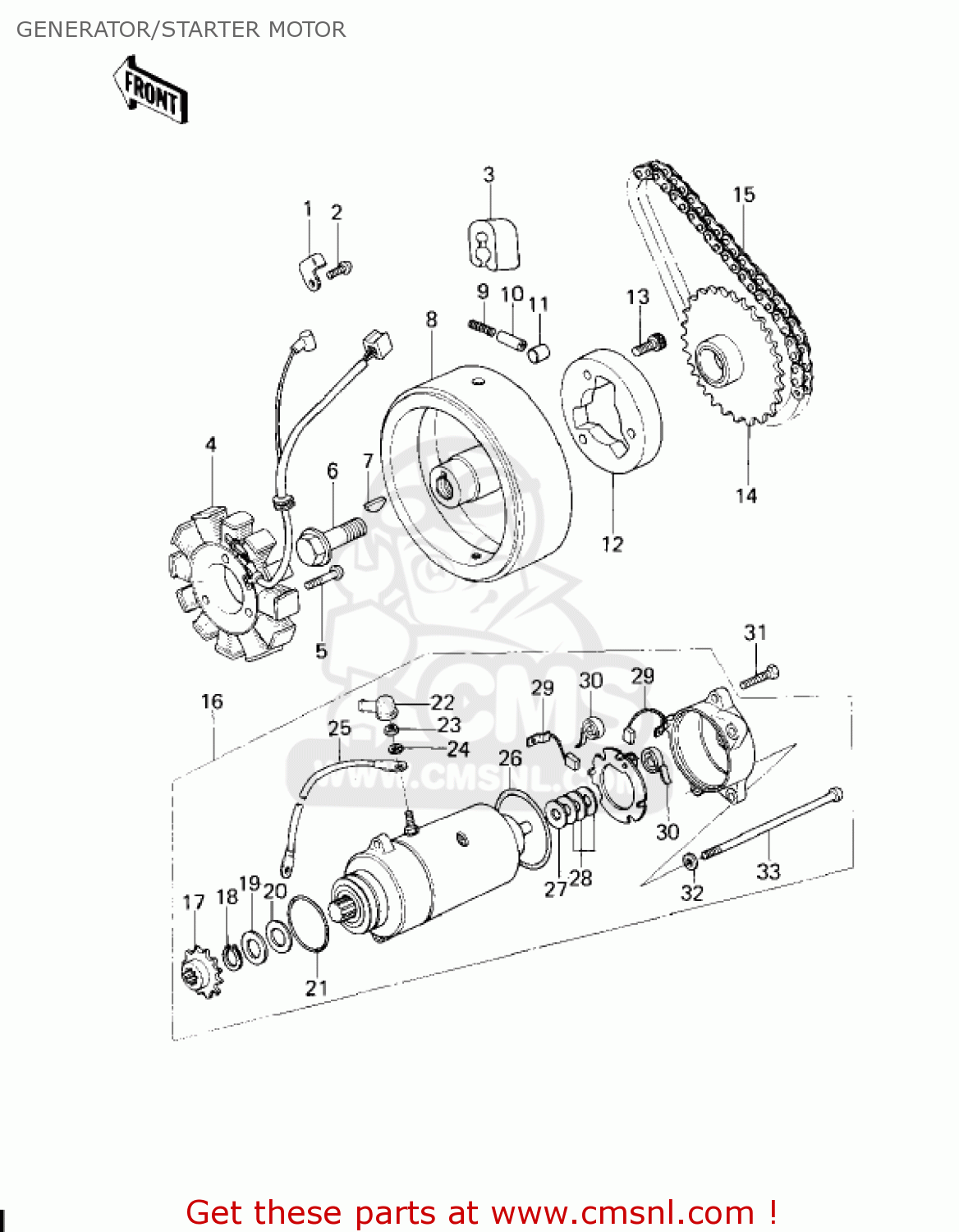

GENERATOR/STARTER MOTOR

ref

part #

description

quantity

1

92037194
ref: 1

CLAMP

€ 2.50

2

220B0614
ref: 2

SCREW-PAN HEAD,6X14

€ 2.00

3

920371049
ref: 3

CLAMP, CABLE

€ 2.00

4

210031002
ref: 4

STATOR

€ 249.00

5

220B0625
ref: 5

SCREW-PAN HEAD,6X25

€ 1.50

6

920011201
ref: 6

BOLT,ROTOR,10X40

€ 7.00

7

92038001
ref: 7

WOODRUFF KEY

€ 3.00

8

210071010
ref: 8
KZ200-A1

ROTOR

€ 285.50

8

210071010
ref: 8
KZ200-A1A~

ROTOR

€ 285.50

9

92081159
ref: 9

SPRING, COIL

€ 2.50

10

92043132
ref: 10

PIN

€ 4.00

11

92122006
ref: 11

ROLLER

€ 4.00

12

13194008
ref: 12

CLUTCH-ONEWAY

€ 107.00

13

120P0816
ref: 13

BOLT-SOCKET

€ 2.50

14

120461107
ref: 14

SPROCKET,STARTER CLUT

€ 82.50

15

920571009
ref: 15

CHAIN,DYNAMO

€ 12.50

16

211631036
ref: 16

STARTER-ELECTRIC

€ 380.00

17

120461004
ref: 17

SPROCKET,STARTER MOTR

€ 35.50

18

92033037
ref: 18

RING-SNAP,13MM

€ 6.50

19

21025008
ref: 19
0.2T

WASHER,PLAIN,14MM

€ 3.50

20

21025009
ref: 20
0.5T

WASHER,PLAIN,14MM

€ 3.50

21

21027005
ref: 21

'O' RING,42.8MM

€ 5.50

22

21017020
ref: 22

CAP,STARTING MOTOR

€ 6.00

23

312B0600
ref: 23

NUT,6MM

€ 0.50

24

461F0600
ref: 24

WASHER-SPRING,6MM

€ 0.50

25

260111201
ref: 25

WIRE-LEAD,STARTER MOT

€ 32.50

26

21027006
ref: 26

RING-O,62MM

€ 8.00

27

21025010
ref: 27

WASHER,THRUST,T=1.6

€ 4.00

28

21025011
ref: 28

WASHER, THRUST, 0.2T

€ 4.00

29

21039004
ref: 29

BRUSH,CARBON

€ 23.00

30

21040004
ref: 30

SPRING-BRUSH

€ 5.50

31

130G0625
ref: 31

BOLT,FLANGED,6X25

€ 0.50

32

461F0600
ref: 32

WASHER-SPRING,6MM

€ 0.50

33

920011046
ref: 33

SCREW,PAN HEAD, 6X130

€ 6.00

all assemblies
