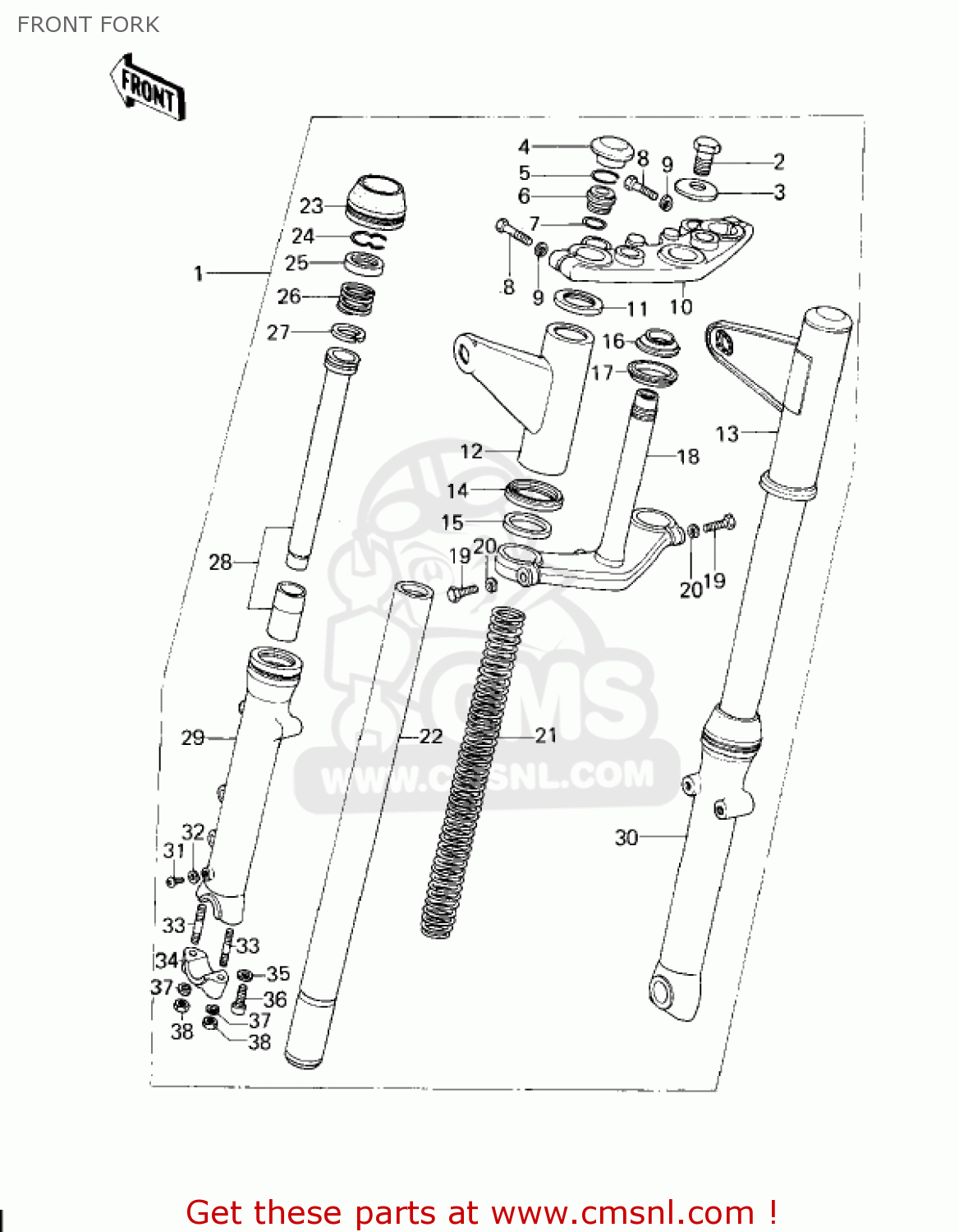

FRONT FORK

ref

part #

description

quantity

1

44001202
ref: 1

FRONT FORK ASSY

€ 679.50

2

44041072
ref: 2

BOLT,STEERING STEM

€ 12.50

3

44043056
ref: 3

WASHER,STEERING STEM

€ 9.00

4

44062008
ref: 4

CAP, FORK TOP

€ 6.00

5

44044023
ref: 5

CIRCLIP

€ 3.50

6

44029022
ref: 6

GUIDE, FORK SPRING

€ 8.00

7

44046025
ref: 7

'O' RING, FORK

€ 4.00

8

920011063
ref: 8

BOLT,HEX HEAD,8X40

€ 6.50

9

461F0800
ref: 9

WASHER-SPRING,8MM

€ 0.50

10

44039078
ref: 10

HOLDER-FORK UPPER

€ 250.50

11

44064029
ref: 11

GUIDE, FORK COVER, A

€ 11.50

12

44033087
ref: 12

COVER, L.H FORK

€ 75.00

13

44034087
ref: 13

COVER, R.H FORK

€ 91.00

14

44064028
ref: 14

GUIDE,FORK COVER, B

€ 9.00

15

44045049
ref: 15

GASKET,FORK COVER (NAS)

€ 3.50

16

92047010
ref: 16

CONE-STERNG BERG LOW

€ 10.00

17

44010027
ref: 17

SEAL,STEERING STEM

€ 7.50

18

44037110
ref: 18

STEM, STEERING

€ 126.00

19

44041079
ref: 19

BOLT,HEX HEAD,10X30

€ 8.00

20

461F1000
ref: 20

WASHER-SPRING,10MM

€ 0.50

21

44026075
ref: 21

SPRING, FORK

€ 32.50

22

44013060
ref: 22

PIPE-FORK INNER

€ 127.00

23

44010037
ref: 23

DUST SHEILD, FORK

€ 12.50

24

44044020
ref: 24

CIRCLIP,45MM

€ 9.50

25

44009028
ref: 25

OIL SEAL, FORK

€ 18.50

26

44026060
ref: 26

SPRING, REBOUND

€ 4.00

27

44025006
ref: 27

RING-FORK PISTON

€ 7.00

28

44022041
ref: 28

CYLINDER-FORK

€ 67.50

29

44005068
ref: 29

TUBE,L.H FORK OUTER

€ 193.50

30

44006066
ref: 30

TUBE,R.H FORK OUTER

€ 111.50

31

220B0406
ref: 31

SCREW-PAN-CROS,4X6

€ 2.50

32

44045046
ref: 32

GASKET,FORK DRAIN PLU (NAS)

€ 4.50

33

172G0830
ref: 33

STUD,8X30

€ 1.50

34

44063016
ref: 34

HOLDER, FRONT AXLE

€ 10.00

35

44045051
ref: 35

GASKET,FORK CYLINDER (NAS)

€ 4.00

36

44041078
ref: 36

BOLT, FORK CYLINDER

€ 6.50

37

461F0800
ref: 37

WASHER-SPRING,8MM

€ 0.50

38

92017013
ref: 38

NUT,LOCK,8MM

€ 5.50

all assemblies
