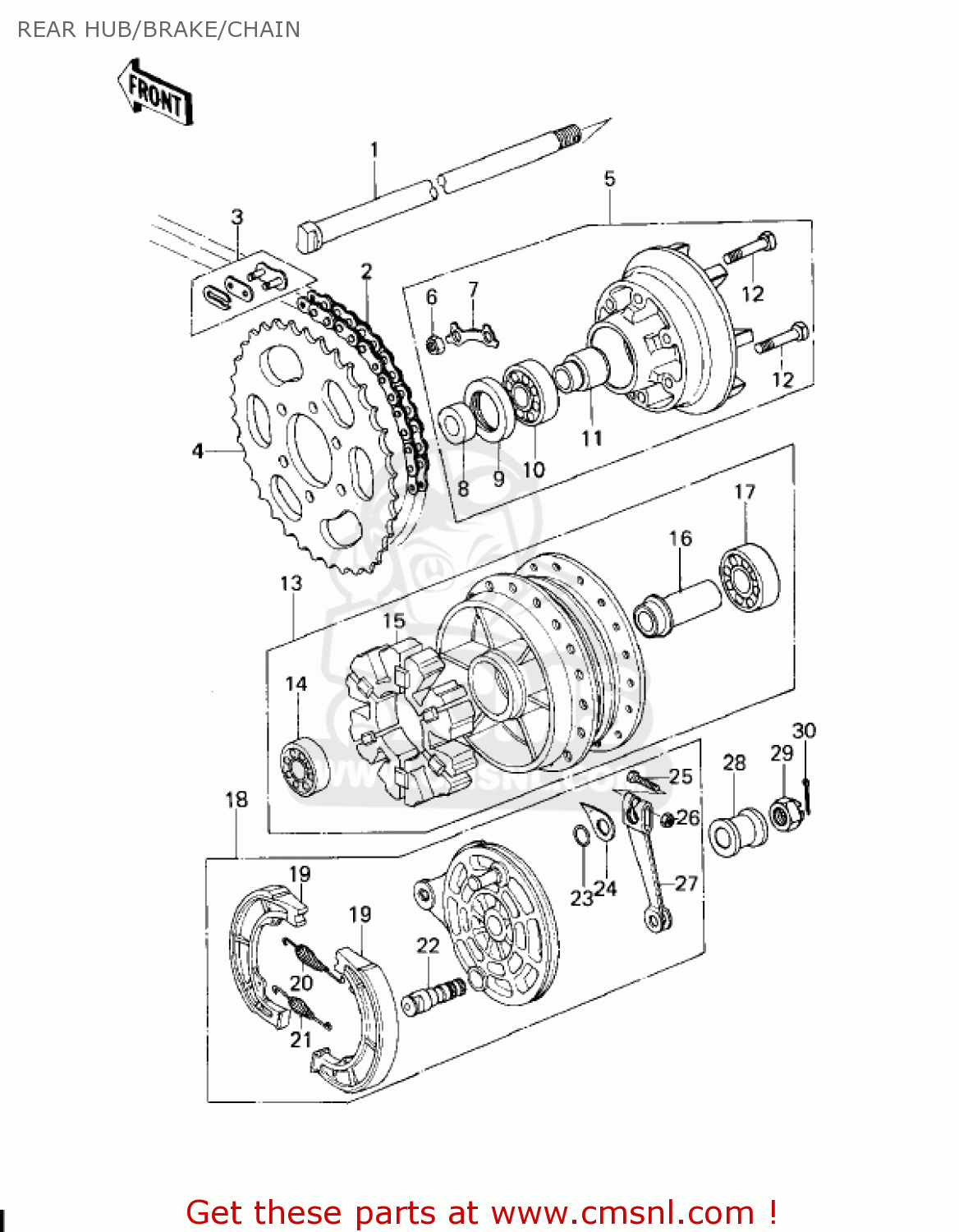

REAR HUB/BRAKE/CHAIN

ref

part #

description

quantity

1

42031059
ref: 1

AXLE, REAR

€ 45.00

2

92057106
ref: 2
EK520SH

CHAIN ASSY, DRIVE

€ 45.00

3

920581001
ref: 3

JOINT-CHAIN

€ 4.50

4

420411002
ref: 4

REAR SPROCKET, 40T

€ 26.00

5

420331029
ref: 5

COUPLING-ASSY,RR HUB

€ 112.50

6

311B0800
ref: 6

NUT,8MM

€ 0.50

7

92088019
ref: 7

WASHER,SPROCKET LOCK

€ 4.00

8

42037029
ref: 8

COLLAR,REAR HUB COUPR

€ 12.00

9

92050060
ref: 9

OIL SEAL,RR HUB BRNK

€ 12.00

10

601B6004
ref: 10

BEARING-BALL,#6004C3

€ 10.50

11

42036031
ref: 11

SLEEVE,RR HUB COUPLIN

€ 16.00

12

92001021
ref: 12

BOLT-REAR SPROCKET

€ 3.50

13

42005057
ref: 13

DRUM-ASSY,RR

€ 454.00

14

601B6202
ref: 14

BEARING-BALL,#6202C3

€ 14.50

15

42014030
ref: 15

DAMPER,REAR HUB SHOCK

€ 7.50

16

42010037
ref: 16

COLLAR,L=57

€ 9.00

17

601B6302Z
ref: 17

BEARING-BALL,#6302ZC3

€ 22.50

18

410351090
ref: 18

PANEL-ASSY-BRAKE,RR

€ 278.00

19

42019010
ref: 19

SHOE,BRAKE (MCA)

€ 26.00

20

920811766
ref: 20

SPRING,BRAKE SHOE

€ 5.50

21

920811550
ref: 21

SPRING,BRAKE SHOE

€ 6.00

22

42026026
ref: 22

CAM-BRAKE

€ 16.00

23

92055004
ref: 23

RING-O,BRAKE CAM

€ 3.00

24

41085013
ref: 24

INDICATOR,BRAKE SHOE

€ 10.00

25

112G0630
ref: 25

BOLT-UPSET

€ 1.00

26

41072007
ref: 26

NUT,6MM

€ 2.50

27

41053002
ref: 27

LEVER-BRAKE CAM

€ 11.50

28

42032076
ref: 28

COLLAR, REAR AXLE

€ 11.50

29

42045020
ref: 29

NUT,14MM

€ 6.50

30

550D3025
ref: 30

PIN-COTTER,3.0X25

€ 0.50
