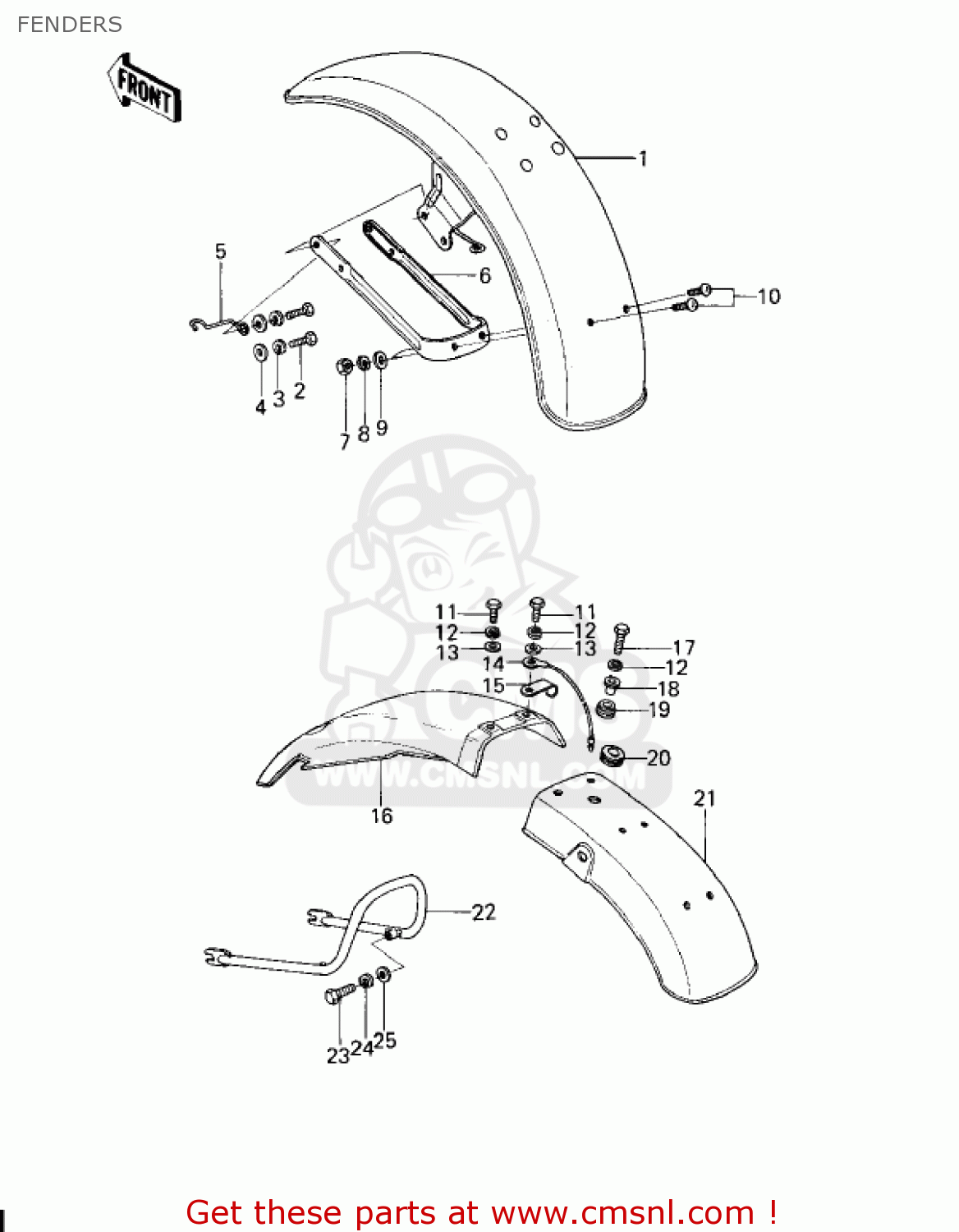

FENDERS

ref

part #

description

quantity

1

350015001
ref: 1

FENDER-ASSY-FRONT

€ 148.00

2

115G0818
ref: 2

BOLT SMALL-UPSET

€ 2.50

3

461F0800
ref: 3

WASHER-SPRING,8MM

€ 0.50

4

411B0800
ref: 4

WASHER-PLAIN,8MM

€ 0.50

5

92037204
ref: 5

CLAMP, CABLE

€ 4.50

6

35010031
ref: 6

STAY,FENDER,FR

€ 25.00

7

312B0600
ref: 7

NUT,6MM

€ 0.50

8

461F0600
ref: 8

WASHER-SPRING,6MM

€ 0.50

9

410B0600
ref: 9

WASHER-PLAIN-SMALL,6M

€ 0.50

10

220E0612
ref: 10

SCREW-PAN HEAD,6X12

€ 3.00

11

112G0616
ref: 11

BOLT UPSET,6X16

€ 1.00

12

461F0600
ref: 12

WASHER-SPRING,6MM

€ 0.50

13

92022228
ref: 13

WASHER-PLAIN,7MM

€ 2.50

14

26011082
ref: 14

WIRE-LEAD,GROUND

€ 3.50

15

92037085
ref: 15

CLAMP

€ 1.50

16

35022156
ref: 16
FRONT

FENDER, REAR, FRONT

€ 27.00

17

112G0625
ref: 17

BOLT-UPSET,6X25

€ 4.00

18

92027194
ref: 18

COLLAR

€ 3.50

19

92075277
ref: 19

DAMPER

€ 1.00

20

92071010
ref: 20

GROMMET,HARNESS

€ 2.00

21

35022157
ref: 21
REAR

REAR FENDER

€ 230.00

22

35032041
ref: 22

REAR FENDER STAY

€ 198.50

23

115G0816
ref: 23

BOLT-HEX,HEAD 8X16

€ 0.50

24

461F0800
ref: 24

WASHER-SPRING,8MM

€ 0.50

05

411B0800
ref: 05

WASHER-PLAIN,8MM

€ 0.50

all assemblies
