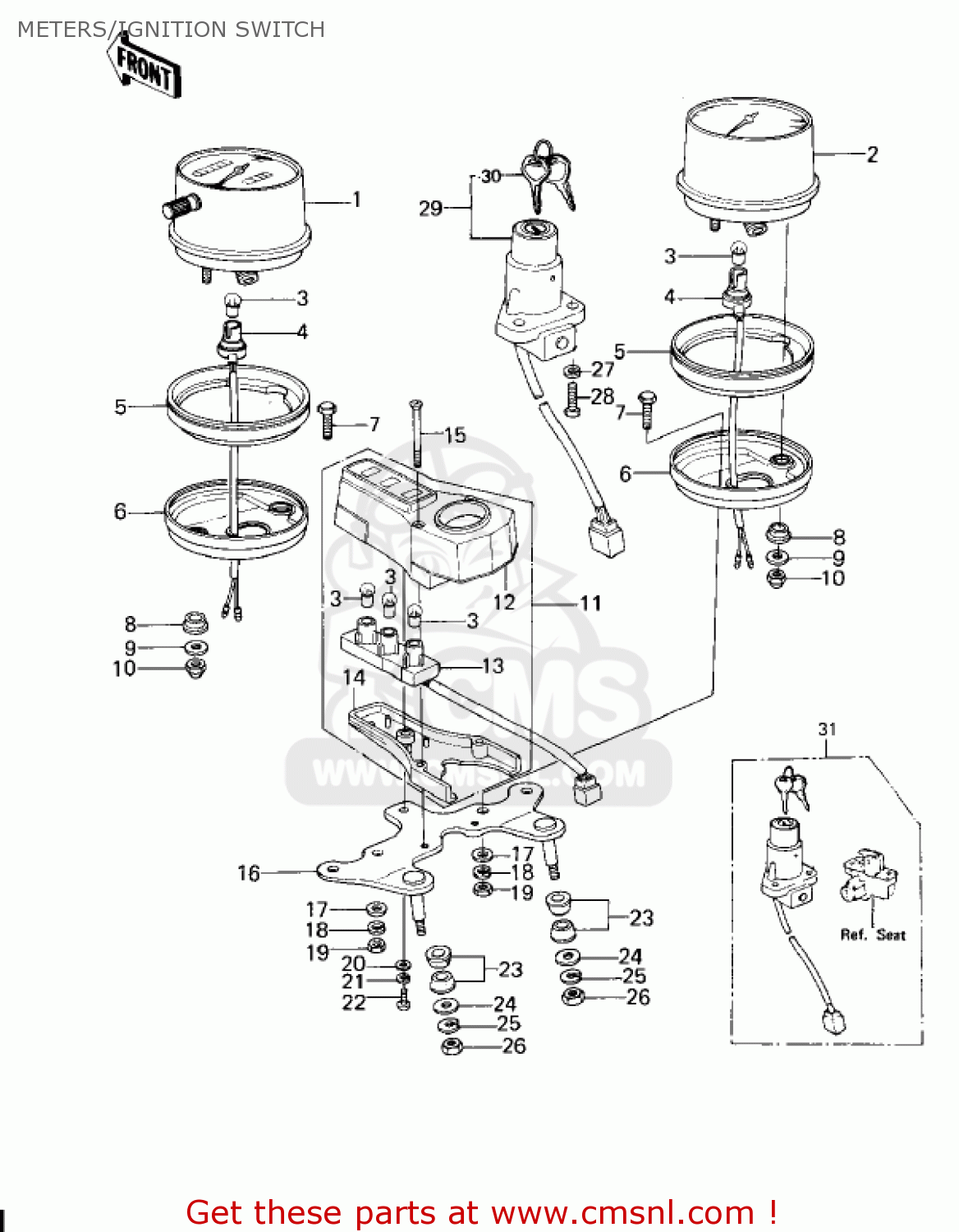

METERS/IGNITION SWITCH

ref

part #

description

quantity

1

25006072
ref: 1
KZ200-A1/A1A

SPEEDOMETER ASSY, MPH

€ 227.50

1

250051038
ref: 1
KZ200-A1/A1A

SPEEDOMETER ASSY,MPH

€ 227.50

1

250051038
ref: 1
KZ200-A2

SPEEDOMETER ASSY,MPH

€ 227.50

1

25006080
ref: 1

SPEEDOMETER ASSY,KPH

€ 289.00

1

250051025
ref: 1

SPEEDOMETER ASSY,KPH

€ 289.00

2

25016031
ref: 2

TACHOMETER ASSY

€ 149.00

2

250151016
ref: 2

TACHOMETER ASSY

€ 149.00

3

92069018
ref: 3

BULB 12V 3W

€ 4.00

4

25010022
ref: 4

SOCKET-ASSY,METER

€ 16.50

5

25019031
ref: 5

DAMPER,METER

€ 9.50

6

25012025
ref: 6

COVER,METER

€ 27.50

7

92003204
ref: 7

BOLT

€ 3.00

8

25019013
ref: 8

DAMPER,METER

€ 3.50

9

411B0600
ref: 9

WASHER-PLAIN,6MM

€ 0.50

10

322N0500
ref: 10

NUT-CAP,5MM

€ 2.00

11

23016022
ref: 11

LAMP ASSY, PILOT

€ 49.00

12

25023017
ref: 12

COVER,INDICATOR LIGHT

€ 16.50

13

25011056
ref: 13

SOCKET ASSY,INDICATOR

€ 11.00

14

25024008
ref: 14

COVER, METER BRAKET

€ 9.00

15

92012005
ref: 15

SCREW, HEX HEAD

€ 2.00

16

25008051
ref: 16

BRACKET, METER

€ 26.50

17

411B0600
ref: 17

WASHER-PLAIN,6MM

€ 0.50

18

461K0600
ref: 18

WASHER-SPRING

€ 0.50

19

92015078
ref: 19

NUT

€ 2.50

20

410B0400
ref: 20

WASHER-PLAIN-SMALL,4M

€ 0.50

21

461F0400
ref: 21

WASHER-SPRING,4MM

€ 0.50

22

220B0412
ref: 22

SCREW-PAN CROS 4X12

€ 0.50

23

92075248
ref: 23

DAMPER,METER BRACKET

€ 3.50

24

92022237
ref: 24

WASHER-PLAIN

€ 2.50

25

461F0600
ref: 25

WASHER-SPRING,6MM

€ 0.50

26

311B0600
ref: 26

NUT,6MM

€ 0.50

27

461F0600
ref: 27

WASHER-SPRING,6MM

€ 0.50

28

112G0616
ref: 28

BOLT UPSET,6X16

€ 1.00

29

270051031
ref: 29

SWITCH ASSY,IGNITION

€ 178.00

30

27008100201
ref: 30

KEY SET, # G01

€ 9.50

30

27008100235
ref: 30

KEY SET, # G35

€ 9.00

30

270081028
ref: 30

KEY-LOCK,BLANK

€ 12.00

30

270081029
ref: 30

KEY,BLANK

€ 7.50

30

270081034
ref: 30

KEY,BLANK

€ 13.00

30

270081035
ref: 30

KEY,BLANK

€ 12.50

31

270045055
ref: 31

LOCK ASSY

€ 84.00
