HEADLIGHT (KZ1100-D2)
KZ1100D1 SPECTRE 1982 USA CANADA

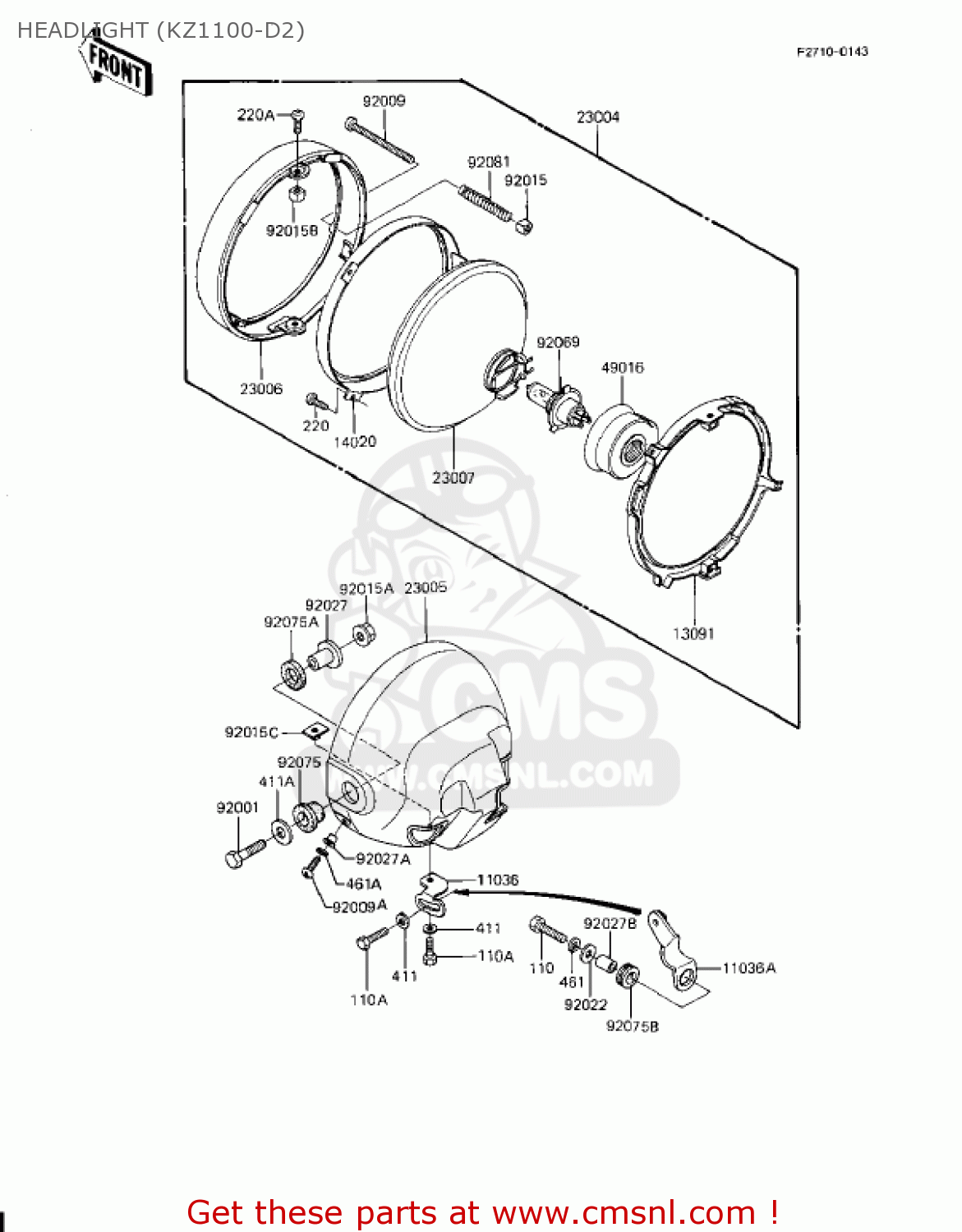

Headlight (kz1100-d2) diagram KZ1100D1 SPECTRE 1982 USA CANADA
HEADLIGHT (KZ1100-D2) KZ1100D1 SPECTRE 1982 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11036
110361649
ref: 11036
BRACKET-A,HEAD LAMP
€ 4.50
11036A
110361737
ref: 11036A
BRACKET-A,HEAD LAMP,B
€ 5.00
13091
130911160
ref: 13091
HOLDER,HEAD LAMP
€ 20.50
14020
140201018
ref: 14020
RETAINER,HEAD LAMP
€ 22.00
23004
230041082
ref: 23004
HEADLAMP
€ 232.50
23005
230051026H8
ref: 23005
BODY-COMP-HEAD LAMP,E
€ 69.50
23006
230061019
ref: 23006
RIM-LAMP,BRACK
€ 38.50
23007
230071009
ref: 23007
LENS UNIT, HEAD LAMP
€ 127.00
49016
490161016
ref: 49016
COVER-SEAL
€ 16.00
92001
920011405
ref: 92001
BOLT,8X38
€ 10.00
92009
920091033
ref: 92009
SCREW,FOCUS ADJUSTING
€ 3.50
92009A
920091693
ref: 92009A
SCREW,5X16
€ 2.50
92015
23020018
ref: 92015
NUT,4MM,FOCUS ADJUST
€ 3.00
92015A
920151014
ref: 92015A
NUT,8MM
€ 0.50
92015B
920151157
ref: 92015B
NUT,5MM
€ 3.50
92015C
920151231
ref: 92015C
NUT,6MM,HEAD LAMP
€ 6.50
92022
92022125
ref: 92022
WASHER,6.5X20X1.6
€ 1.00
92027
920271131
ref: 92027
COLLAR,HEAD LAMP FITT
€ 6.00
92027A
920271503
ref: 92027A
COLLAR,HEAD LAMP,BLAC
€ 2.50
92027B
92027162
ref: 92027B
COLLAR-REAR FENDER
€ 4.50
92069
920691002
ref: 92069
BULB,12V-60155W
€ 15.00
92075
920751109
ref: 92075
DAMPER,HEAD LAMP FITT
€ 4.00
92075A
920751110
ref: 92075A
DAMPER,HEAD LAMP FITT
€ 3.00
92075B
92075209
ref: 92075B
DAMPER RUBBER
€ 3.00
92081
23014005
ref: 92081
SPRING-FOCUS ADJUST
€ 2.50
110
112G0625
ref: 110
BOLT-UPSET,6X25
€ 4.00
110A
112C0614
ref: 110A
BOLT,6X14,BLACK
€ 3.00
220
220B0308
ref: 220
SCREW-PAN-CROS
€ 0.50
220A
220B0510
ref: 220A
SCREW-PAN-CROS,5X10
€ 0.50
411
411F0600
ref: 411
WASHER-PLAIN,6MM,BLAC
€ 0.50
411A
411D0800
ref: 411A
WASHER,PLAIN,8MM
€ 2.00
461
461F0600
ref: 461
WASHER-SPRING,6MM
€ 0.50
461A
461K0500
ref: 461A
WASHER-SPRING,5MM,BLA
€ 0.50
