CLUTCH
KZ1100D1 SPECTRE 1982 USA CANADA

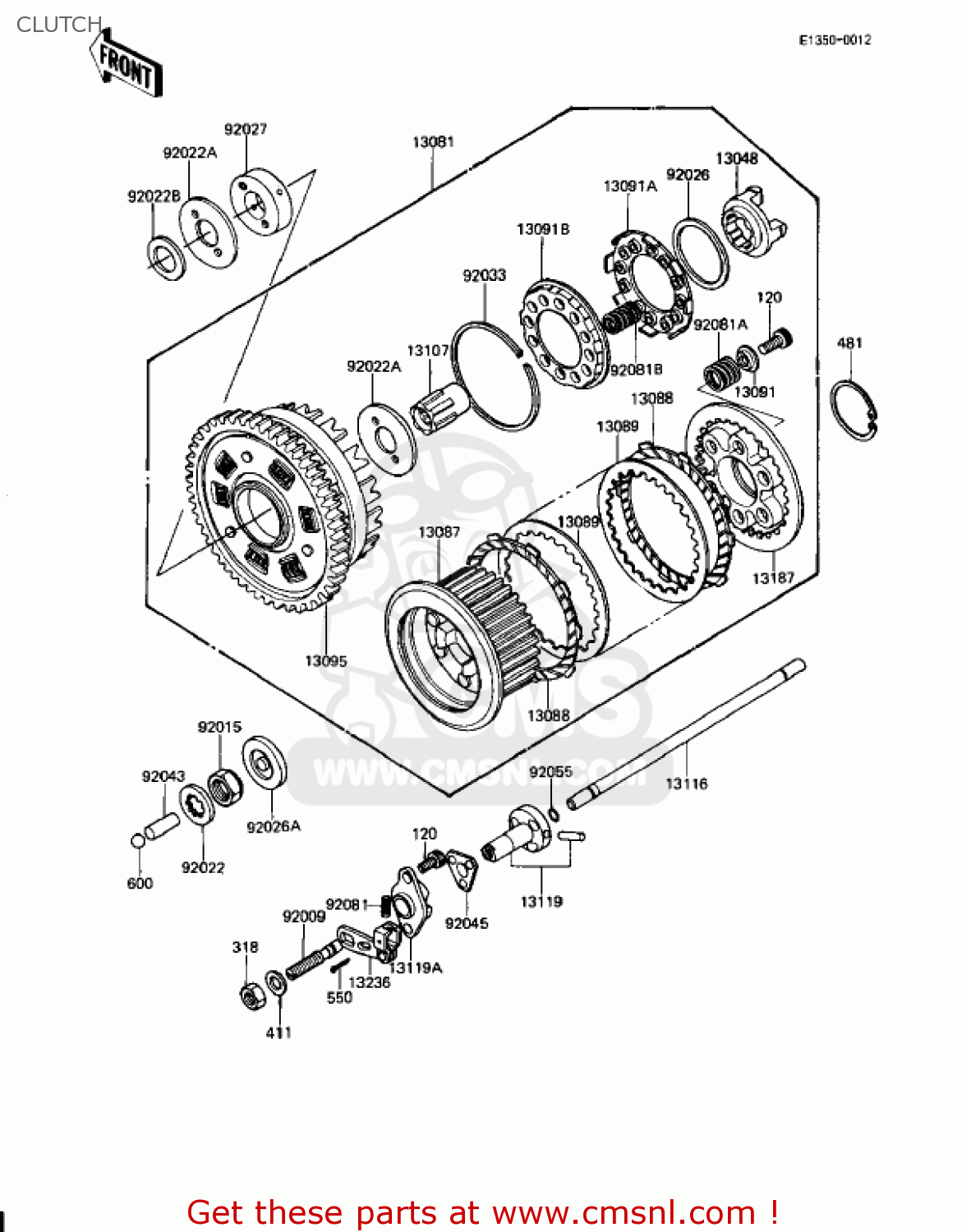

Clutch diagram KZ1100D1 SPECTRE 1982 USA CANADA
CLUTCH KZ1100D1 SPECTRE 1982 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
13048
130481007
ref: 13048
CAM-DAMPER
€ 61.50
13081
130811063
ref: 13081
CLUTCH-ASSY
€ 420.00
13087
130871009
ref: 13087
HUB-CLUTCH
€ 155.50
13088
130881013
ref: 13088
PLATE-FRICTION (NAS)
€ 12.50
13089
130891004
ref: 13089
PLATE,CLUTCH STEEL (NAS)
€ 6.50
13091
130911041
ref: 13091
HOLDER CLUTCH SPRING
€ 8.50
13091A
130911042
ref: 13091A
HOLDER,DAMPER SPRING,
€ 16.50
13091B
130911043
ref: 13091B
HOLDER,DAMPER SPRING,
€ 16.50
13095
130951037
ref: 13095
HOUSING-COMP-CLUTCH
€ 515.00
13107
131071024
ref: 13107
SHAFT,CLUTCH
€ 60.50
13116
131161007
ref: 13116
ROD-PUSH,CLUTCH,8X270
€ 27.00
13119
131191007
ref: 13119
CAM-RELEASE,CLUTCH,IN
€ 38.50
13119A
131191008
ref: 13119A
CAM-RELEASE,CLUTCH,OU
€ 34.50
13187
131871004
ref: 13187
PLATE-CLUTCH OPERATIN (NAS)
€ 49.00
13236
132361012
ref: 13236
LEVER ASSY,CLUTCH REL
€ 4.50
92009
920091052
ref: 92009
SCREW,CLUTCH RELEASE
€ 9.50
92015
920151555
ref: 92015
NUT,20MM
€ 9.00
92022
920221114
ref: 92022
WASHER,TOOTHED,25X40X
€ 10.50
92022A
920221221
ref: 92022A
WASHER,CLUTCH THRUST
€ 10.50
92022B
920221223
ref: 92022B
WASHER,25.3X36X2.5
€ 5.50
92026
920261043
ref: 92026
SPACER,3.5X59X70
€ 19.00
92026A
920261065
ref: 92026A
SPACER,CLUTCH
€ 34.00
92027
920271284
ref: 92027
COLLAR,25X57X16.1
€ 67.00
92033
920331029
ref: 92033
RING-SNAP
€ 9.50
92043
920431051
ref: 92043
PIN,PUSH ROD
€ 4.50
92045
920451023
ref: 92045
BEARING-BALL,CLUTCH R
€ 8.00
92055
670B1505
ref: 92055
O RING,5MM
€ 1.00
92081
92081069
ref: 92081
SPRING-CLUTCH RELEASE
€ 4.50
92081A
920811114
ref: 92081A
SPRING,CLUTCH
€ 4.50
92081B
920811115
ref: 92081B
SPRING,CLUTCH DAMPER
€ 4.50
120
120S0616
ref: 120
BOLT-SOCKET,6X16
€ 1.00
318
318B0800
ref: 318
NUT,8MM
€ 0.50
411
411B0800
ref: 411
WASHER-PLAIN,8MM
€ 0.50
481
481J5000
ref: 481
CIRCLIP,50M/M
€ 3.50
550
550D1615
ref: 550
PIN-COTTER,1.6X15
€ 1.50
600
600A1200
ref: 600
BALL-STEEL,3/8
€ 0.50
