FRONT FORK (KZ1100-D2)
KZ1100D1 SPECTRE 1982 USA CANADA

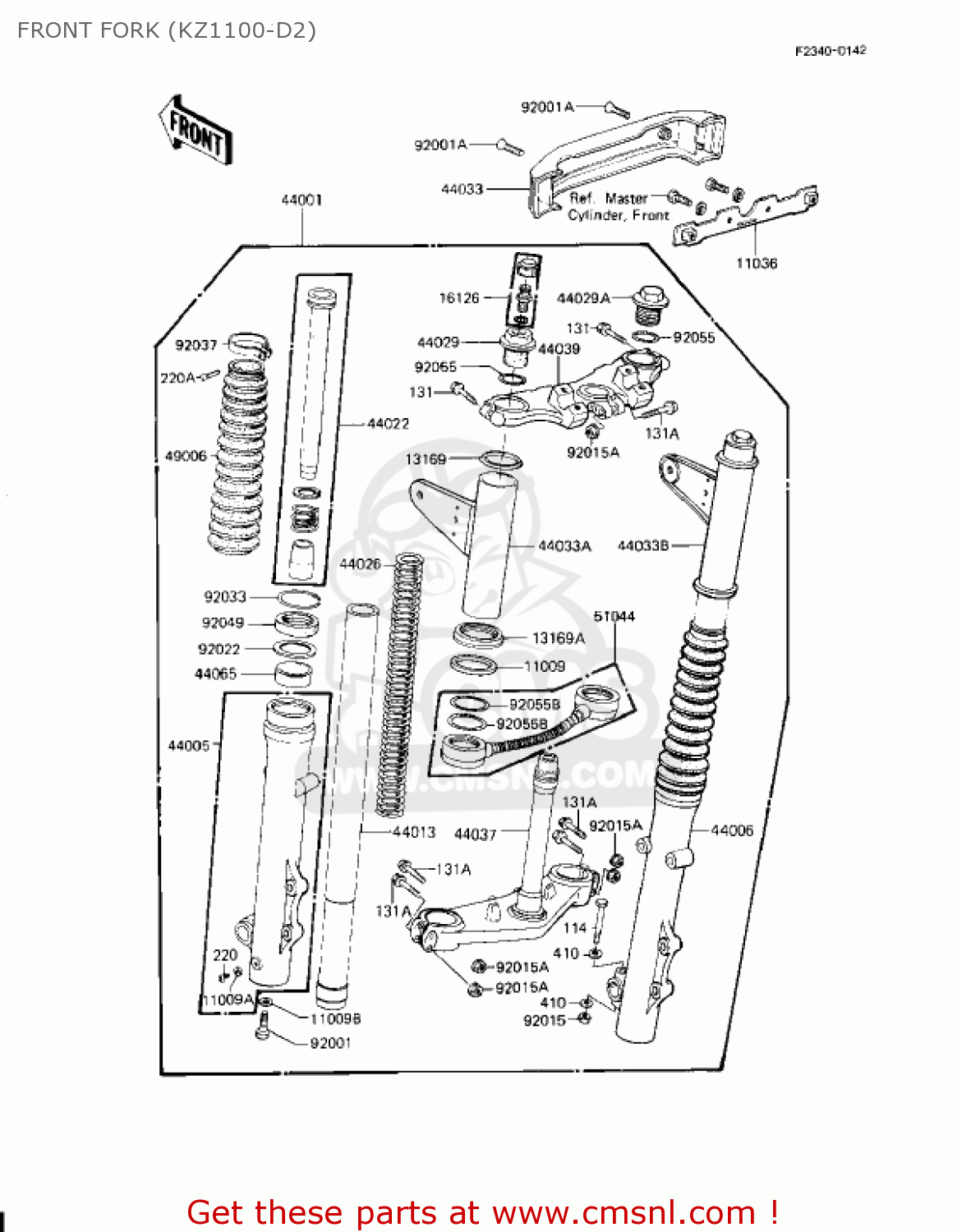

Front fork (kz1100-d2) diagram KZ1100D1 SPECTRE 1982 USA CANADA
FRONT FORK (KZ1100-D2) KZ1100D1 SPECTRE 1982 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
110091015
ref: 11009
GASKET,FORK COVER (NAS)
€ 7.00
11009A
44045002
ref: 11009A
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
11009B
44045057
ref: 11009B
GASKET (NAS)
€ 3.00
11036
110361320
ref: 11036
BRACKET-A,FORK COVER
€ 19.00
13169
131691498
ref: 13169
PLATE,FORK COVER,UPP
€ 3.50
13169A
131691499
ref: 13169A
PLATE,FORK COVER,LWR
€ 4.50
16126
161261052
ref: 16126
VALVE,AIR
€ 22.00
44001
440011406
ref: 44001
FRONT FORK
€ 949.00
44005
440051089
ref: 44005
PIPE-LEFT FORK OUTER
€ 203.50
44006
440061089
ref: 44006
PIPE-RIGHT FORK OUTER
€ 206.00
44013
440131106
ref: 44013
PIPE-FORK INNER
€ 143.00
44022
440221045
ref: 44022
CYLINDER-FORK
€ 67.50
44026
440261180
ref: 44026
SPRING-FRONT FORK
€ 36.00
44029
440291044
ref: 44029
SEAT-FORK SPRING,LH
€ 33.00
44029A
440291045
ref: 44029A
SEAT-FORK SPRING,RH
€ 32.50
44033
440331084
ref: 44033
COVER-FORK
€ 28.00
44033A
440331113
ref: 44033A
FORK COVER,LH
€ 60.50
44033B
440331114
ref: 44033B
FORK COVER,RH
€ 60.50
44037
440371081
ref: 44037
FORK HOLDER,UNDER
€ 329.00
44039
440391069
ref: 44039
HOLDER-FORK UPPER
€ 130.00
44065
440651091
ref: 44065
BUSHING-FRONT FORK,OU
€ 17.00
49006
490061079
ref: 49006
BOOT,FORK,BLACK
€ 65.00
51044
510441024
ref: 51044
TUBE-ASSY,AIR,FORK
€ 73.00
92001
44041040
ref: 92001
BOLT-FORK CYLINDER
€ 4.50
92001A
222C0518
ref: 92001A
SCREW-CSK-RD-CROS
€ 2.50
92015
920151124
ref: 92015
NUT,LOCK,8MM
€ 3.50
92015A
920151408
ref: 92015A
NUT,FLANGED,8MM
€ 1.00
92022
920221262
ref: 92022
WASHER,FORK OUTER PIP
€ 5.50
92033
920331047
ref: 92033
SNAP RING,FORK OUTER
€ 4.00
92037
920371321
ref: 92037
CLAMP,BOOT,BLACK
€ 6.50
92049
920491066
ref: 92049
SEAL-OIL,FRONT FORK
€ 18.50
92055
920551051
ref: 92055
ORING,FORK TOP CAP
€ 3.50
92055A
920551369
ref: 92055A
RING-O,ROD
€ 6.50
114
114G0855
ref: 114
BOLT,HEX HEAD,8X55
€ 4.50
131
131J0845
ref: 131
BOLT-FLANGED,8X45,BLA
€ 5.50
131A
131J0855
ref: 131A
BOLT-FLANGED,8X55,BLA
€ 2.50
220
220B0408
ref: 220
SCREW-PAN-CROS
€ 0.50
220A
220C0420
ref: 220A
SCREW-PAN-CROS,4X20
€ 0.50
410
410B0800
ref: 410
WASHER-PLAIN-SMALL,8M
€ 0.50
